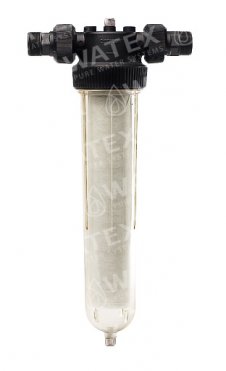

CINTROPUR NW32 veefilter (1 1/4'')

Tootja: CINTROPUR
Toote kood: FWCCNW320
Kombinatsiooni pole olemas
76.71
93.59

The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water.

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Main advantages:

  • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
  • filtration practically without accumulation
  • low pressure drop
  • high and constant flow rate
  • wide choice of filtering fineness ranging from 5 to 300 microns
  • sealing guaranteed thanks to the O-ring system
  • fast and easy rinsing thanks to the drain cock
  • long lifetime and uninterrupted spare parts supply
  • reduced need for maintenance
Kuva täielik kirjeldus

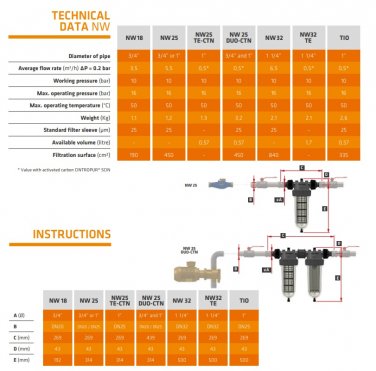

Technical data

Connection diameter

1 1/4 "

Average flow rate  (m3/st)

6,5

Maximum operating temperature (to C)

50o

Weight (Kg)

1,7

Standard filter element fineness (µ)

25

Standard filter element fineness (cm2)

840

Filtration area (bar)

10-16

Laius cm

Kõrgus cm

Pikkus cm

Kaal kg

16.00

15.00

58.00

2.50

Kuva täielik kirjeldus

By clicking on the following link, you can view and download the following:

CINTROPUR_NW18_25_32-brochure

CINTROPUR_NW18_25_32_Instructions-for-ssembly-use-and-maintenance
