WATEX WRO200 pöördosmoosi süsteem

Tootja: WATEX
Toote kood: WRO0200
Kombinatsiooni pole olemas

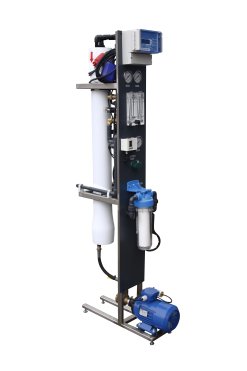

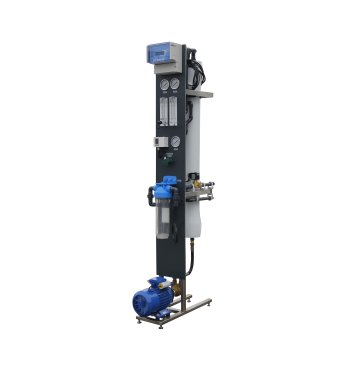

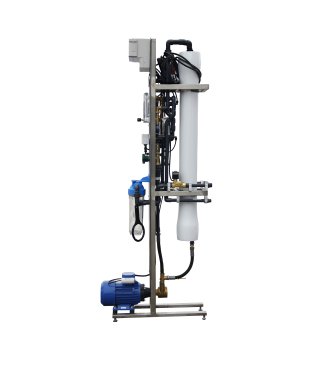

WATEX WRO200 reverse osmosis system
Advantages: extra compact, high quality performance, competitive price

Reverse osmosis system for brackish water with flow rate 200-250 liters/hour.
WATEX WRO series reverse osmosis systems are used for low mineralised water (up to 4000 ppm) with different flow rates.

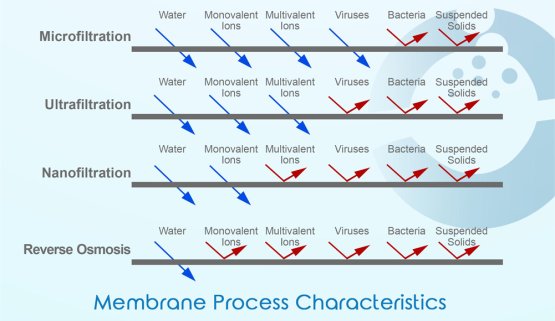

Reverse osmosis system purify water from 99.2% of salts, pyrogenic substances and microorganisms.
Permeate quality and flow rate depends on intake water salt concentration, temperature, applied pressure, membrane selection and pretreatment.

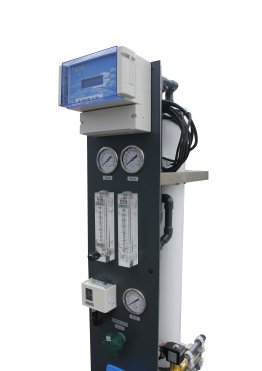

Quality and operation control system:

  • On-line conductivity meter 0-500 microS/cm
  • Inlet water low pressure switch and alarm

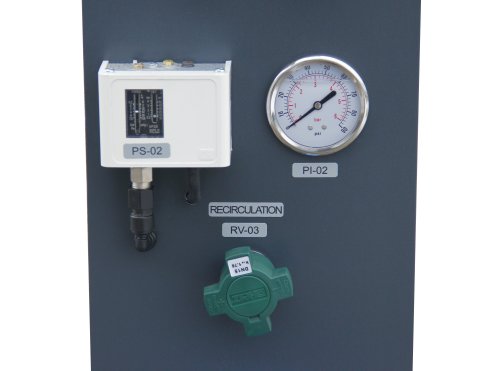

  • Permeate high pressure switch
  • Pressure indicators (inlet, after pump, concentrate)

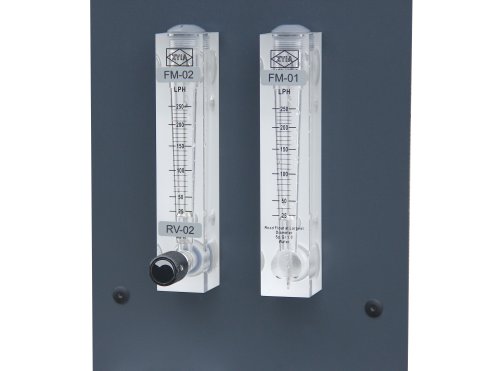

  • Permeate flow meter
  • Concentrate drain flow regulation
  • Pump pressure regulation valve
  • Water leakage alarm and shut-off
  • High conductivity alarm
  • Automatic/manual flushing system
  • Recirculation/recovery regulation

Notes:

  • Data based on following parameters: 1500 mg/l NaCl solution at 10 bars, 25 oC, Salt rejection 99.2%, SDI<3 brackish and low-mineralized water
  • Pretreatment required: sediment filtration, iron removal, softening or antiscalant dosing, adsorption by activated carbon if chlorine presence
  • Clean water reservoir minimum 200 liters required after reverse osmosis system

Optional features

  • Antiscalant dosing system
  • PLC operating controller
  • Temperature switch
  • Stainless steel pipes and fittings (AISI304, AISI316)
  • Pretreatment built-in
  • Dry-run protection of the reverse osmosis pump

To receive quotation, please fill RO order form watex_wro_order_form.pdf and send it to: info@watex.eu







Kuva täielik kirjeldus

Technical parameters

 Unit

Model

WATEX WRO200

Flow rate * Qnom

liters/hour

200-250

Flow rate * Qmax

liters/day

4800

Recovery max

%

70

Operating pressure max

bar

15

System size (Length x Width x Height)

cm

50 x 20 x 160

Power consumption

W

550

Membrane element model&quantity



CSM RE4040-BLN x 1

Water - drain connection

inches

            3/4'', 1/2'', 1/2''

Weight

kg

40

System frame

Stainless steel AISI304

High pressure pump

MWG

Quality control

Electrical conductivity, alarm system

Control system

Pressure switches, manometers, flow meters, regulating valve

Piping system

PVC-U fittings and piping PN16

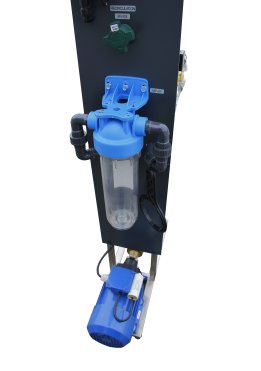

Inlet filter

 PP 5 micron cartridge



* Permeate (purified water) productivity and quality depends on water temperature, water pressure, membrane model and water pre-treatment

Laius cm

Kõrgus cm

Pikkus cm

Kaal kg

50.00

160.00

20.00

40.00
