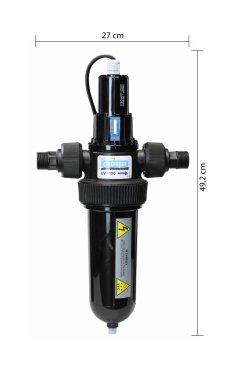

Cintropur 4100 (40W) Ultraviolettseadmed

Cintropur 4100 UV-sterilization, 3/4" + 1"

Thanks to its simplicity and efficiency, water sterilization by UV radiation has developed extensively in the recent years. UV radiation at 253.7 nm is part of the solar radiation, and is reproduced artificially. UV radiation thus produced is of much greater intensity than sunlight – therefore suitable for water sterilization. This particular disinfection method is known as one demolishing legionella, microbes, bacteria, viruses and protozoa, while having no negative impacts on the environment.

This is the ideal method to remove micro-organisms from water, and thus make it potable in terms of bacteriology. Water treated in this way cannot be regarded as of drinking quality unlessits chemical properties are compliant to relevant standards.

Applications – ORIGINS OF WATER
Rainwater: UV-sterilization of rainwater will allow for a wider range of application and safe use Drilling water, boreholes: UV-sterilization of well water will prevent any pathogenic contamination

Tap water: UV-sterilization of tap water will ensure premium quality water satisfying even the highest demands

Spring water, surface water: UV-sterilization of such waters will provide constant water quality in terms of bacteriology

Water stored in tanks (in caravans, boats, etc.): UV-sterilization will preserve the healthiness of water kept in tanks

Areas of use:

• Residential baths and showers
• Food preparation jobs
• American refrigerators
• Chilled water fountains
• Aquariums
• Rinsing food
• Provision of livestock, e.g. chickens, rabbits, ducks, etc., with drinking water
• containing no pathogenic micro-organisms

Advantages:

• Easy installation and use
• 100% physical disinfection by means of UV sterilization
• Natural treatment of water without adding chemicals – thus eliminating the risk of overdosing
• No unpleasant tastes or odours in the water
• Proven effectiveness against micro-organisms imposing hazard on human health
• No toxic by-products will develop
• Reduced need for maintenance

CINTROPUR counts off its UV advantages:

• More compact than any other UV-device
• A built-in flow reducer guarantees optimal treatment
• A practical maintenance chart for an easier maintenance process
• Each component of premium quality
• Professional construction
• Efficient treatment confirmed by biodosimetry tests
• Capacity range: 1 to 10 m³/h
• Equipment : basic or full option available
• Possibility of combining UV + mechanical filter and activated carbon

Maximum support

• Special wall bracket at the back of the head (stainless steel version)
• All UV 2100 and similar types (DUO-UV & TRIO-UV) are equipped as standard with a black bell (to avoid the propagation of the UV waves downwards)
• Special draining screw made of PVDF (UV-resistant) to reflect the light of the UV lamp (proof that the lamp is working)

Easy to use

• When handling the device to replace the lamp, rotating the UV by only 5°will be enough to remove the UV lamp and replace it with a new one

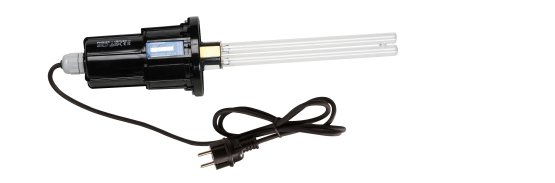

UV-Lamp (once a year)

Your UV-sterilizer will not function efficiently unless the lamp is replaced once a year. After one year of use, the fact that the lamp is lighting in blue does not mean that your device is functioning efficiently.
