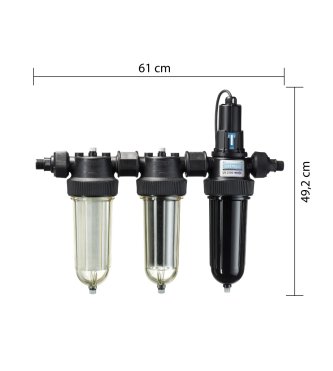

Cintropur TRIO-UV (25W) Ultraviolettseadmed

The filter system Cintropur TRIO UV (25W), 3/4 "+ 1" (Filtration, cleaning & sterilization) is characterized by an ideal combination of mechanical filter and UV sterilization and is particularly well suited for food and drinking water applications as it is made entirely from synthetic material of first class Quality products.

Applications – ORIGINS OF WATER
Rainwater: UV-sterilization of rainwater will allow for a wider range of application and safe use Drilling water, boreholes: UV-sterilization of well water will prevent any pathogenic contamination

Tap water: UV-sterilization of tap water will ensure premium quality water satisfying even the highest demands

Spring water, surface water: UV-sterilization of such waters will provide constant water quality in terms of bacteriology

Water stored in tanks (in caravans, boats, etc.): UV-sterilization will preserve the healthiness of water kept in tanks

1 Step - Filtration

Made entirely from top quality synthetic material, CINTROPUR filters are ideal for use with food products and drinking water. The CINTROPUR vane changes the liquid flow using centrifugal motion, forcing the larger particles down into the lower bowl, depending on the chosen filter sleeve micron-size.

The CINTROPUR centrifuge converts the incoming water into a vortex and hurls the "heavy" particles into the lower part of the filter bell so that the filter cuff retains only the fine suspended particles, depending on the choice of filter fineness.

This protective filter is placed ideally at the entrance of the installation in order to protect the entire apparatus behind it. Pre-filtration prior to each UV treatment: Always recommended so that the UV irradiation is optimal and not affected by suspended particles.

By means of the vortex, which is generated by a centrifugal propeller, the coarse particles arrive at the bottom of the vessel, where a fine filtration takes place via a sieve, which can be adjusted to 5 to 25 µ as required, so that no more particles in the water hover.

Applications

Household: Protection of sanitary networks supplied with domestic water, rainwater or well water. Filtration of water before softener, reverse osmosis or treatment by ultraviolet

Industry: Protection of sanitary networks, machine tools and all industrial machinery for water treatment. Filtration of water before high pressure cleaning machines (100 to 200 bar / 1500 to 3000 psi) and very high pressure cleaning machines (1500 to 2500 bar / 21000 to 35000 psi)

Agriculture: Filtration of watering (spraying) installations; Filtration of water for animals; Filtration of rainwater and well water

Technical specifications

2 Step - Cleans

Water treatment by activated carbon to improve taste, remove odors as well as substantial. Elimination of chlorine, ozone, organic substances, pesticides and other substances which are dissolved in the water.

CINTROPUR SCIN Activated carbon

The high number of pores and the large contact surface make this activated carbon an excellent choice for improving taste, removing odors, decreasing the chlorine content, ozone and impurities such as pesticides and other organic substances in the water.


3 Step - UV- Sterilization

Cintropur 2100 UV-sterilization

Thanks to its simplicity and efficiency, water sterilization by UV radiation has developed extensively in the recent years. UV radiation at 253.7 nm is part of the solar radiation, and is reproduced artificially. UV radiation thus produced is of much greater intensity than sunlight – therefore suitable for water sterilization. This particular disinfection method is known as one demolishing legionella, microbes, bacteria, viruses and protozoa, while having no negative impacts on the environment.

This is the ideal method to remove micro-organisms from water, and thus make it potable in terms of bacteriology. Water treated in this way cannot be regarded as of drinking quality unlessits chemical properties are compliant to relevant standards.

Areas of use

Advantages

Technical specifications
