Ecotar B is intended for water treatment to remove dissolved iron, manganese, and hardness salts along with insignificant content of organic substances. It is recommended for the treatment of water from artesian wells. Visual evaluation of the initial water: initially transparent water gets yellow in the course of standing and forms a brown precipitate.
Technical specifications:
|
Media exchange capacity, mg-ekv/l |
1200 |
|
Working flow rate m/h |
10-20 |
|
pH range |
0-14 |
|
Bed height, mm, not less |
500 |
|
Free volume in column for media expansion at baskwash, % |
40 |
|
Flow rate at backwash, m/h |
6-10 |
|
Flow rate at brine cycle, m/h |
2-4 |
|
Flow rate at rinse, m/h |
10-20 |
|
Regenerating agent |
NaCl |
|
NaCl consumption, g/l resin |
100-150 |
Recomennded conditions for resins:
|
Limitations
|
Ecotar B |
|
Turbidity, max. ppm |
3 |
|
Iron*, max. ppm |
15 |
|
Manganese, max. ppm |
2 |
|
Hardness, max. mg-ekv/l |
12 |
|
Permanganate oxidizability, max. Mg O2/l |
3 |
|
Free chlorine, max. ppm |
0.1 |
|
Total salinity, max. mg/l |
2000 |
|
Hydrogen sulfide |
absence |
Advantages:

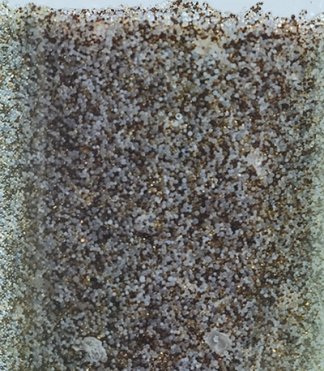

Main properties of resins
|
Bulk weight, kg/l |
0.84-0.98 |
|
Particle size range, mm |
0.25-5.0 |
|
Moisture content, % |
45-70 |
|

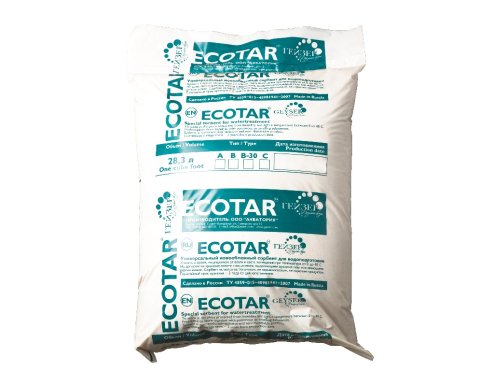

Package, liters |
28.3 |
