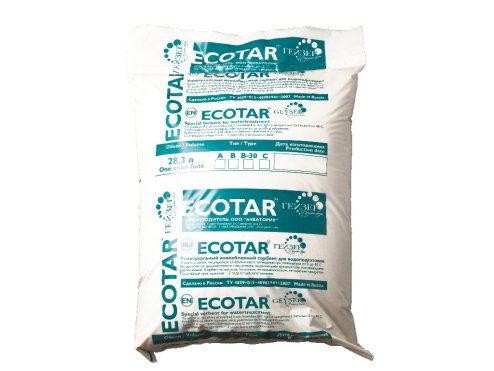

Ecotar-C is intended for the treatment of water with high content of natural organic substances, organic iron, and manganese. It is recommended for the treatment of water from low-depth bore wells, draw wells, and open water reservoirs. Visual evaluation of the initial water: the water color is from yellow to brown, and the precipitate is not formed.
Technical specifications:
Media exchange capacity, mg-ekv/l |
600 |
Working flow rate m/h |
10-20 |
pH range |
0-14 |
Bed height, mm, not less |
500 |
Free volume in column for media expansion at baskwash, % |
40 |
Flow rate at backwash, m/h |
6-10 |
Flow rate at brine cycle, m/h |
2-4 |
Flow rate at rinse, m/h |
10-20 |
Regenerating agent |
NaCl |
NaCl consumption, g/l resin |
100-150 |
Recomennded conditions for resins:
Limitations |
Ecotar C |
Turbidity, max. ppm |
3 |
Iron*, max. ppm |
2 |
Manganese, max. ppm |
2 |
Hardness, max. mg-ekv/l |
12 |
Permanganate oxidizability, max. Mg O2/l |
20 |
Free chlorine, max. ppm |
0.1 |
Total salinity, max. mg/l |
2000 |
Hydrogen sulfide |
absence |

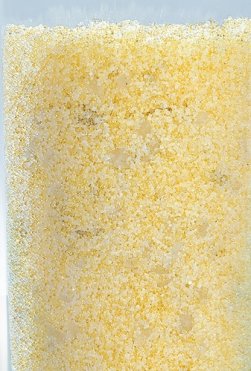

Main properties of resins
Bulk weight, kg/l |
0.84-0.98 |
Particle size range, mm |
0.25-5.0 |
Moisture content, % |
45-70 |
Package, liters |
28.3 |
Kaal kg |
---|
25.00 |
