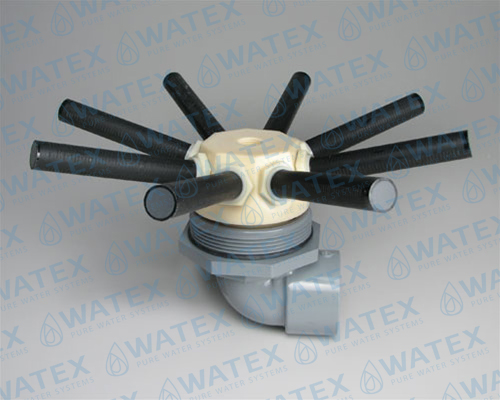

HY Tank Bottom Distributor (side mount) 36" D63mm
Tarneaeg: 2-5 tööpäeva
Clack hub and lateral distributor systems are designed specifically to fit into a 4” bottom mineral tank opening eliminating the need for a 6” bottom hole where a greater possibility of leaks exist. The hub and lateral series is designed for use in 14” - 36” diameter fi berglass mineral tanks. The hub and lateral series consist of an ABS hub, eight (8) PVC slotted laterals with 3⁄4” threaded adapters, 4”-8 adapter and 2” CPVC socket elbow. Installation is quick and simple with the use of a 1⁄2” blind socket molded right into the top of the hub. For installation, simply thread a long 1⁄2” rod into the 1⁄2” blind socket in the hub, extend through the top of the tank to the bottom and thread the laterals into the hub from the bottom of the tank. After installing the 4”-8 adapter and threading the 2”CPVC socket elbow into the hub, simply unthread the 1/2” rod.
Tank diameter: 36''
| Laius (cm) | Kõrgus (cm) | Pikkus (cm) | Kaal (kg) |
|---|---|---|---|
| 18 | 20 | 36 | 2.4 |
