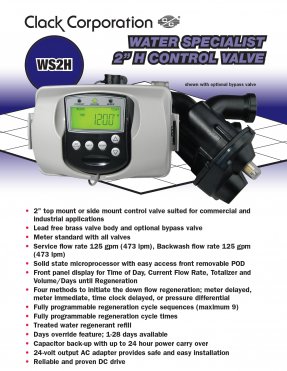

CLACK WS2H FILTER control valve (with meter)
Tarneaeg: 2-5 tööpäeva
2” top mount or side mount control valve suited for commercial and industrial applications
Epoxy coated lead free brass valve body
Service flow rate 125 gpm (473 lpm) (28.4 m3/h), Backwash flow rate 125 gpm (473 lpm) (28.4 m3/h)
Solid state microprocessor with easy access front removable POD
Four methods to initiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, or pressure differential
Pre or Post treated water regenerant refill
20-volt output AC adapter provides safe and easy installation
Inlet/Outlet (1): 2” Female NPT or BSPT/2.5” Groove Lock
Number of cycles: up to 9
Valve Material: lead free brass
Regeneration: downflow
Operating pressure (min/max): 20 - 125 psi (1.4 - 8.6 bar)
Operating temperature (min/max): 40º - 110º F (4C - 43C)
Electrical specification:
Supply Voltage: 230V AC
Supply Frequency: 50Hz
Output Voltage: 20V AC
Output Current: 750mA
Tank application:
Water Softener: 18’’-63’’ diameter
Water Filter (2): 18’’-48’’ diameter
| Laius (cm) | Kõrgus (cm) | Pikkus (cm) | Kaal (kg) |
|---|---|---|---|
| 45 | 35 | 40 | 13 |
