CLACK WS3 FILTER control valve (less meter)
Tarneaeg: 2-5 tööpäeva

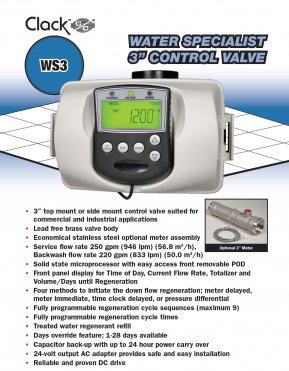

3” top mount or side mount control valve suited for commercial and industrial applications
Epoxy coated lead free brass valve body
Service flow rate 250 gpm (946 lpm) (56.8 m3/h), Backwash flow rate 220 gpm (833 lpm) (50.0 m3/h)
Front panel display for Time of Day, Current Flow Rate, Totalizer and Volume/Days until Regeneration
Four methods to initiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, aor pressure differential
Fully programmable regeneration cycle sequences (maximum 9)
Fully programmable regeneration cycle times
Pre or Post treated water regenerant refill
20-volt output AC adapter provides safe and easy installation

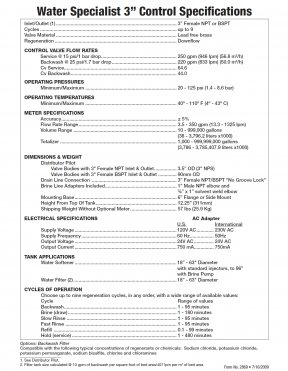

Inlet/Outlet (1): 3” Female NPT or BSPT
Number of cycles: up to 9
Valve Material: lead free brass
Regeneration: downflow
Operating pressure (min/max): 20 - 125 psi (1.4 - 8.6 bar)
Operating temperature (min/max): 40º - 110º F (4C - 43C)
Electrical specification:
Supply Voltage: 230V AC
Supply Frequency: 50Hz
Output Voltage: 20V AC
Output Current: 750mA
Tank application:
Water Softener: 18’’-63’’ diameter with standard injectors, to 96" with Brine Pump
Water Filter (2): 18’’-63’’ diameter
| Laius (cm) | Kõrgus (cm) | Pikkus (cm) | Kaal (kg) |
|---|---|---|---|
| 45 | 35 | 40 | 13 |
