WATEX CMB14 iron removal filter
Out of stock
Delivery time: 2-5 working days

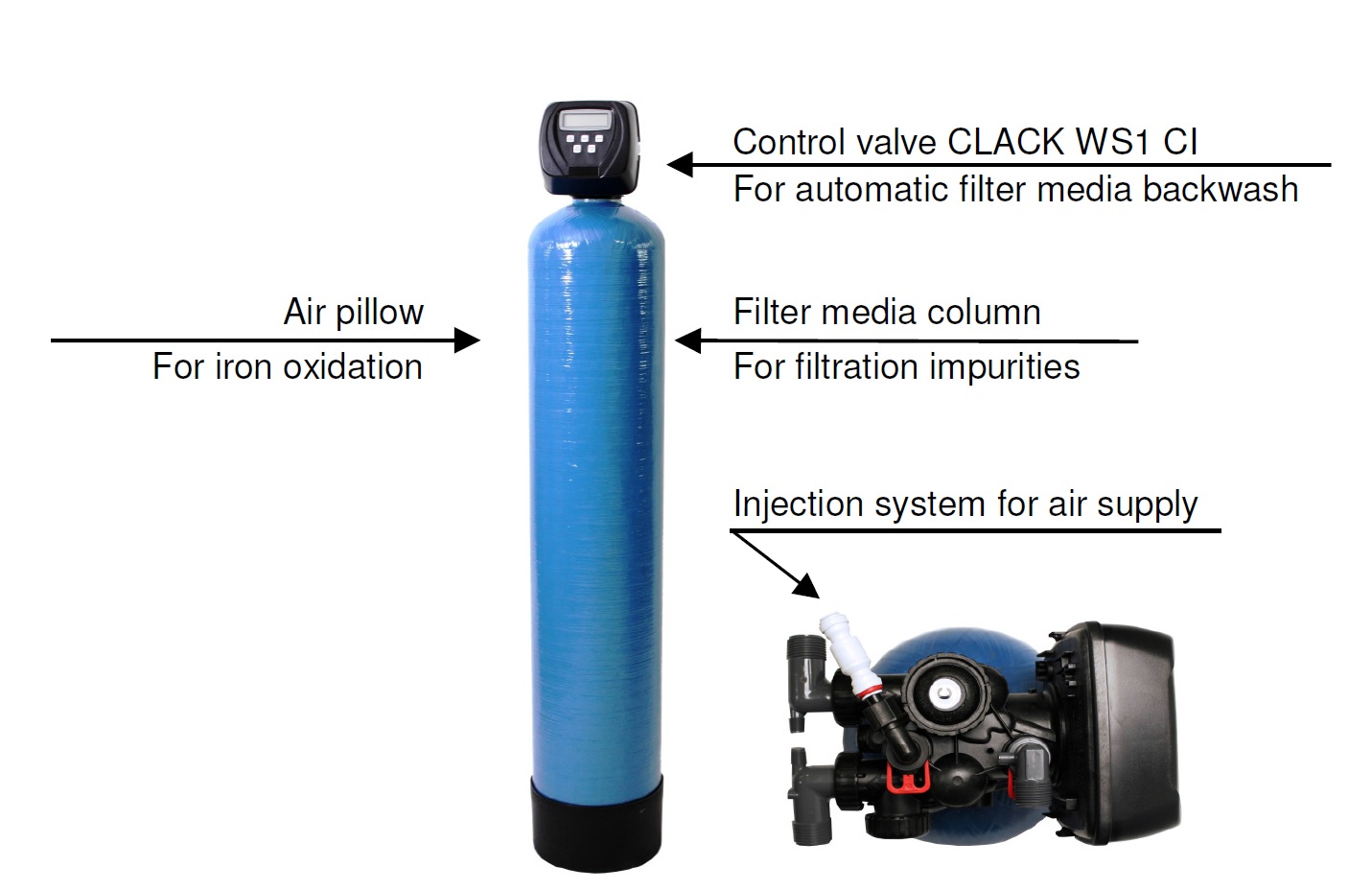

WATEX CMB14 is automatic water filter for water treatment that can filtrate iron, manganese, odour, turbidity and arsenic, without the use of any reagents. It is based on the oxidation and filtration method. WATEX CMB consists of filter tank, automatic control valve and filtration media. Due to air pillow in the tank, substances that are in water are oxidized and filtered. Filter need drain and electricity connection. Filter is designed for high flow rate and low pressure loss. Rinsing water can be directly discharged to biological wastewater treatment plant.
WATEX CMB14 water filter is also used as a pre-filter for softener or organic removal filter, especially if the water has a specific smell.
Main advantages:
- A simple solution for 5 problems - turbidity, iron (up to 3 mg/l), manganese, odour, arsenic
- Regeneration does not require reagents - no salt, no potassium permanganate (KMnO4)
- Effective working even at low pH and high content of organics
- Easy installation and operation
- Filter service life is more than 10 years
- Natural, environmentally friendly filtration process. Do not impair the water quality
- Automatic purification and regeneration
- High quality materials, components
- Apply for private houses, cottages, guesthouses, small apartment houses
<!--[if gte mso 9]>
Technical parameters of filter | Unit | WATEX CMB14 |
Flow rate Qnom | m3/h | 1.5 |
Flow rate Qmax | m3/h | 3.0 |

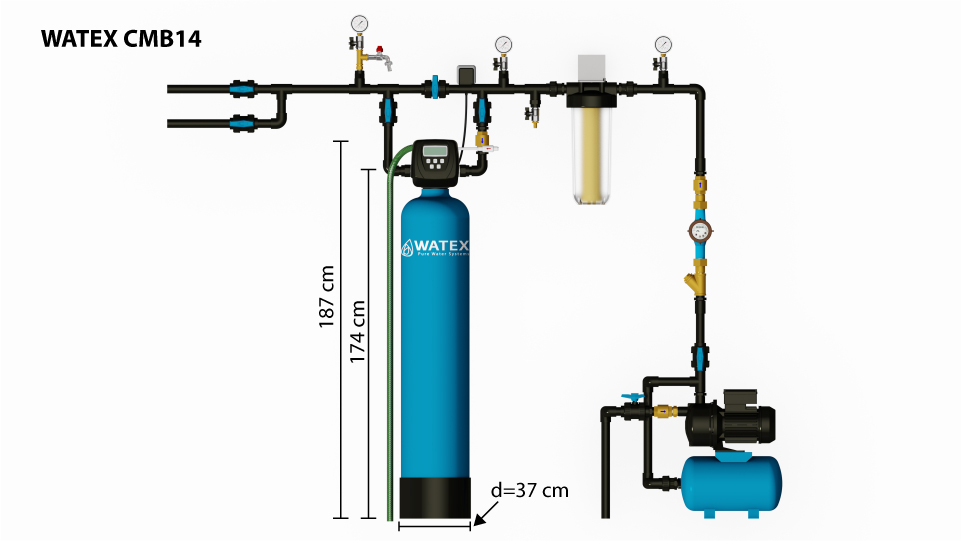

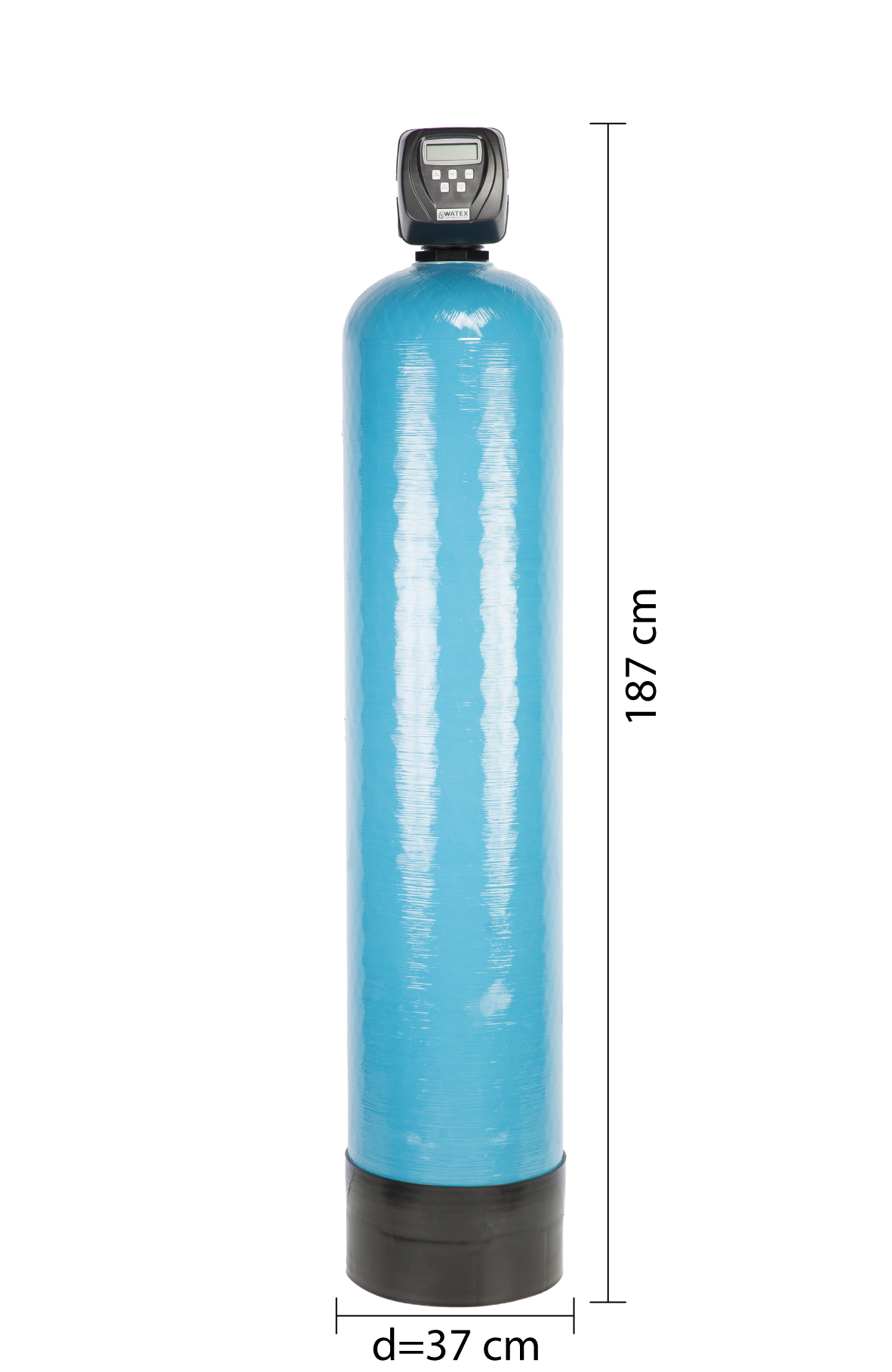

Diameter x height | mm | 370 x 1870 |
Weight (empty) | kg | 150 |
Water / drain connection | inches | 1”-1¼”/¾” |
Automatic control valve | Clack WSCl 1'' (USA) | |
Tank material | Composite material – inline PE with fiberglass outside coating | |
Filtration media | AquaMandix catalytic filtration media, quartz sand of various fractions | |
The amount of water for one regeneration | liters | ~400 |
Minimum flow rate for rinsing | m3/h | 3.0 |
liters/min | 50.0 | |
Electricity consumption | W | 10 |
Water filter operating restrictions:
Max. oxidized iron (Fe3+) content | 15000 μg/l |
Max. dissolved iron (Fe2+) content | 3000 μg/l |
Max. oxidized manganese (Mn2+) content | 100 μg/l |
Max. hydrogen sulphide (H2S) content | 5 mg/l |
pH for iron (Fe2+) removal | 6.8-9.0 |
pH for manganese (Mn2+) removal | 8.0-9.0 |
Organic, humus substances, ammonia, chlorine, hardness salts and other contaminants does not adversely affect the filter performance, but reduces the lifetime. | |
Requirements for normal work of water filter:
- Connection to drain
- Electricity connection 220 V, 1 phase
- Water pressure 2 - 6 bar
- Room temperature above 0° C
- Water temperature to 25° C
- Correct installation
Additional equipment options:
- Condensate isolation for tank
- By-pass valve – For easier assembly
- Repair and maintenance kit – Spanner wrench, injectors (2 pcs.)
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 40 | 185 | 40 | 165.3 |
By clicking on the following links, you can view and download the following:
Iron_removal_filter_WATEX_CMB10_technical_data_ENG.pdf
WATEX CMB aeration and filtration. First start-up
