Iron removal filter WATEX RCMB13x2
Out of stock
Delivery time: 2-5 working days
- A simple solution for 5 problems - turbidity, iron, manganese, odour, arsenic
- Regeneration does not require reagents - no salt, no potassium permanganate (KMnO4)
- Effective working even at low pH and high content of organics
- High filtration capacity
- Easy installation and operation
- Filter service life is more than 10 years
- Natural, environmentally friendly filtration process. Do not impair the water quality
- Automatic purification and regeneration
- High quality materials, components
- Applicable for private houses, cottages, guesthouses, farms
WATER QUALITY PROBLEM

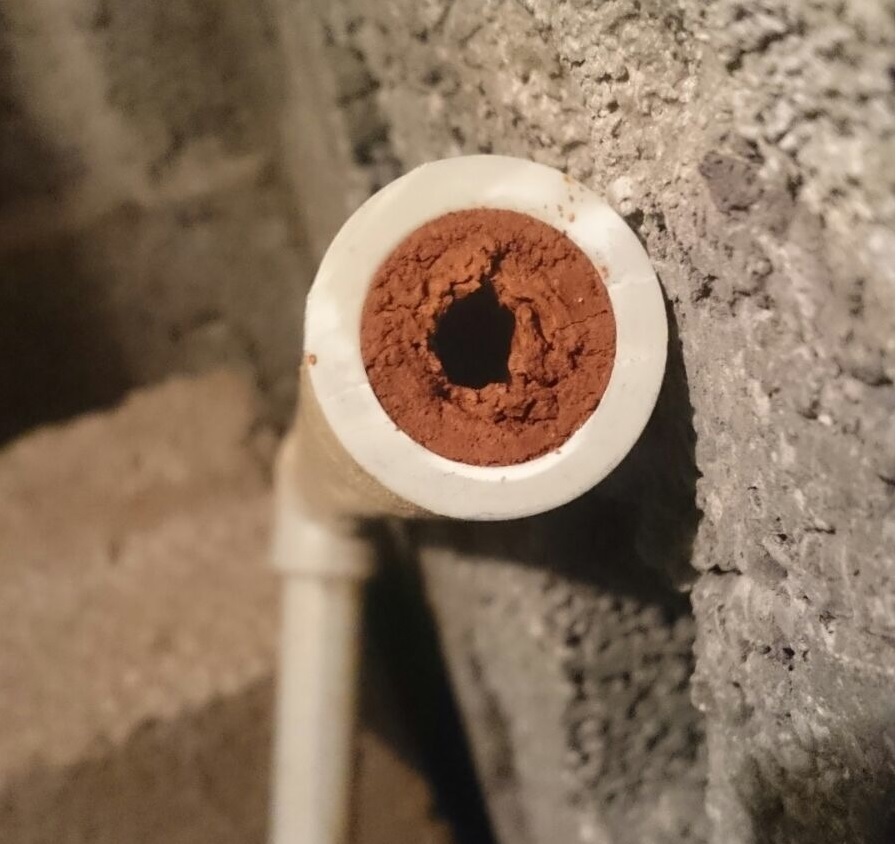

Iron and manganese often causes the main problem of the waterworks. When water gets in contacts with air, it changes the colour, turbidity increases and sediments appears. Water has a metallic taste. Water pipes are clogged and sanitation at the consumer becomes dirty.
APPLICATION
WATEX RCMBx2 series filters are designed to purify water from turbidity, iron, manganese and odor for villages, cities and industrial enterprises. Mainly it is used for groundwater purification.
OPERATING PRINCIPLE

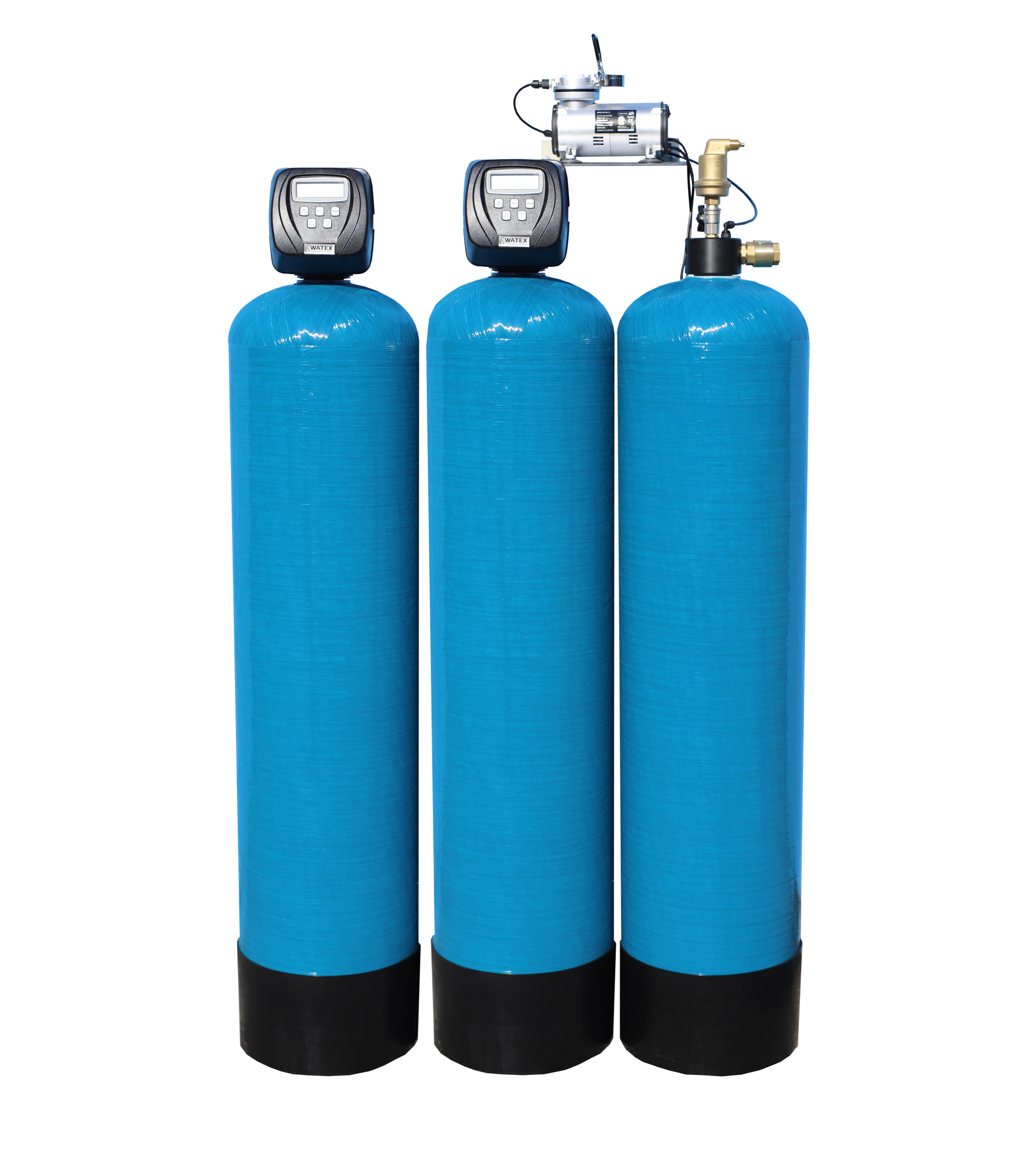

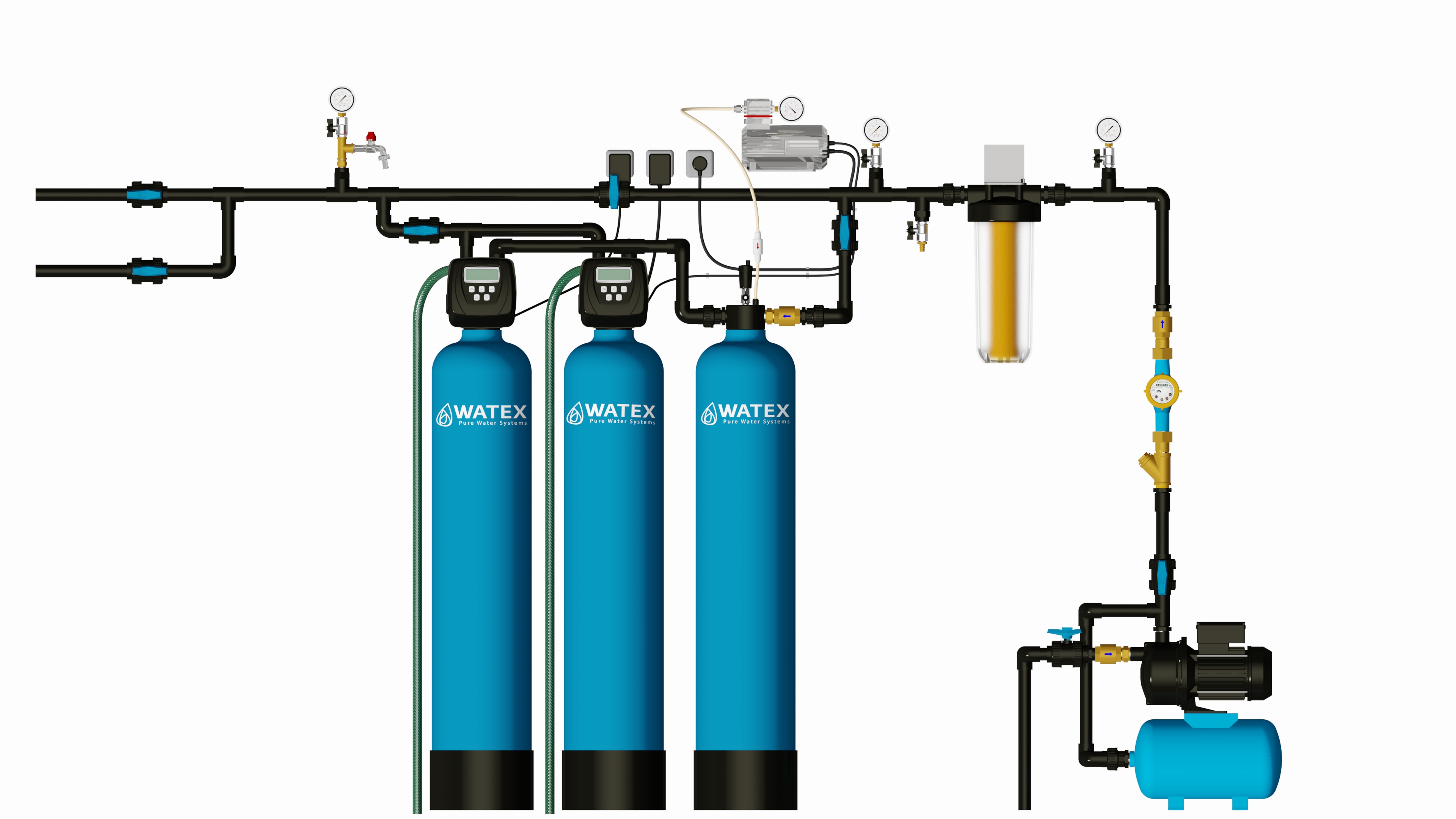

RCMBx2 filter operating principle is based on aeration and filtration. When water is aerated, iron, manganese and mechanical impurities form sediment, which can be filtered. Suspended solids are filtered through filtration media, which has been poured in to filter. Filters depending on pollution levels and water consumption have to be rinsed regularly. Filters after rinsing are regenerated and can purify water. Equipment consists from reactor, two filters and compressor.
Iekārtas tehniskie parametri | Mērvienība | Modelis | ||
RCMB10x2 | RCMB12x2 | RCMB13x2 | ||
Iekārtas ražība Qnom | m3/st | 1.1 | 1.6 | 2.0 |
Skalošanas ūdens daudzums | m3 | 0.11 | 0.13 | 0.17 |
Skalošanas minimālā intensitāte | m3/st | 1.6 | 2.0 | 2.6 |
Tvertnes izmērs (diametrs) | collas | 10 | 12 | 13 |
m | 0.25 | 0.30 | 0.33 | |
Tvertnes tilpums | litri | 64 | 85 | 110 |
Filtrējošā materiāla daudz. tvertnē | litri | 43 | 57 | 73 |

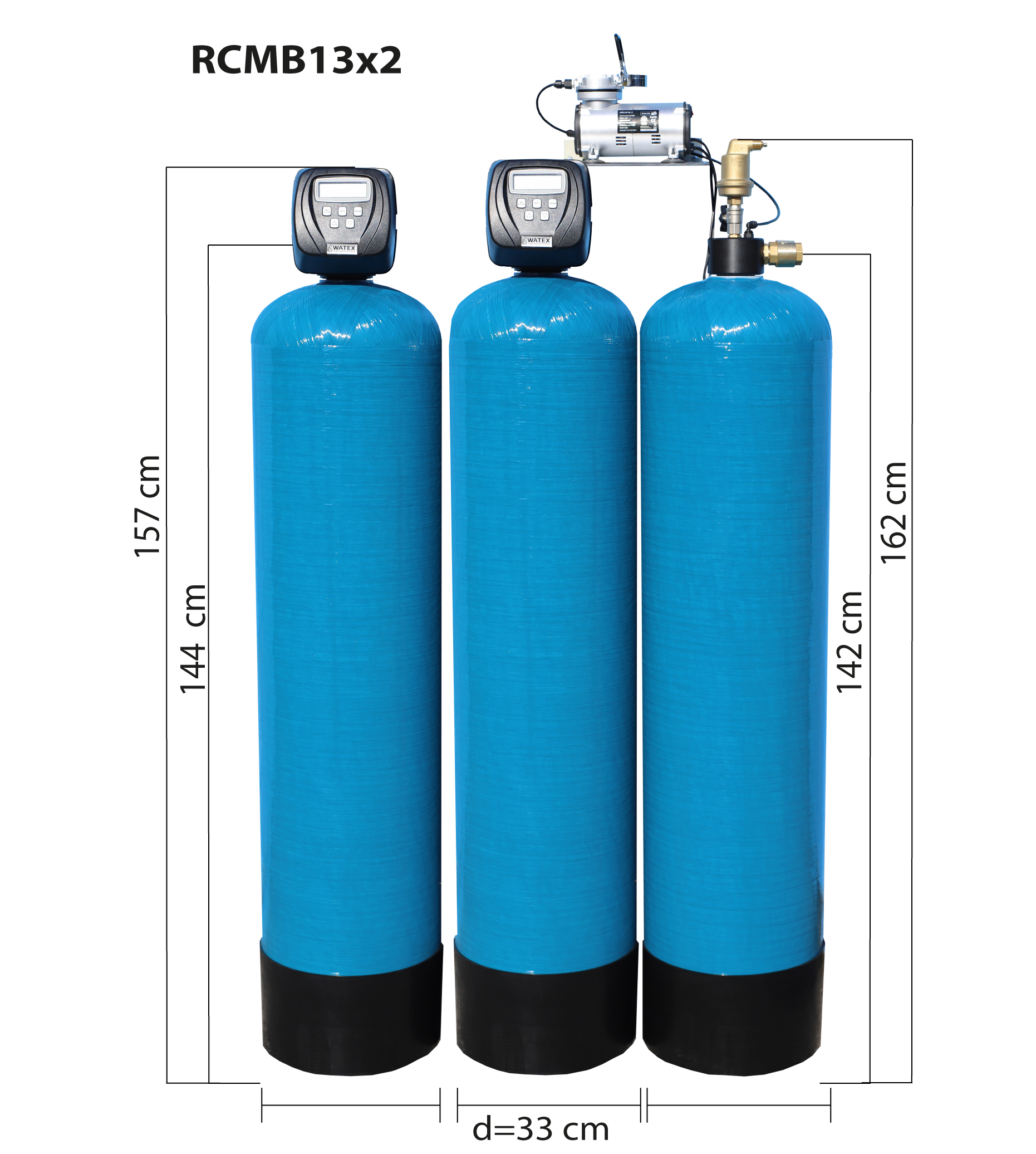

Iekārtas kopējais izmērs |
|
|
|
|
Garums (L) | m | 1.06 | 1.21 | 1.29 |
Platums (W) | m | 0.25 | 0.30 | 0.33 |
Augstums (H) | m | 1.53 | 1.48 | 1.53 |
Ūdens piesl. Iekš/ār/kan | collas | 1” | 1” | 1” |
Attīrīšanas iespējas |
| Dzelzs, mangāns, duļķainība, smaka, krāsainība | ||
Tvertnes materiāls |
| FRP (stiklašķiedras) | ||
Filtrējošais materiāls |
| AquaMandix, kvarca smiltis 0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm | ||
Darba spiediens | bar | 2-6 | ||
Elektropieslēgums |
| 220V, 50Hz, 1 fāze | ||
Elektropatēriņš | W | 3 W | ||
PRIEKŠNOSACĪJUMI
- Iekārtai nepieciešams kanalizācijas un elektrības pieslēgums 220V
- Ieejošais ūdens spiediens ar minimālo spiedienu 2.5 bar
- Telpas temperatūra virs 0o C
- Ūdens temperatūra līdz 25o C
- Pareizs sistēmas slēgums.<!--[if gte mso 9]>
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
Nospiežot uz sekojošajām saitēm, varat apskatīt un lejupielādēt:
Atdzelžošanas_filtrs_WATEX_RCMB10-16x2_tehniskie_dati_LV.pdf
Dzeramā_ūdens_attīrīšana_WATEX.pdf
Rokasgrāmata_WATEX_RCMB10-13x2_atdzelžošanas_filtri_LV.pdf
Video:
Atdzelžošanas filtrs WATEX RCMB. Filtra pirmā palaišana
