Manual flushing water filter ATLAS HYDRA HOT for hot water, 1'' connection
Product is in stock
Delivery time: 2-5 working days
ATLAS HYDRA RAH HOT - a modern solution for clean hot water!
Application: For filtering turbidity, oxidized iron, sand, scale deposits and clay particles.
The most characteristic features:
- application for hot water up to 80 oC
- easy to rinse
- purification degree 90 microns
- stainless steel cartridge AISI 316
- elements do not need to be changed
- maximum working pressure 8.6 bar
- high flow, low pressure losses

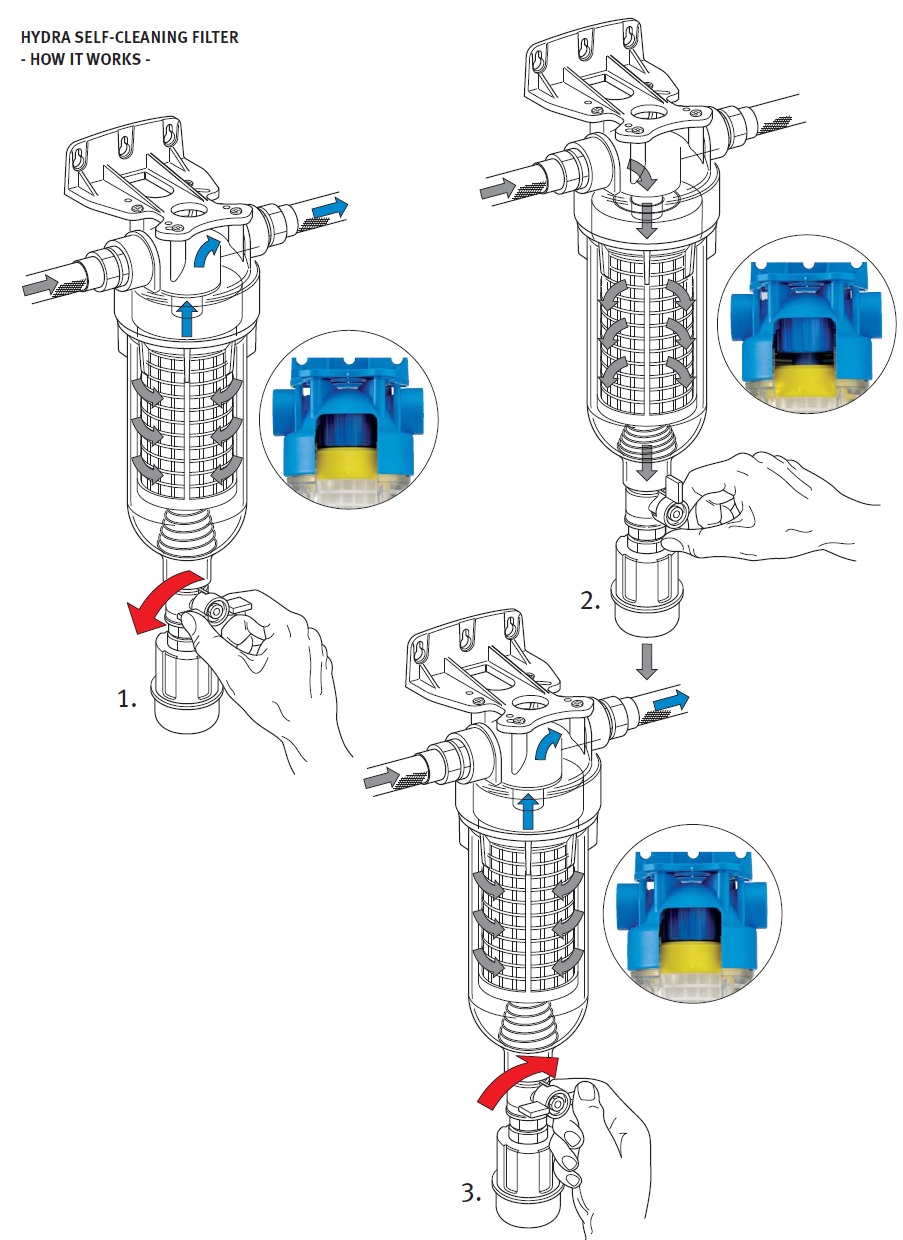

If the filter is clogged, open the bottom valve and flush out any sludge, sand and other deposits that have accumulated on the surface. The water is discharged directly into the sewer or in a separate container.
The filter should be flushed when pressure losses occur. It can be monitored with installed manometers before and after the filter.
Tehnilised parameetrid | Mõõtühik | Mudel |
Sisse-/väljavoolu ühendus | tolli | ¾'' / 1'' |
Kasseti tüüp |
| Roostevaba terasvõrk |
Filtreerimise täpsus | mikronit | 90 |
Maks. läbilaskevõime | l/h | 5300 / 6000 |

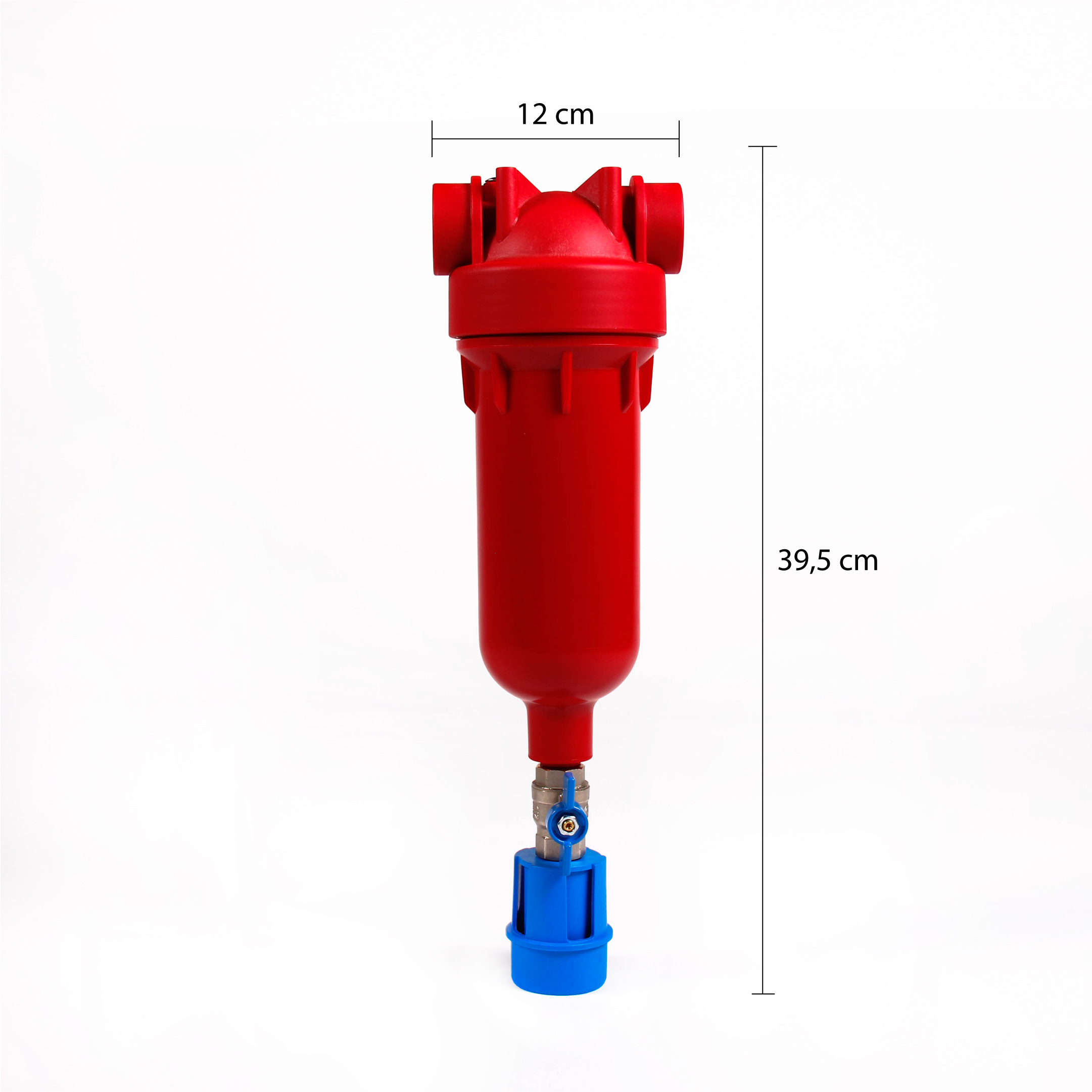

Laius | mm | 120 |
Kõrgus | mm | 390 |
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 14 | 15 | 34 | 1.3 |
This is a good choice!
