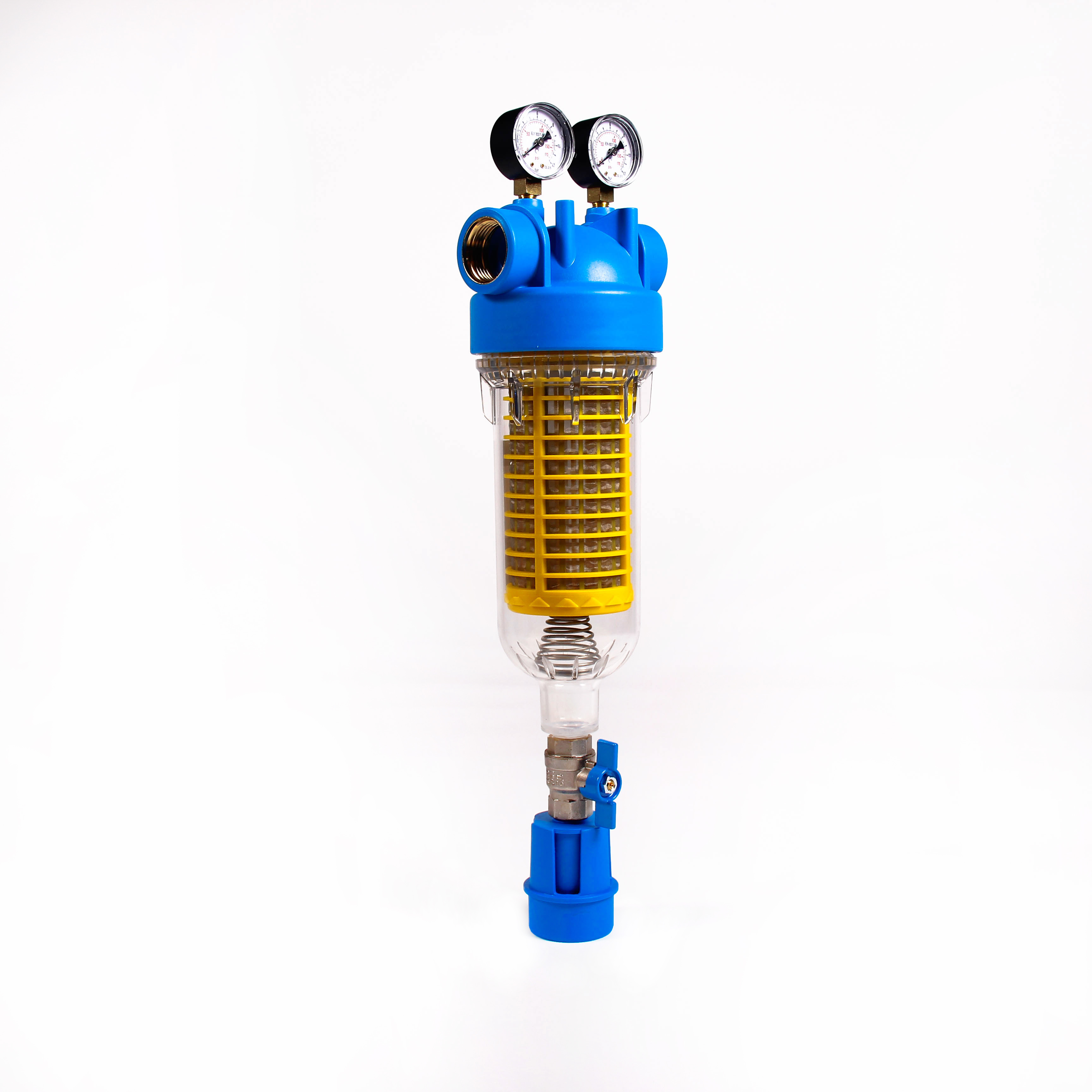

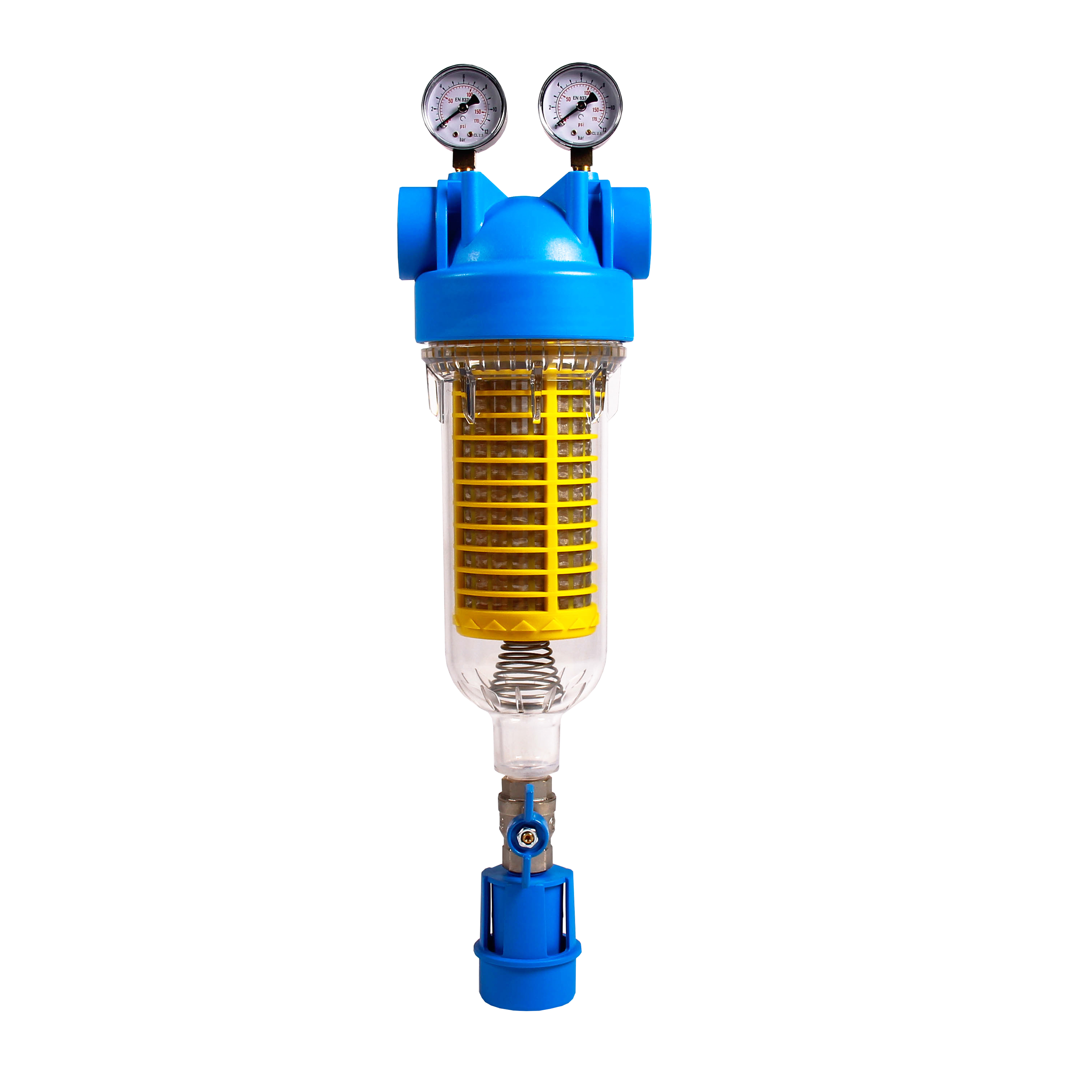

Manual flushing water filter ATLAS HYDRA RAH M with pressure gauges, 1'' connection
Product is in stock
Delivery time: 2-5 working days
ATLAS HYDRA RAH M - a modern solution for clean water!
Application: For filtering turbidity, oxidized iron, sand, scale deposits and clay particles.
The most characteristic features:
- equipped with manometers before and after filtration
- easy to rinse
- purification degree 90 microns
- stainless steel cartridge AISI 316
- cold water
- cartridge does not need to be changed
- high flow, low pressure losses
If the filter is clogged, open the bottom valve and flush out any sludge, sand and other deposits that have accumulated on the surface. The water is discharged directly into the sewer or in a separate container.
The filter is flushed when pressure losses occur. It can be monitored with installed manometers before and after the filter. The transparent housing makes it easy to assess the degree of contamination.
Technical parameters of equipment | Unit | Model | |
HYDRA ¾ RAH M
| HYDRA 1 RAH M | ||
IN/OUT connections | inches | ¾’’ | 1’’ |
Cartridge type |
| stainless steel net | |
Purification degree | micron | 90 | |
Max.flow rate | l/h | 5300 | 6000 |
Width | mm | 120 | |
Height | mm | 390 | |

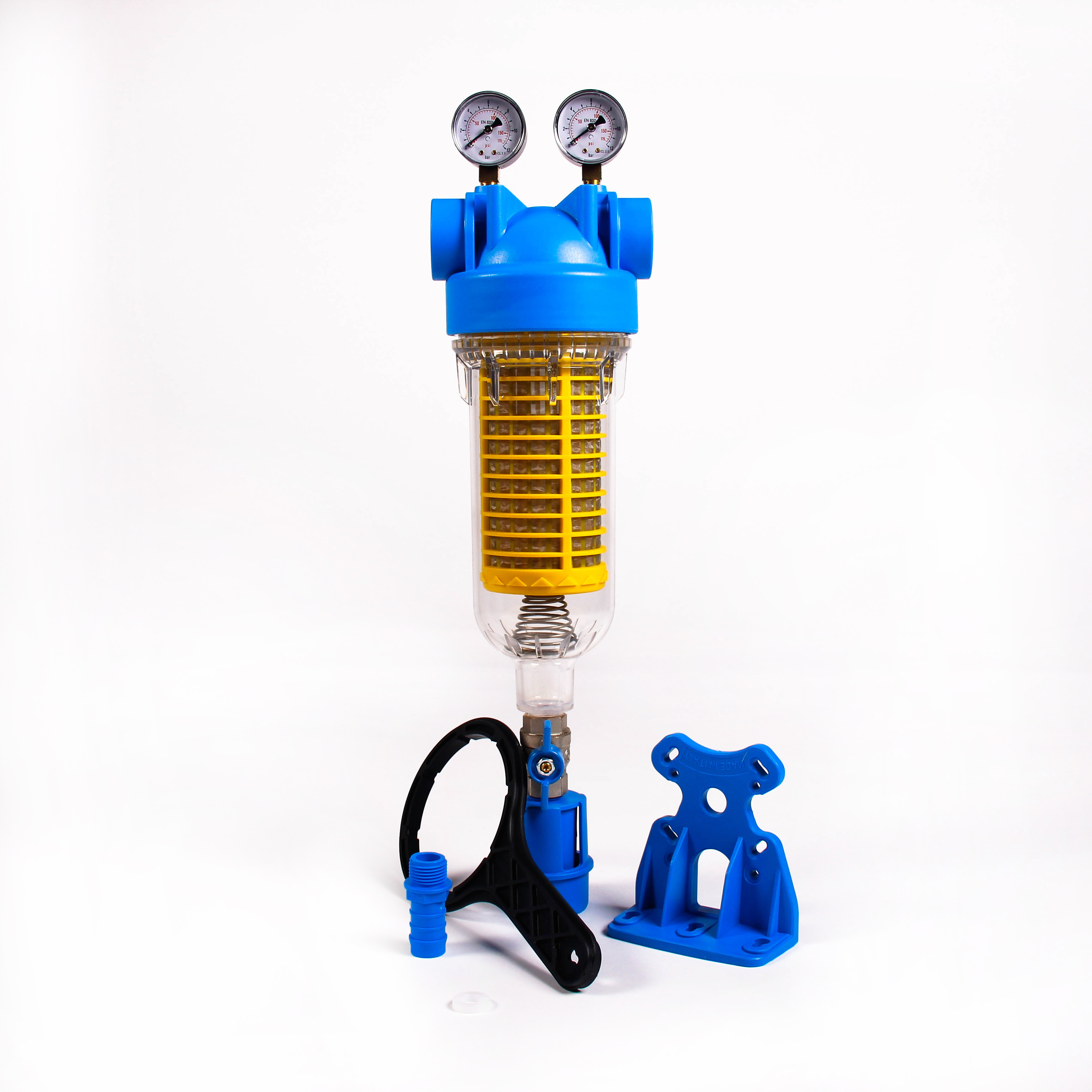

The set includes:
- Filter housing
- Filter element - ner. steel mesh 90 microns
- Wall mounting
- Valve for rinsing the element - 1/2’’
- Nipple for connecting a hose - 1/2’’
- Manometers, 2 pcs
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 14 | 15 | 34 | 1.3 |
y clicking on the following link, you can view and download the following:
ATLAS water filter HYDRA RAH M
