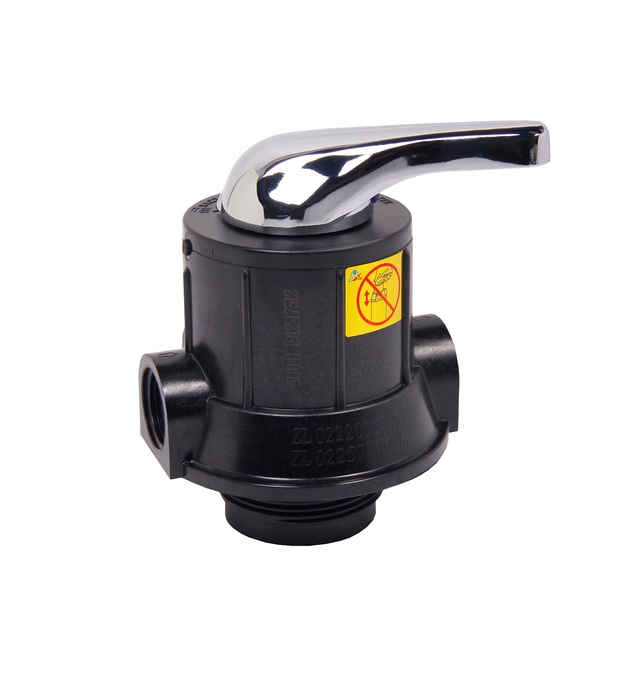

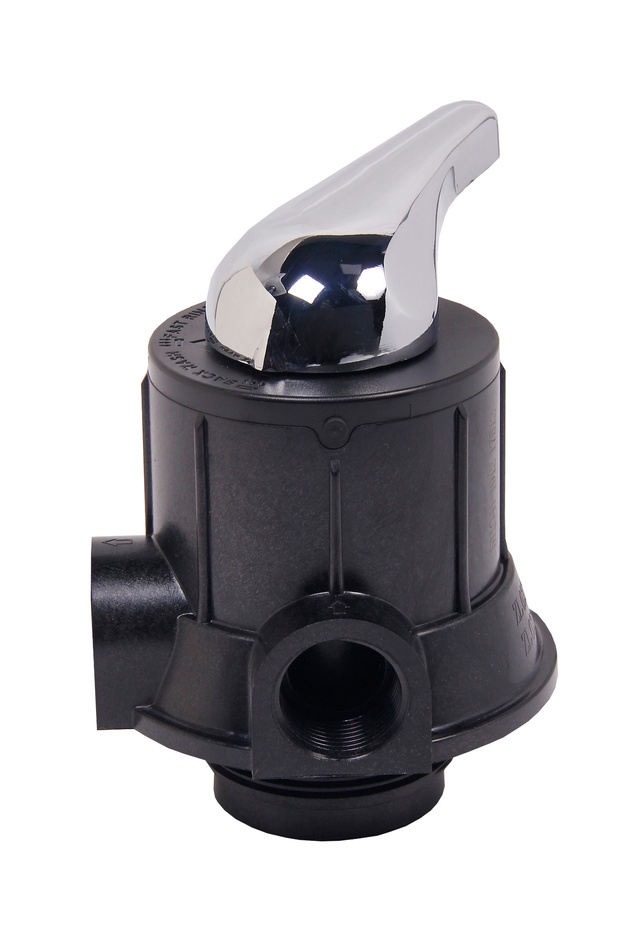

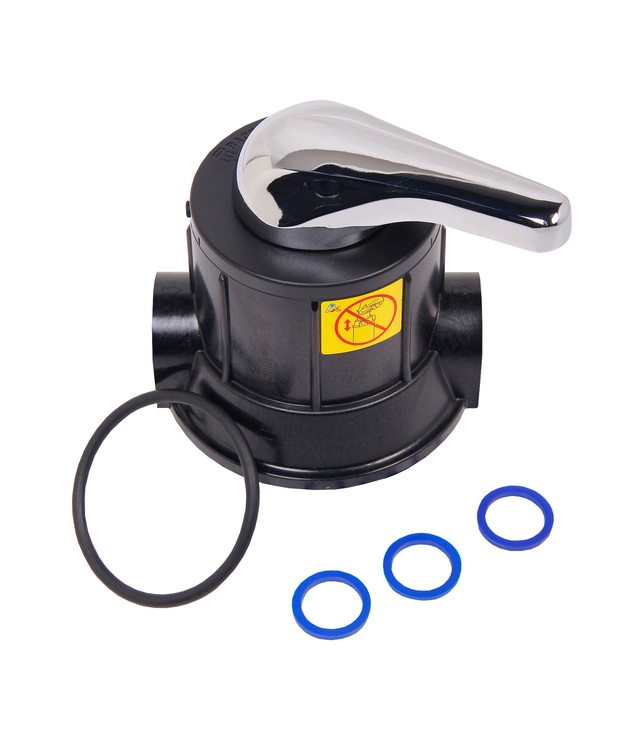

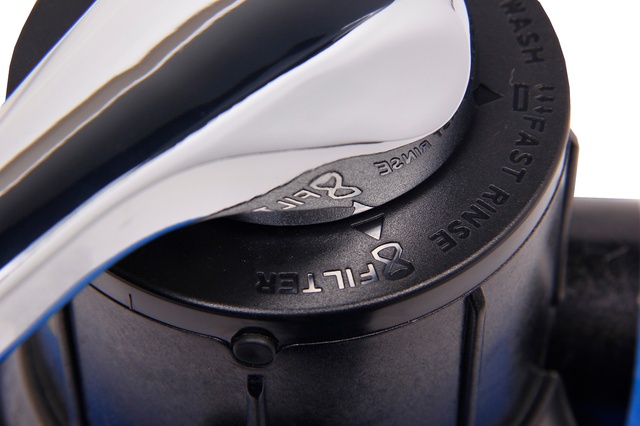

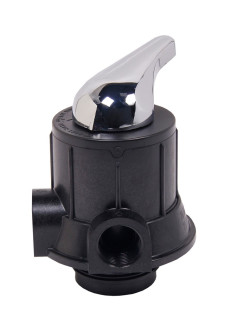

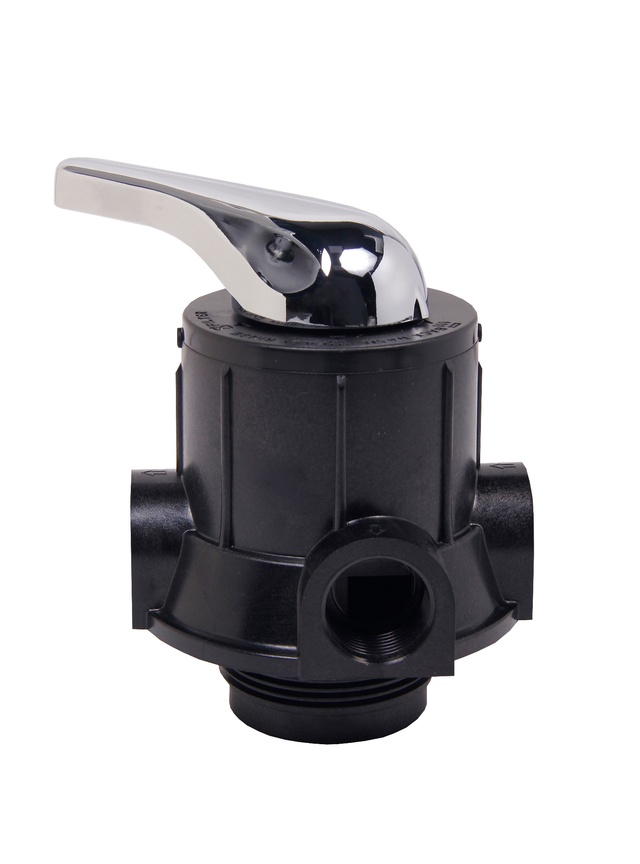

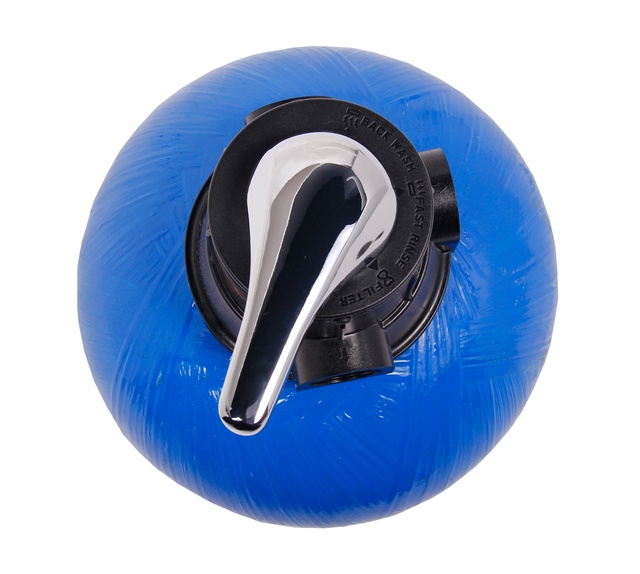

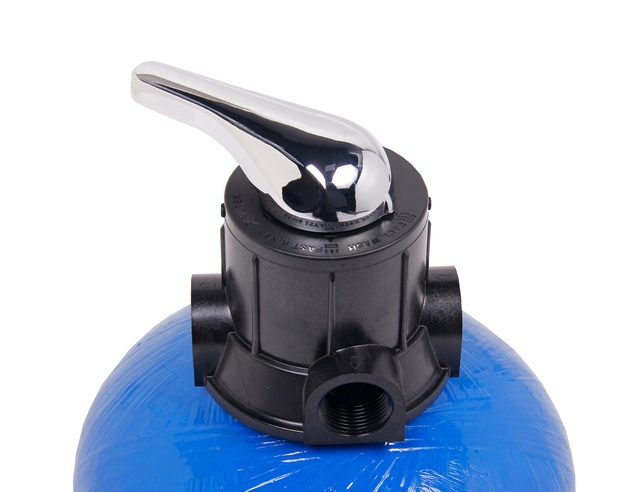

The Manual backwash/rinse valve can be used with several different Filtration Medias such as Activated Carbon, Silica Sand, Birm, Iron Removal Resin, Crystal Sand or AFM Glass Media. The Manual Backwash valve Head allows you to manually backwash sediment, dirt, rust, and other large particles from the filter media.
- Water Pressure: 0.15—0.6MPa
- Water Temperature: 5-50 degC
- Inlet/Outlet: 1″F
- Drain: 1″F
- Base: 2.5″- 8NPSM
- Riser Pipe: 1.05 ″OD (28mm)
- Max Flow Rate: 4 klph
- Suitable Vessel Size: 6-14 inch DIA
