Activated carbon is a natural product made from coal, wood, or coconut shells. Activated carbon filters are capable of purifying water from chlorine, chlorine dioxide, phenols, organic solvents, pesticides, odors, organic contaminants, etc.
WATEX CTC activated carbon filters are installed in private houses, apartment buildings, hotels, and guest houses to improve the quality of centralized water supply — reduce turbidity, neutralize odors, and improve taste.
Activated carbon filters are also widely used in various industries such as breweries, beverage production plants, food processing companies, wastewater treatment facilities, etc.
Technical parameters | Unit | CTC14 |
Capacity* Qnom | m³/h | 2.00 |
Minimum backwash intensity | m³/h | 2.0 |
Tank size (diameter) | inch | 14 |
Tank height | m | 0.36 |
Tank volume | liters | 145 |
Filter media quantity | liters | 100 |
Length | m | 0.46 |
Width | m | 0.46 |

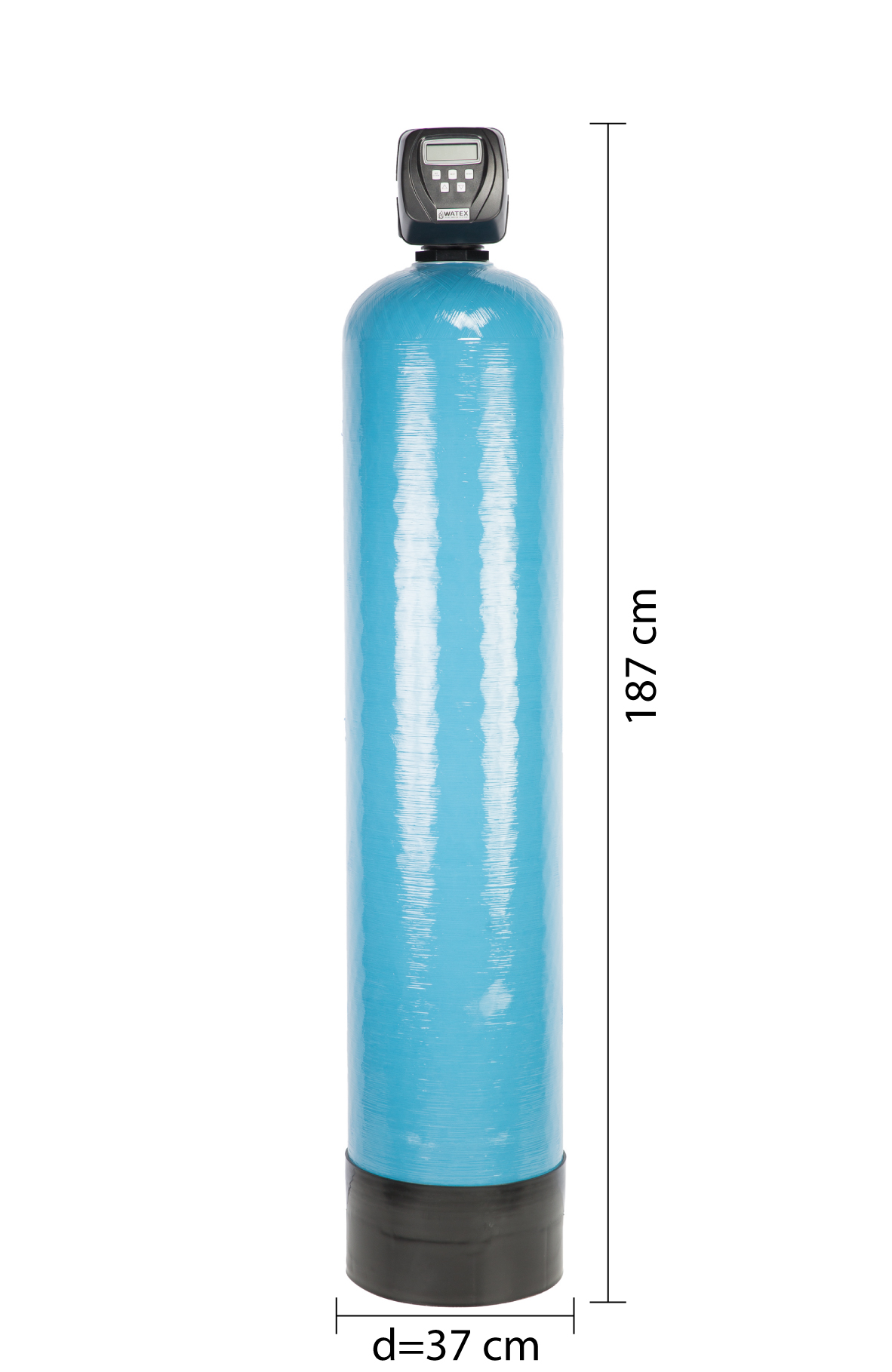

Height | m | 1.85 |
Water connection in/out | inch | 1" |
Purification options | Turbidity, odor, taste, organic substances | |
Tank material | FRP (fiberglass) with PE inner liner | |
Filter media | Granulated activated carbon, quartz sand 0.4x0.8, 1x3 mm, 3x5 mm | |
Working pressure | bar | 2.5–6.0 |
*Filtration rate 20 m/h
** Backwash duration 10 min
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 46 | 185 | 46 | 1 |
