Water softener WATEX CMS21
Out of stock
Delivery time: 2-5 working days
Description:
- Effective solution for water softening, removal of iron, manganese and ammonium
- Regeneration with brine solution from salt tablets (NaCl)
- Reliable and efficient operation for at least 10 years
- Apply for private houses, cottages, guesthouses, connected to central water supply systems
- Automatic purification and regeneration by volume control
- Simple installation and maintenance
- Low operating costs
- High quality materials, components
- Filter does not remove smell. WATEX CMB or CTO or AERO should be installed in addition
WATER QUALITY PROBLEM

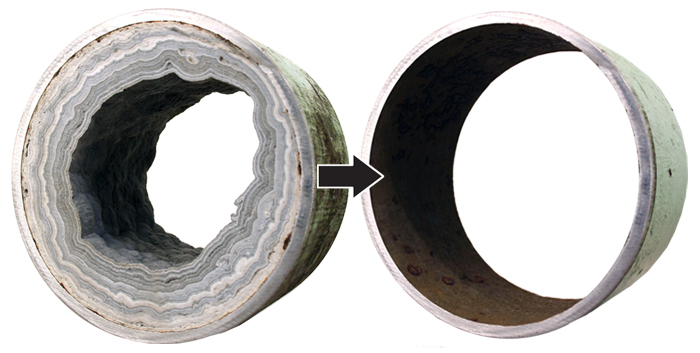

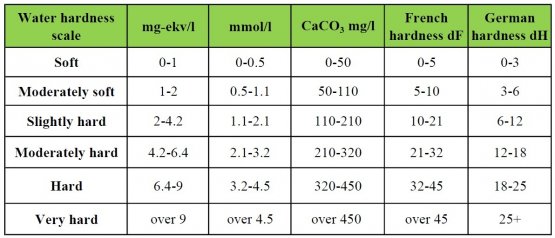

Water hardness is a set of natural properties of water related to the concentration of calcium and magnesium salts. Although hard water is not harmful to human health, it can pose a serious threat to various appliances, such as washing machines, boilers, dishwashers and pipes, creating precipitation in pipelines and especially on heating elements. Using such water for washing laundry requires more detergent. Water hardness will reduce the quality life of sanitary equipment and increase energy consumption.
SOLUTION
The solution of these problems for households and production needs is softening by WATEX CMS series ion exchange resin filters (reduces limescale) that are regenerated with NaCl. Water softening equipment also effectively reduce iron, manganese and ammonium.
FILTER PERFORMANCE

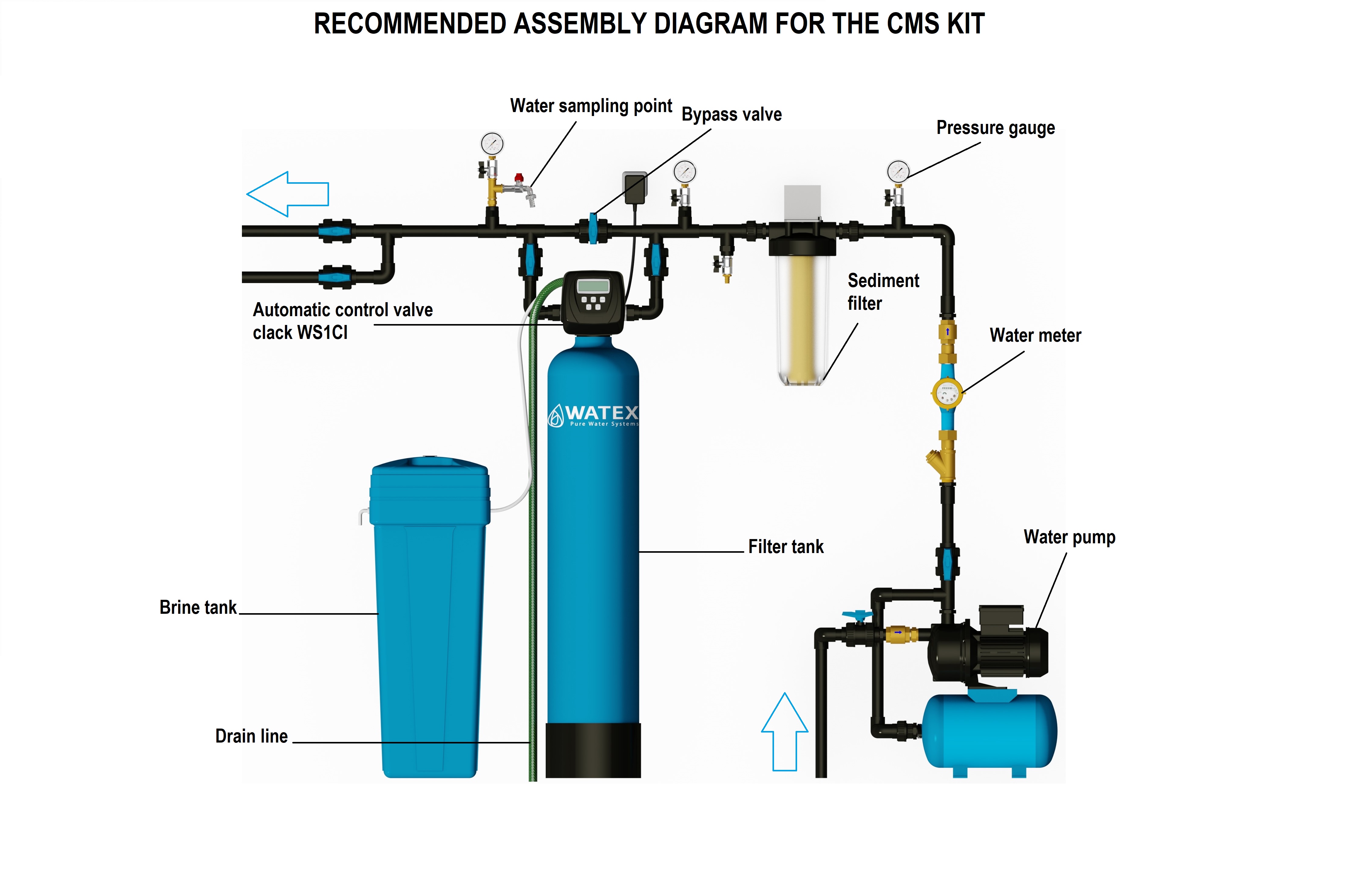

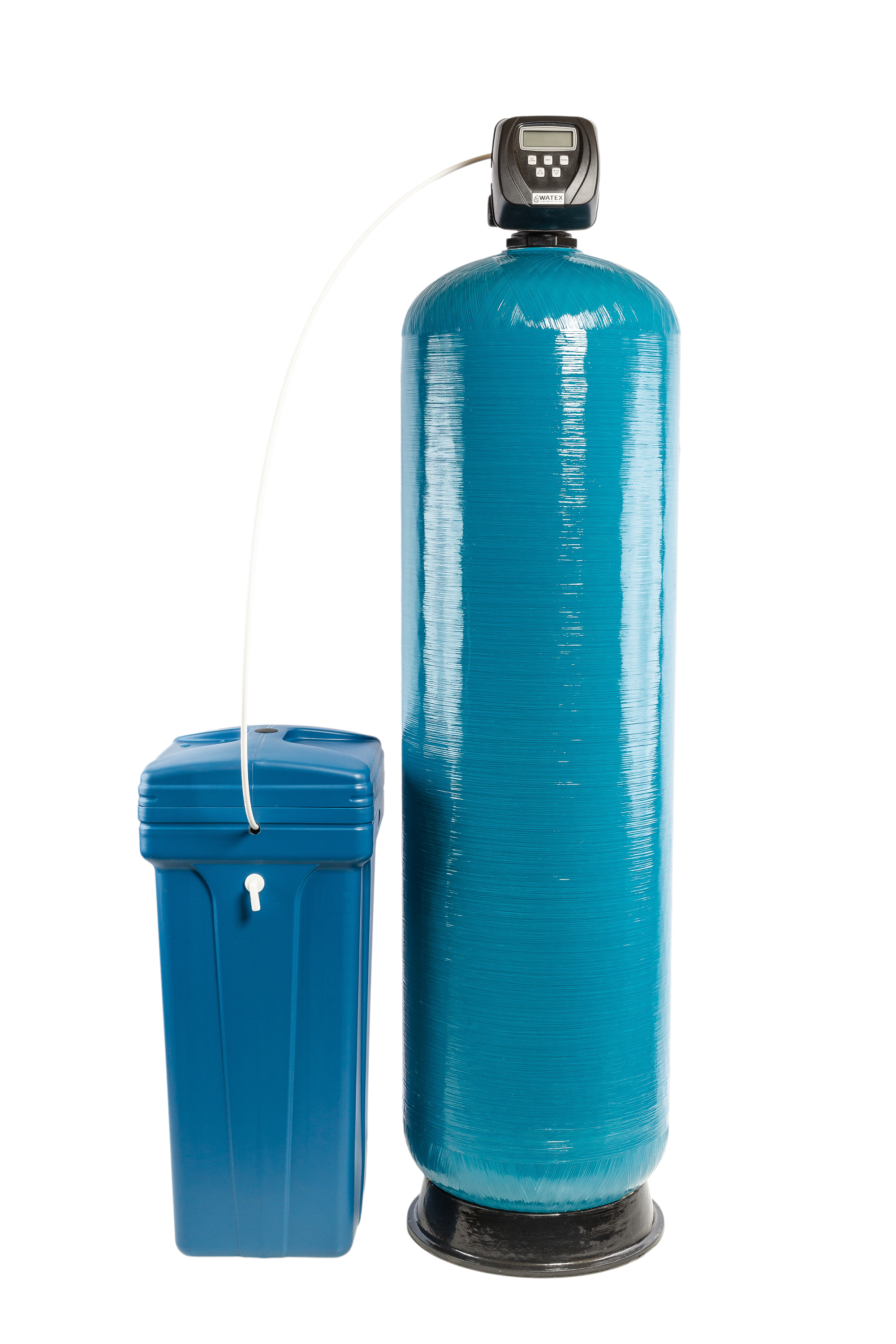

For recovery of filtration media (ion resins) reagent (NaCl or salt tablets) is used. Wastewaters produced in regeneration processes of equipment in WATEX CMS can be directly discharged to biological wastewater treatment plant. WATEX CMS consists of a filter column, control valve and salt tank. The filter column is filled with ion exchange resin (cationic), which reduces hardness and iron concentration in water. The control valve performs automatic regeneration. Salt tank is filled with a reagent (NaCl, salt tablets) for resin regeneration. Capacity of filtration media is calculated according to amount of resins and raw water quality.
FILTER CONTROL
WATEX CMS is equipped with a Clack WSCI1 control valve, with a built-in flow meter that performs filtration media regeneration according to water consumption. Flowmeter saves water and salt used for filter regeneration. The valve can be fitted with a bypass pipeline that allows to perform maintenance works with ease. Control valve saves all information in case of power failure. Equipment has many parameters that can be adjusted according to needs, such as washing time, frequency, reagent consumption, and so on. It is possible to change the water hardness with certain control valve body (additional component). The equipment also performs iron removal function, however the dissolved iron concentration cannot exceed 2.5-3.0 mg/l.
Iekārtas tehniskie parametri | Mērvienība | Modelis | |||
CMS 14 | CMS 16 | CMS 18 | CMS 21 | ||
Iekārtas ražība* Qnom | m3/st | 2.2 | 3.1 | 3.5 | 3.5 |
Iekārtas ražība** Qmax | m3/st | 3 | 4.5 | 4.5 | 4.5 |
Iekārtas maksimālā caurplūde | m3/st | 3 | 4.5 | 4.5 | 4.5 |
Iekārtas kapacitāte starp reģenerācijām | m3 | 15.1 | 18.9 | 22.7 | 30.3 |
Aprēķina ienākošā ūdens kvalitāte | Dzelzs – 0,2mg/l; Cietība – 6,0 mg-ekv/l | ||||
Skalošanas ūdens daudzums*** | litri | 320 | 410 | 500 | 670 |
Sāls patēriņš vienā reģenerācijas ciklā | kg | 15 | 18.8 | 22.5 | 30 |
Skalošanas minimālā intensitāte | m3/st | 0.8 | 1.1 | 1.4 | 1.8 |
Tvertnes izmērs (diametrs) | collas | 14 | 16 | 18 | 21 |
m | 0.37 | 0.41 | 0.454 | 0.53 | |
Tvertnes tilpums | litri | 145 | 183 | 237 | 316 |
Filtrējošā materiāla daudz. tvertnē | litri | 100 | 125 | 150 | 200 |

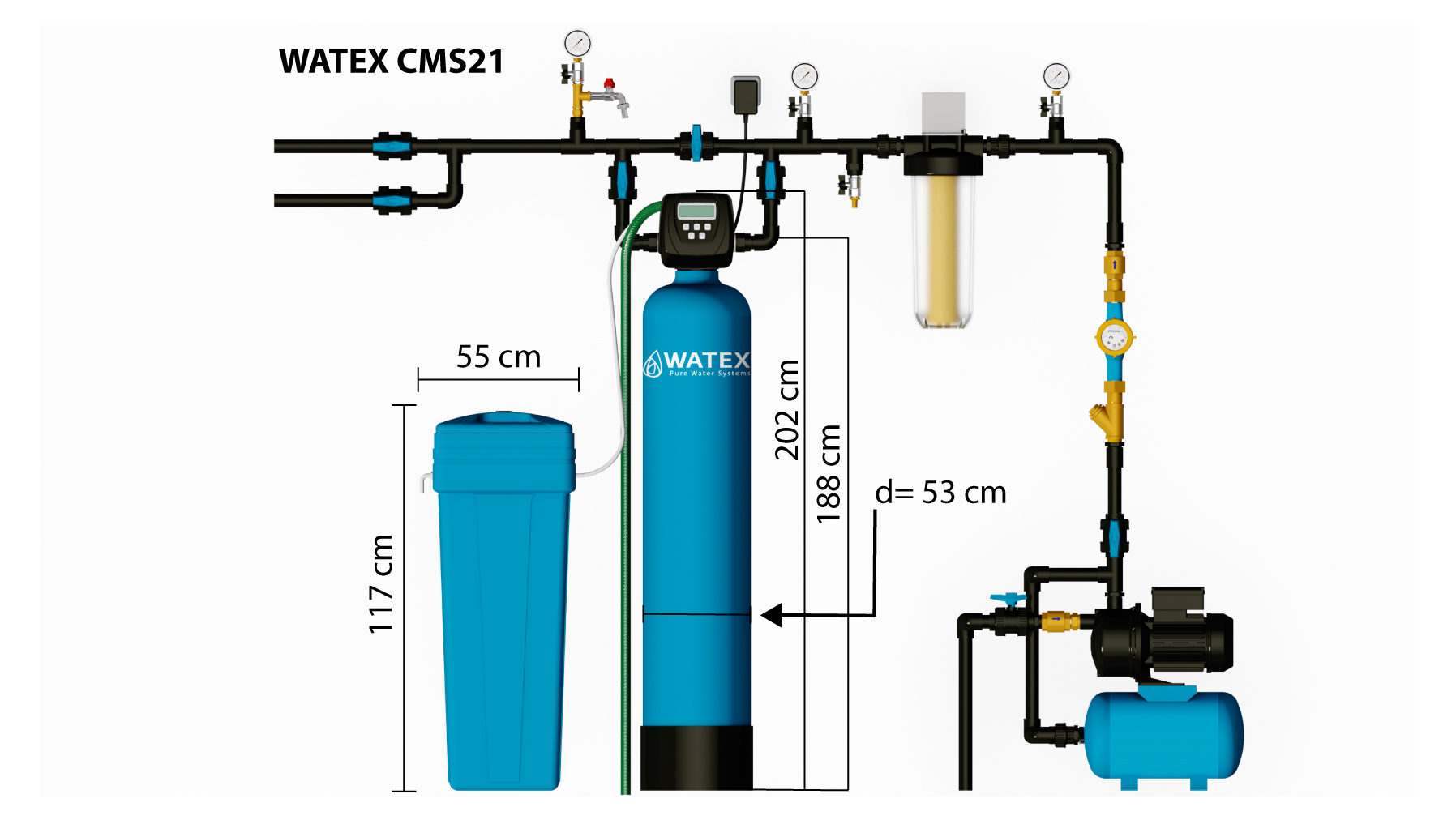

Iekārtas kopējais izmērs |
| ||||
Garums (L) | m | 0.88 | 0.92 | 1.26 | 1.36 |
Platums (W) | m | 0.37 | 0.41 | 0.454 | 0.53 |
Augstums (H) | m | 1.87 | 1.87 | 1.89 | 2.02 |
Ūdens piesl. Iekš/ār/kan | collas | 1”/1”/1” | 1¼”/1¼”/1” | 1¼”/1¼”/1” | 1¼”/1¼”/1” |
Clack vadības bloks |
| CI 1,0'' | CI 1,25'' | CI 1,25'' | CI 1,25'' |
Attīrīšanas iespējas |
| Cietība, dzelzs, amonijs, duļķainība | |||
Tvertnes materiāls |
| FRP (stiklašķiedras) | |||
Filtrējošais materiāls |
| Jonu apmaiņas sveķi Resinex KW-8, kvarca smilts 1x3 mm, 3x5 mm | |||
Darba spiediens | bar | 2-6 | |||
Elektropieslēgums |
| 220V, 50Hz, 1 fāze | |||
Elektropatēriņš | W | 3 W | |||
*Filtrācijas ātrums 25 BV/h
**Filtrācijas ātrums 40 BV/h
***Daudzums var divkāršoties, mainoties ienākošā ūdens kvalitātei
IEKĀRTAS EKSPLUATĀCIJA
Kaut arī iekārtas reģenerācijai tiek izmantots sāls tabletēs, ūdens pēc filtra ir lietojams dzeršanai un citām cilvēku dzīves nepieciešamībām. Iekārtai nepieciešams pieslēgums pie elektrības (viena rozete), kanalizācijas un ienākošā/ aizejošā ūdensvada ar minimālo spiedienu 2,5 bar. Iekārtu var izvietot mitrās telpās vai pazemes šahtās, kas veidotas no grodiem.
IETEIKUMI:
- Pirms iekārtas izvēles ieteicams veikt ūdens testēšanu, lai noteiktu ķīmisko ūdens sastāvu.
- Pirms iekārtas vēlams uzstādīt mehāniskās attīrīšanas filtru, lai nodrošinātu ilgāku iekārtas kalpošanas laiku.
CMS papildus aprīkojuma iespējas:
- Kondensāta izolācija tvertnei.
- Apvadlīnija (by-pass) – nav jāveido sava apvadlīnija no trim lodveida krāniem. Ērtākai montāžai.
- Remonta un apkopes komplekts – filtra atslēga, inžektori (2 gab.)
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
Nospiežot uz sekojošām saitēm, varat apskatīt un lejupielādēt:
Mīkstināšanas_filtri_WATEX_CMS14-21_tehniskie dati_LV.pdf
Ūdens_mīkstināšanas_risinājumi_WATEX_LV.pdf
Video:
Ūdens mīkstinātājs WATEX CMS. Filtra pirmā palaišana
