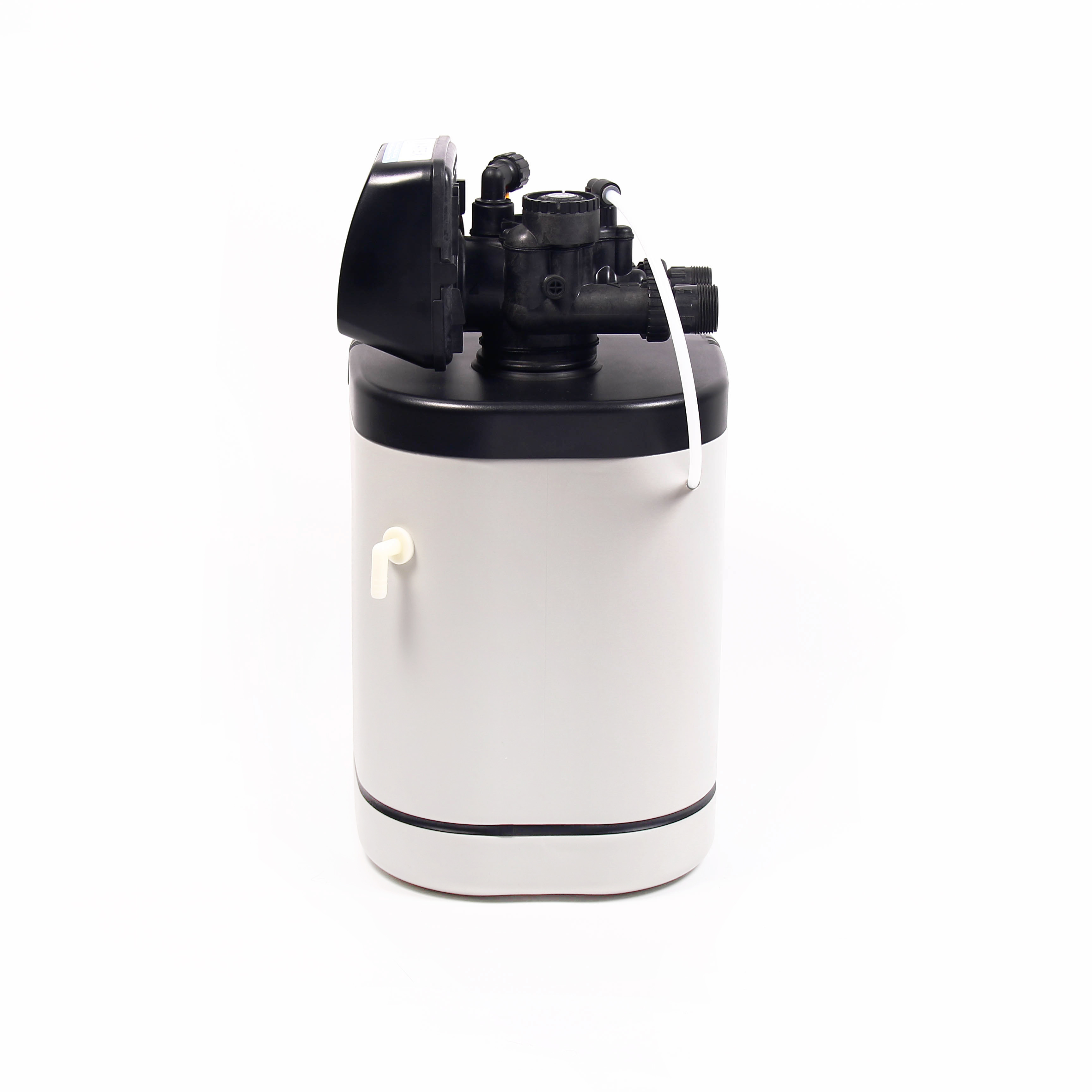

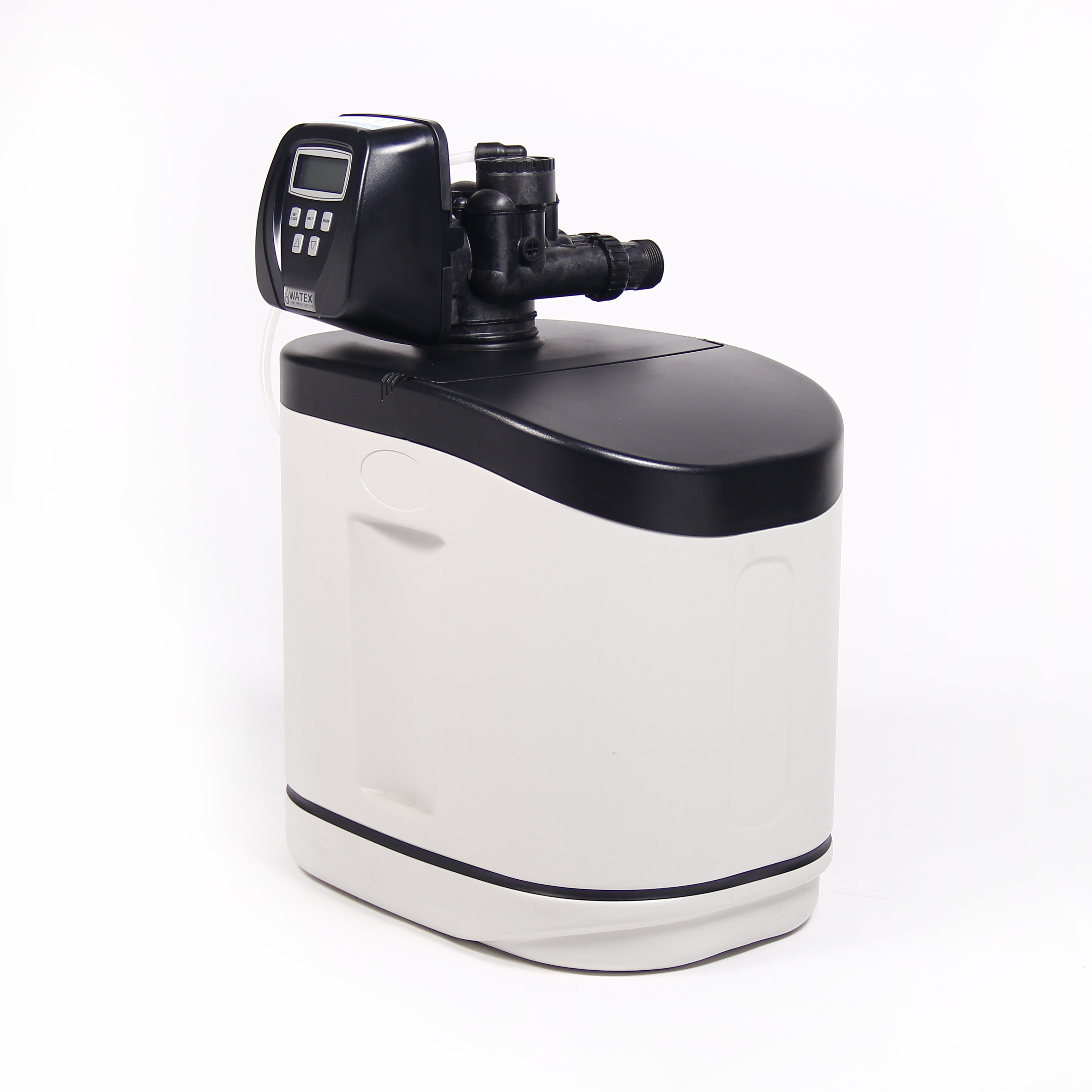

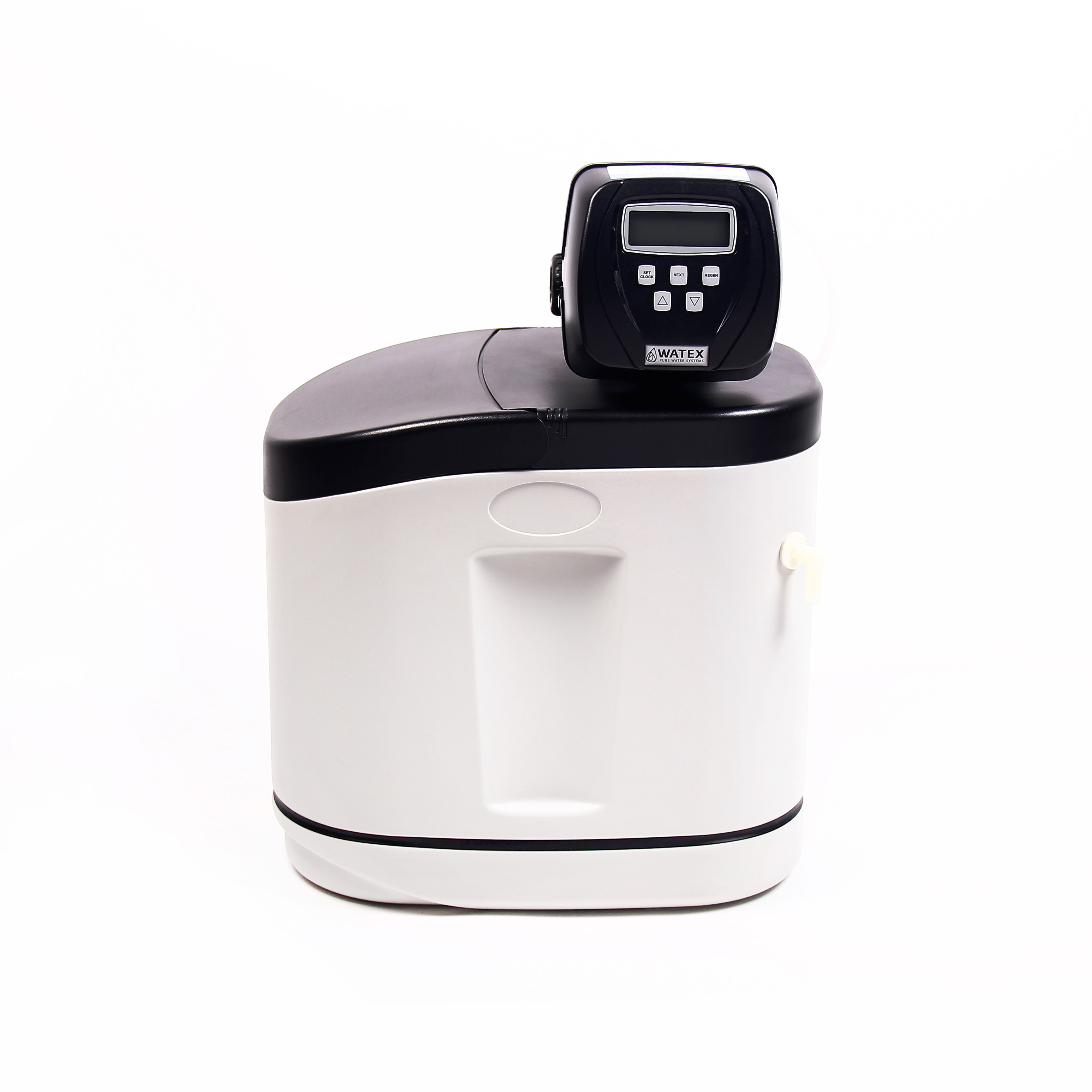

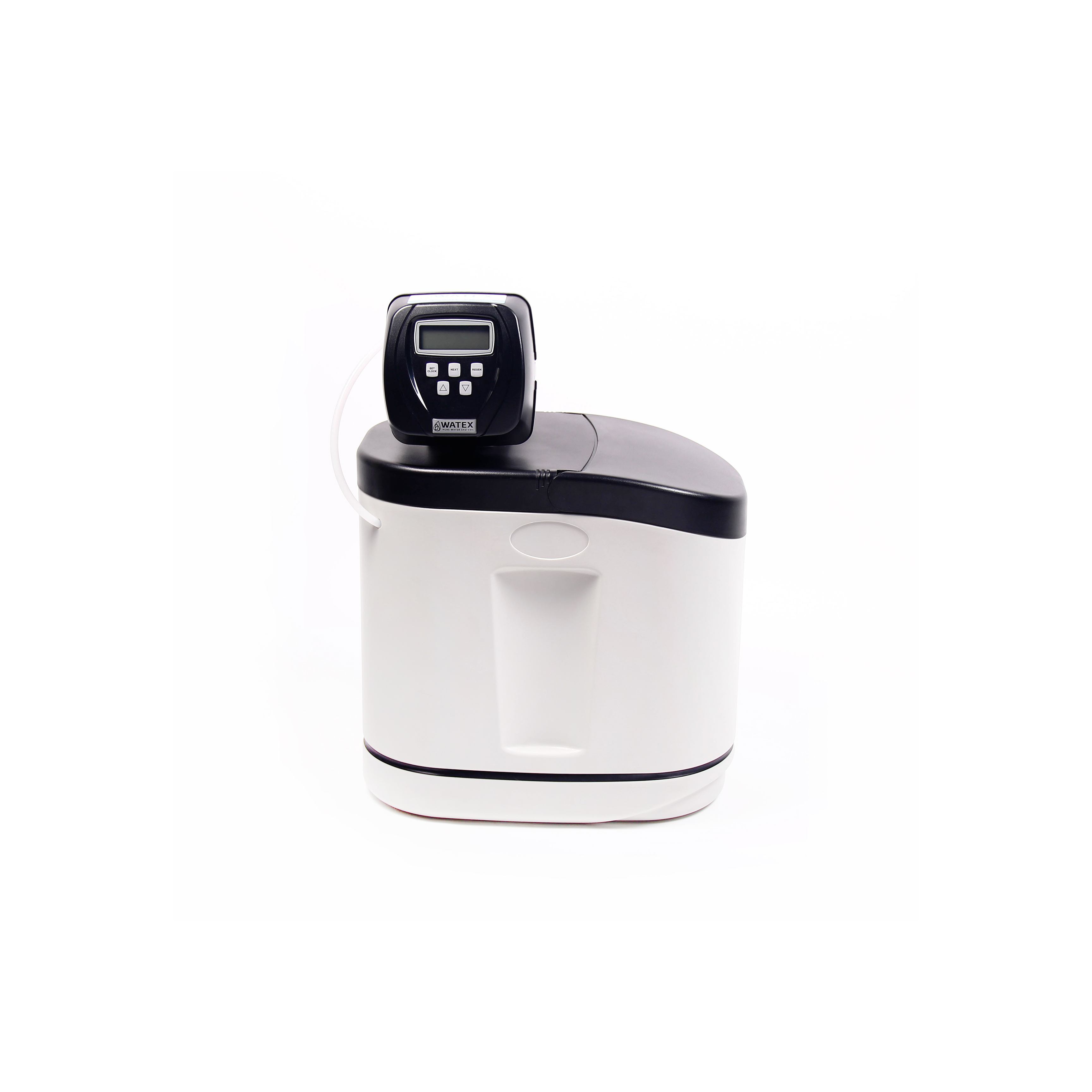

WATEX CMS CAB MINI water softener
Product is in stock
Delivery time: 2-5 working days
- Effective solution for water softening, iron, manganese and ammonium removal
- Regeneration with brine solution from salt tablets (NaCl)
- Reliable and efficient operation for at least 10 years
- Apply for private houses, cottages, guesthouses connected to central water supply systems
- Automatic purification and regeneration by volume control
- Simple installation and maintenance
- Low operating costs
- High quality materials, components
- Filter does not remove smell. WATEX CMB, MC or CTC should be installed in addition
WATER QUALITY PROBLEM

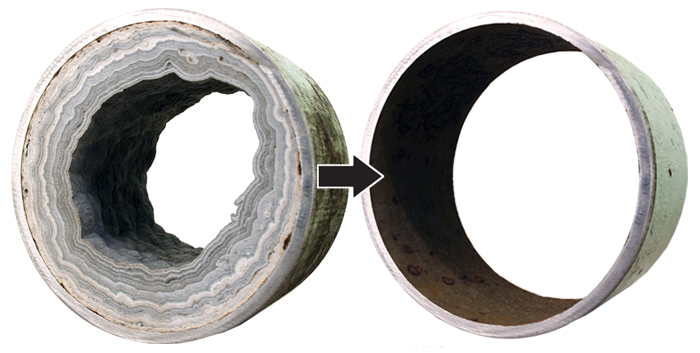

Hardness salts, Ca and Mg form scale deposits on heat exchangers, nozzles, fittings, pipes, plumbing equipment. Fine technical equipment rapidly out of order or increasing power consumption.
SOLUTION
The solution of these problems for households is softening by WATEX CMS CAB MINI series ion exchange resin filters (reduces limescale) that are regenerated with NaCl. Water softening equipment also effectively reduce iron, manganese and ammonium.
FILTER PERFORMANCE
For recovery of filtration media (ion resins) reagent (NaCl or salt tablets) is used. Wastewaters produced in regeneration processes of equipment in WATEX CMS CAB MINI can be directly discharged to biological wastewater treatment plant. WATEX CMS CAB MINI consists of a filter column, control valve and salt tank. The filter column is filled with ion exchange resin (cationic), which reduces hardness and iron concentration in water. The control valve performs automatic regeneration. Salt tank is filled with a reagent (NaCl, salt tablets) for resin regeneration. Capacity of filtration media is calculated according to amount of resins and raw water quality.
FILTER CONTROL
WATEX CMS CAB MINI is equipped with a Clack WSCI1 control valve, with a built-in flow meter that performs filtration media regeneration according to water consumption. Flowmeter saves water and salt used for filter regeneration. The valve can be fitted with a bypass pipeline that allows to perform maintenance works with ease. Control valve saves all information in case of power failure. Equipment has many parameters that can be adjusted according to needs, such as washing time, frequency, reagent consumption, and so on.
Iekārtas tehniskie parametri | Mērvienība | Modelis | |

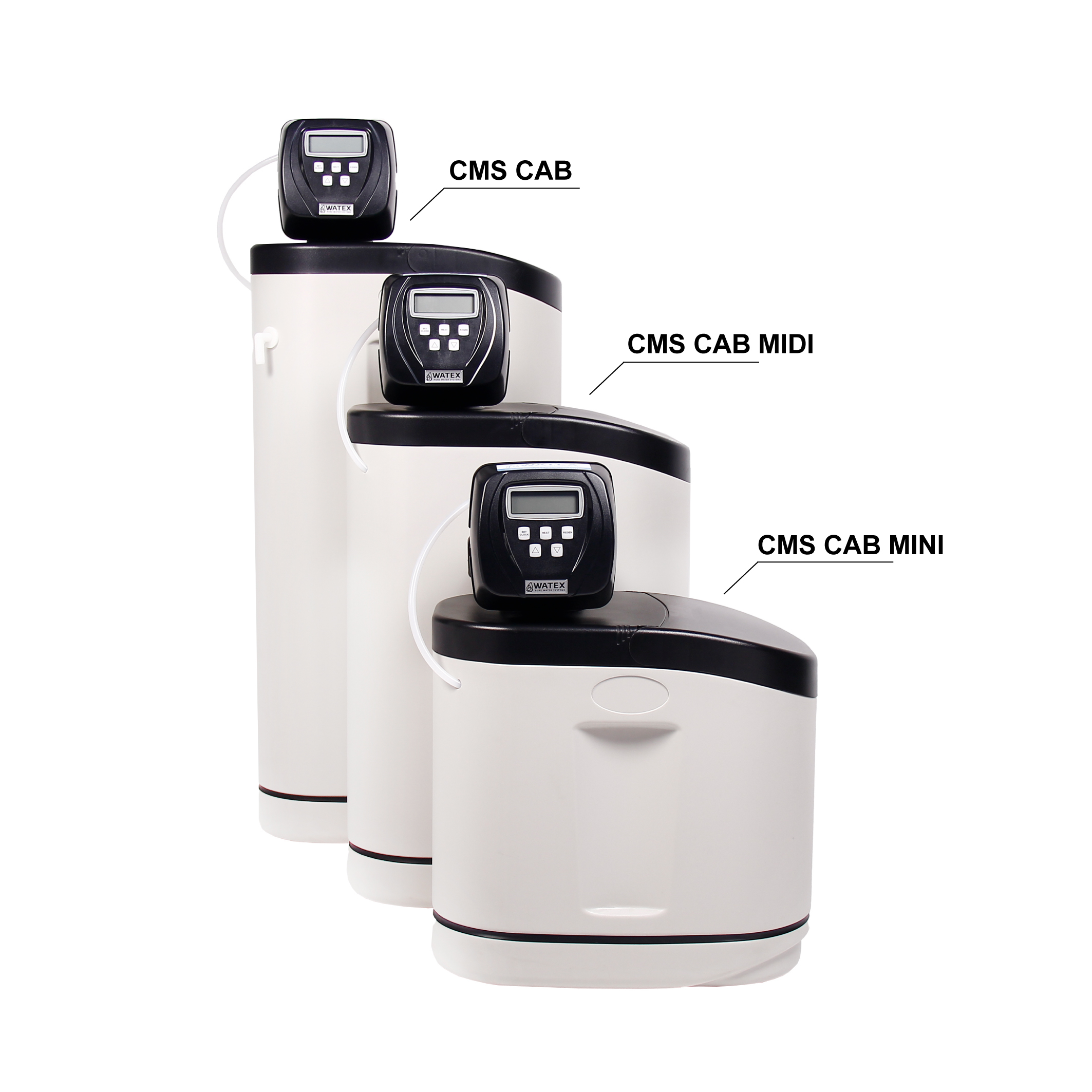

CMS CAB MINI | CMS CAB | ||
Iekārtas ražība (nom - 25 BV/h) | m3/st | 0,25 | 0,5 |
Iekārtas ražība (max - 40 BV/h) | m3/st | 0,4 | 0,8 |
Skalošanas ūdens daudzums (min) | litri | 137 | 201 |
Skalošanas ūdens daudzums (max) | litri | 204 | 268 |
Skalošanas minimālā intensitāte | m3/st | 0,41 | 0,41 |
Tvertnes izmērs (diametrs) | collas | 10 | 10 |
m | 0,25 | 0,25 | |
Tvertnes tilpums | litri | 17 | 32 |
Filtrējošā materiāla daudz. tvertnē | litri | 10 | 20 |
Filtra kapacitāte starp reģenerēšanos | m3 | 1,5 | 3 |
Sāls vidējais patēriņš pie reģenerācijas | kg | 1,44 | 2,4 |
Iekārtas kopējais izmērs | |||
Garums | m | 0,47 | 0,47 |
Platums | m | 0,33 | 0,33 |
Augstums | m | 0,61 | 1,08 |
Ūdens piesl. iekš/ār/kan. | mm | 3/4'' | 3/4'' |
Clack vadības bloks | CI 1'' | CI 1'' | |
Attīrīšanas iespējas | Cietība, dzelzs, duļķainība | ||
Tvertnes materiāls | FRP (stiklašķiedras) | ||
Filtrējošais materiāls | Jonu apmaiņas sveķi Resinex KW-8 kvarca smiltis 1x3mm, 3x5 mm | ||
Darba spiediens | bar | 2-6 | |
Elektropieslēgums | 220V, 50Hz, 1 fāze | ||
Elektropatēriņš | W | 3 W | |
IEKĀRTAS EKSPLUATĀCIJA
Kaut arī iekārtas reģenerācijai tiek izmantots sāls tabletēs, ūdens pēc filtra ir lietojams dzeršanai un citām cilvēku dzīves nepieciešamībām. Iekārtai nepieciešams pieslēgums pie elektrības (viena rozete), kanalizācijas un ienākošā/ aizejošā ūdensvada ar minimālo spiedienu 2,5 bar. Iekārtu var izvietot mitrās telpās vai pazemes šahtās, kas veidotas no grodiem.
IETEIKUMI
- Pirms iekārtas izvēles ieteicams veikt ūdens testēšanu, lai noteiktu ķīmisko ūdens sastāvu.
- Pirms iekārtas vēlams uzstādīt mehāniskās attīrīšanas filtru, lai nodrošinātu ilgāku iekārtas kalpošanas laiku.
CMS CAB papildus aprīkojuma iespējas:
- Apvadlīnija (by-pass) – nav jāveido sava apvadlīnija no trim lodveida krāniem. Ērtākai montāžai.
- Remonta un apkopes komplekts – filtra atslēga, inžektori (2 gab.)
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 28 | 61 | 47 | 40 |
Nospiežot uz sekojošajām saitēm, varat apskatīt un lejupielādēt:
Atdzelžošanas_filtrs_WATEX_RCMB10-16_tehniskie_dati_LV.pdf
