Water flow meter 40-400 l/h

Tootja: WATEX

Tootekood: 620

Tarneaeg: 2-5 tööpäeva

Kas teil on küsimusi?

Toote kirjeldus

Tehnilised andmed

Manused

Technical parameters of equipment	Unit	Model
Technical parameters of equipment	Unit	LZS-15
Connection (DN)	mm	15
Measure range	l/h	40-400
Accuracy	%	4
Working temperature	°С	0-60
Operating pressure	MPa	≤ 0.6

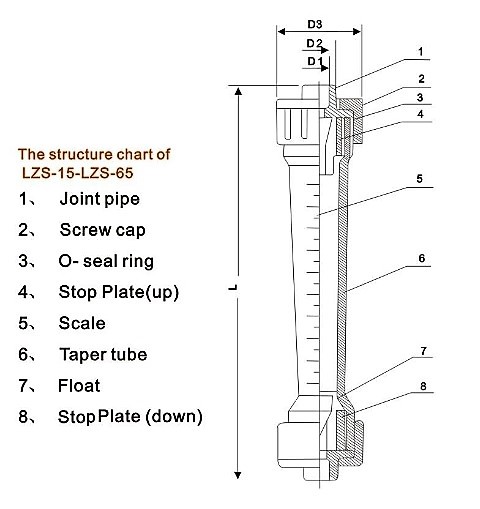

Dimensions:
L (Short Tube Type)	mm	202
L (Long Tube Type)	mm	280
D1	mm	20
D2	mm	26
D3	mm	45
