WATEX WRO200 pöördosmoosi süsteem
Laost otsas
Tarneaeg: 2-5 tööpäeva

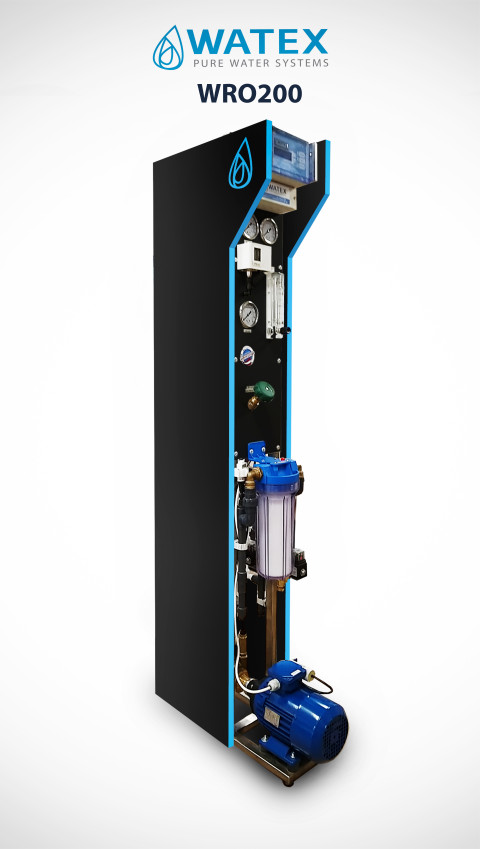

WATEX WRO200 reverse osmosis system
Advantages: extra compact, high quality performance, competitive price
Reverse osmosis system for brackish water with flow rate 200-250 liters/hour.
WATEX WRO series reverse osmosis systems are used for low mineralised water (up to 4000 ppm) with different flow rates.
Reverse osmosis system purify water from 99.2% of salts, pyrogenic substances and microorganisms.
Permeate quality and flow rate depends on intake water salt concentration, temperature, applied pressure, membrane selection and pretreatment.
Quality and operation control system:
- On-line conductivity meter 0-500 microS/cm
- Inlet water low pressure switch and alarm
- Permeate high pressure switch
- Pressure indicators (inlet, after pump, concentrate)
- Permeate flow meter
- Concentrate drain flow regulation
- Pump pressure regulation valve
- Water leakage alarm and shut-off
- High conductivity alarm
- Automatic/manual flushing system
- Recirculation/recovery regulation
Notes:
- Data based on following parameters: 1500 mg/l NaCl solution at 10 bars, 25 oC, Salt rejection 99.2%, SDI<3 brackish and low-mineralized water
- Pretreatment required: sediment filtration, iron removal, softening or antiscalant dosing, adsorption by activated carbon if chlorine presence
- Clean water reservoir minimum 200 liters required after reverse osmosis system
Optional features
- Antiscalant dosing system
- PLC operating controller
- Temperature switch
- Stainless steel pipes and fittings (AISI304, AISI316)
- Pretreatment built-in
- Dry-run protection of the reverse osmosis pump
To receive quotation, please fill RO order form watex_wro_order_form.pdf and send it to: info@watex.eu
