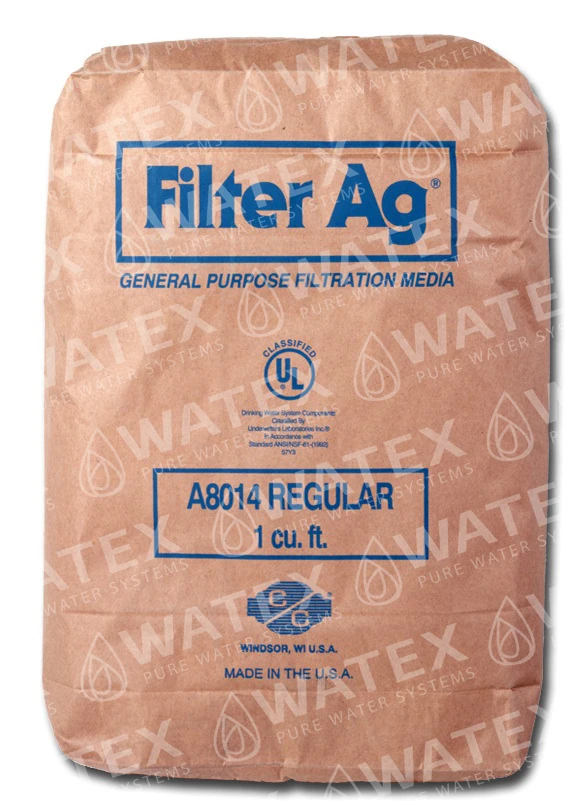

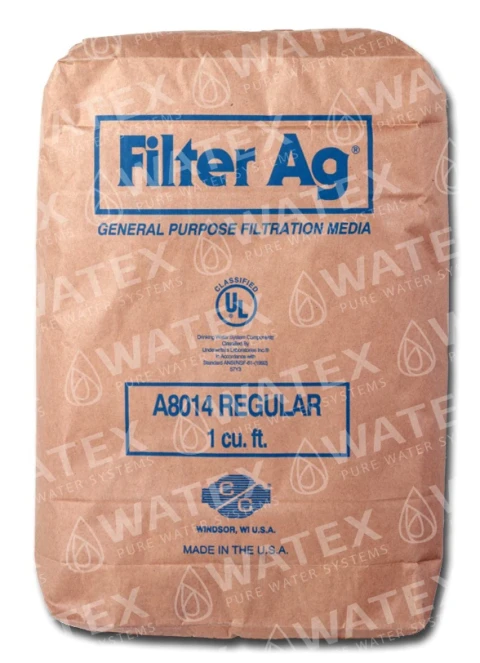

FILTER AG quartz filter media (28.3 L bag)
Product is in stock
Delivery time: 2-5 working days

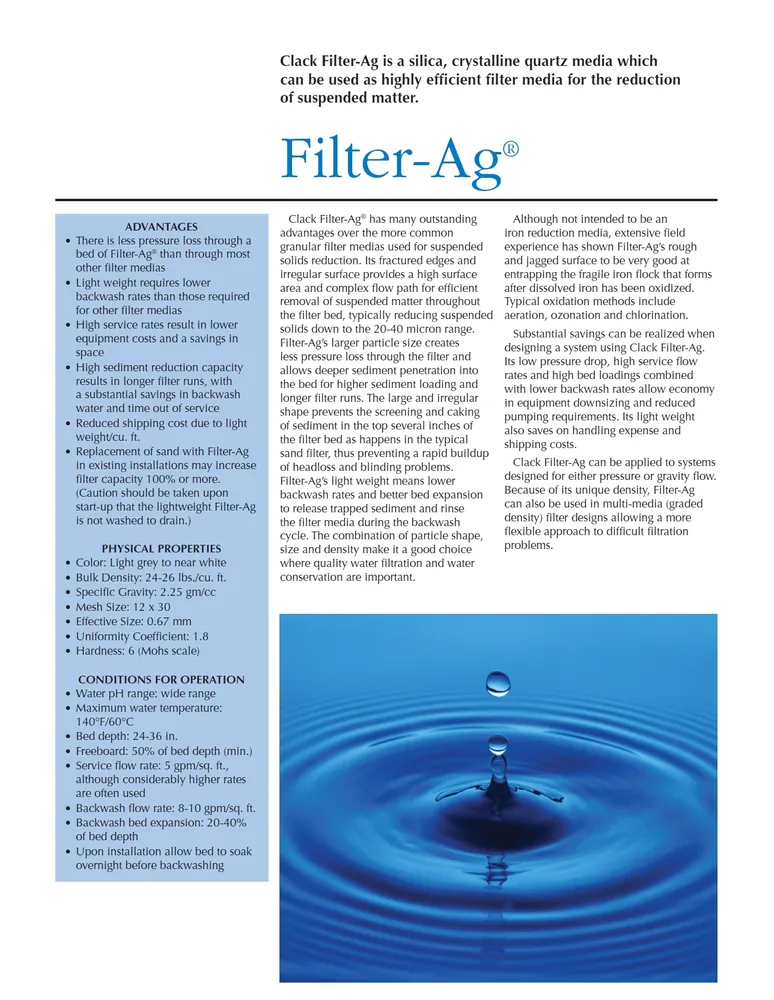

Filter-Ag® is a silica, crystalline quartz media which can be used as highly efficient filter media for the reduction of suspended matter. Its fractured edges and irregular surface provides a high surface area and complex flow path for efficient removal of suspended matter throughout the filter bed, typically reducing suspended solids down to the 20-40 micron range. Filter-Ag®'s larger particle size creates less pressure loss through the filter and allows deeper sediment penetration into the bed for higher sediment loading and longer filter runs.
Clack Filter-Ag® can be applied to systems designed for either pressure or gravity flow. Because of its unique density, Filter-Ag® can also be used in multi-media (graded density) filter designs allowing a more flexible approach to difficult filtration problems.
PHYSICAL PROPERTIES:
- Color: Light grey to near white
- Specific Gravity: 2.25 gm/cc
- Mesh Size: 12 x 30
- Effective Size: 0.67 mm
- Uniformity Coefficient: 1.8
- Hardness: 6 {Mohs scale)
Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.
| Parameter | Value |
|---|---|
| Material | Crystalline quartz (SiO₂) |
| Color | Light grey to near white |
| Specific gravity | 2.25 g/cm³ |
| Mesh size | 12 × 30 |
| Effective size | 0.67 mm |
| Uniformity coefficient | 1.8 |
| Hardness (Mohs scale) | 6 |
| Typical particle removal | 20–40 µm |
| Packaging | 28.3 l/bag |
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 45 | 15 | 63 | 25 |
