HIDROTEK reverse osmosis membrane BW-4040
Available on order
Delivery time: 2-5 working days
HIDROTEK BW-4040 is a 4″×40″ spiral-wound RO element for brackish water, designed to produce high-quality water at low/medium operating pressure.
Hidrotek BW industrial reverse osmosis membrane series is designed for the treatment of water with elevated salt content. It provides high permeate production and efficient salt rejection at relatively low operating pressure and low energy consumption. The membranes operate at pressures starting from 1 MPa (150 psi) and are suitable for treating water with salt concentrations up to 5,000 ppm. They are widely used in the food industry, drinking water production, power generation, electronics and biotechnology industries, pharmaceutical manufacturing, and other industrial applications.
Technical Data:
- Active membrane area: 7.5 m²
- Permeate flow rate: 2,500 GPD (~9.5 m³/day)
- NaCl (test solution concentration): 2,000 mg/L
- Test pressure: 150 psi (10,3 bar)
- pH (test conditions): 7.5
- Recovery per membrane element: 15%
- Stabilized salt rejection: 99%
- Minimum salt rejection: 99%
- Package dimensions: 13 × 13 × 110 cm
- Permeate flow variation per element: +15% / -15%
- Membrane type: Thin-Film Composite (TFC)
- Membrane material: Polyamide (PA)
- Element configuration: Spiral-wound, FRP outer wrap
- Packaging: Vacuum-sealed in a polyethylene bag and individually packed in a cardboard box
Note: Performance data were obtained after 30 minutes of operation.

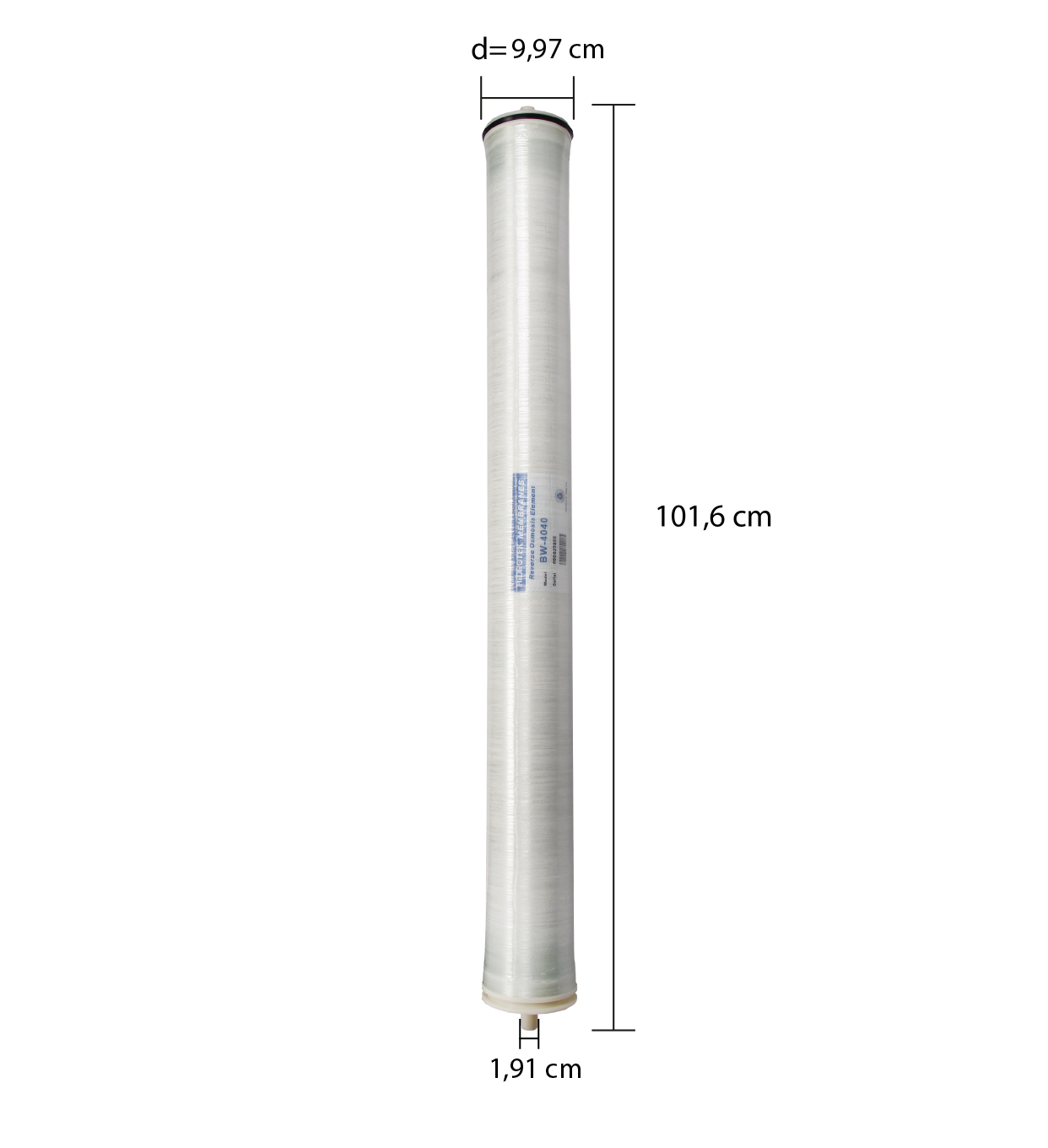

| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 10.00 | 10.00 | 101.60 | 3.2 |
By clicking the following link, you can view and download:
BW-4040 Low pressure RO membraneRelated products
