Water softener WATEX CMS30 TRIPLEX
Out of stock
Delivery time: 2-5 working days
WATEX CMS Triplex series equipment are continuous water softening systems intended for operation sites with high water consumption. The equipment is suitable for boiler houses, apartment buildings and factories. The equipment will purify the water not only from the water hardness creating salts, but also completely purify the water from the iron content (not exceeding certain values). During the regneration process, a reagent (NaCl, salt tablets) is consumed, which is used to regenerate the filtering material (ion exchange resins). The flsuhing water from this equipment can be discharged to biological WWTPs (wastewater treatment plants).

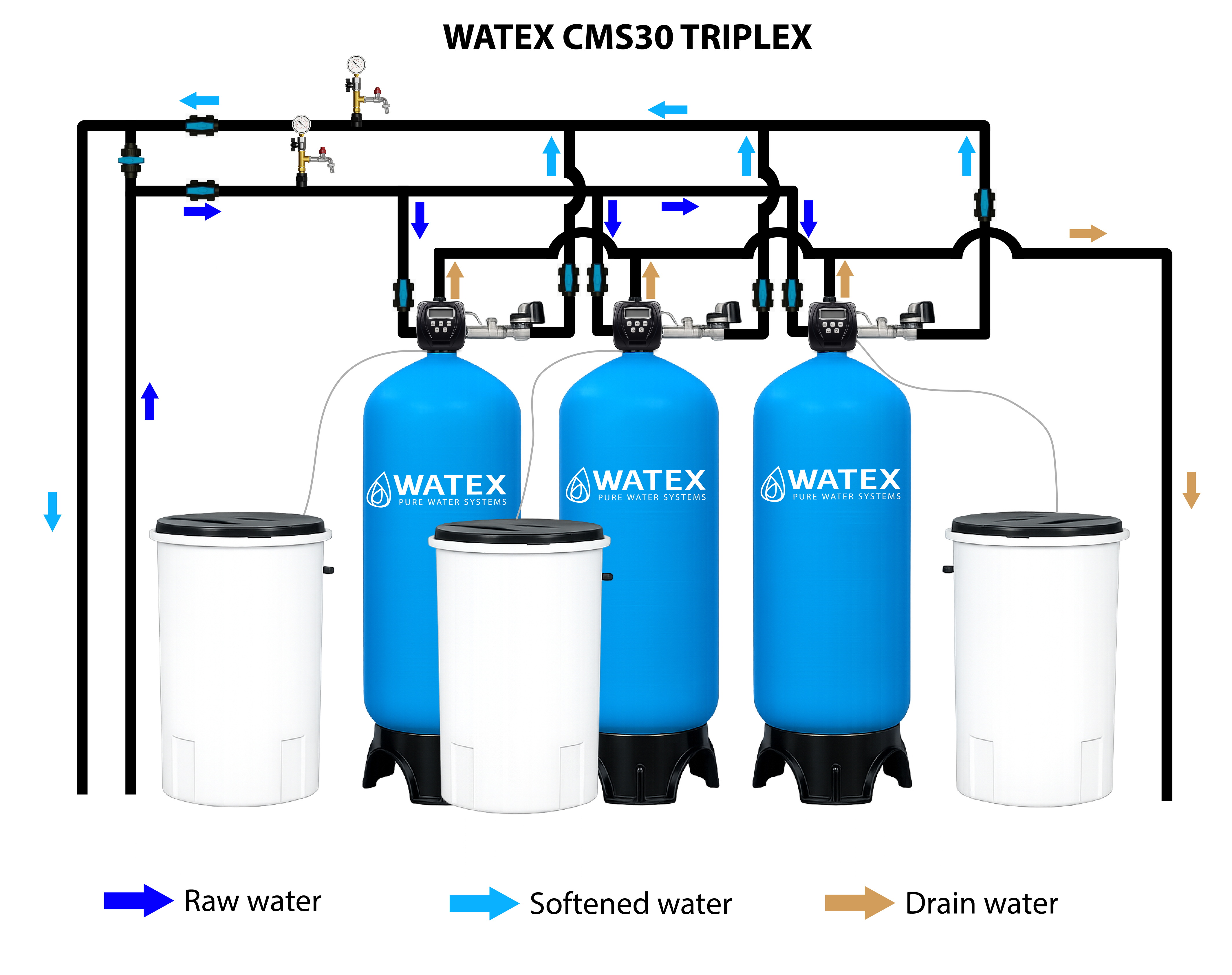

The WATEX CMS Triplex series kit consists of three filter tanks, three CLACK control valves, three two-way electric valves and three brine tanks. The filter tanks are filled with ion exchange resin (cation), which reduces water hardness and filters iron. The control valve automatically conducts regeneration based on water consumption and saves all information even in the event of a power failure. The brine tank is filled with a reagent salt tablets (NaCl) for resin regeneration. Depending on the amount of resin and the quality of the water, the equpment is programmed to have a certain water capacity between regenerations.
The equipment requires a connection to electricity (three sockets) as well as a sewer connection and an incoming/outgoing water pipeline with a minimum water pressure of 2.5 bar.
The equipment can be placed in damp rooms or in underground shafts made of grooves.
Recommendation! Before choosing a device, it is recommended to perform water testing to determine the chemical composition of the water.
Recommendation! It is preferable to install a mechanical water filter before the filters to ensure a longer service life of the equipment.
Equipment technical parameters
Unit
Triplex Model
CMS 30
Flow rate* Qnom
m3 /h
25.5
Flow rate** Qmax
m3 /h
34.5
Maximum flow rate
m3 /h (l/s)
34.5 (9.6)
OIne filter tank capacity between regenerations
m3
64.0
Incoming water quality for calculation

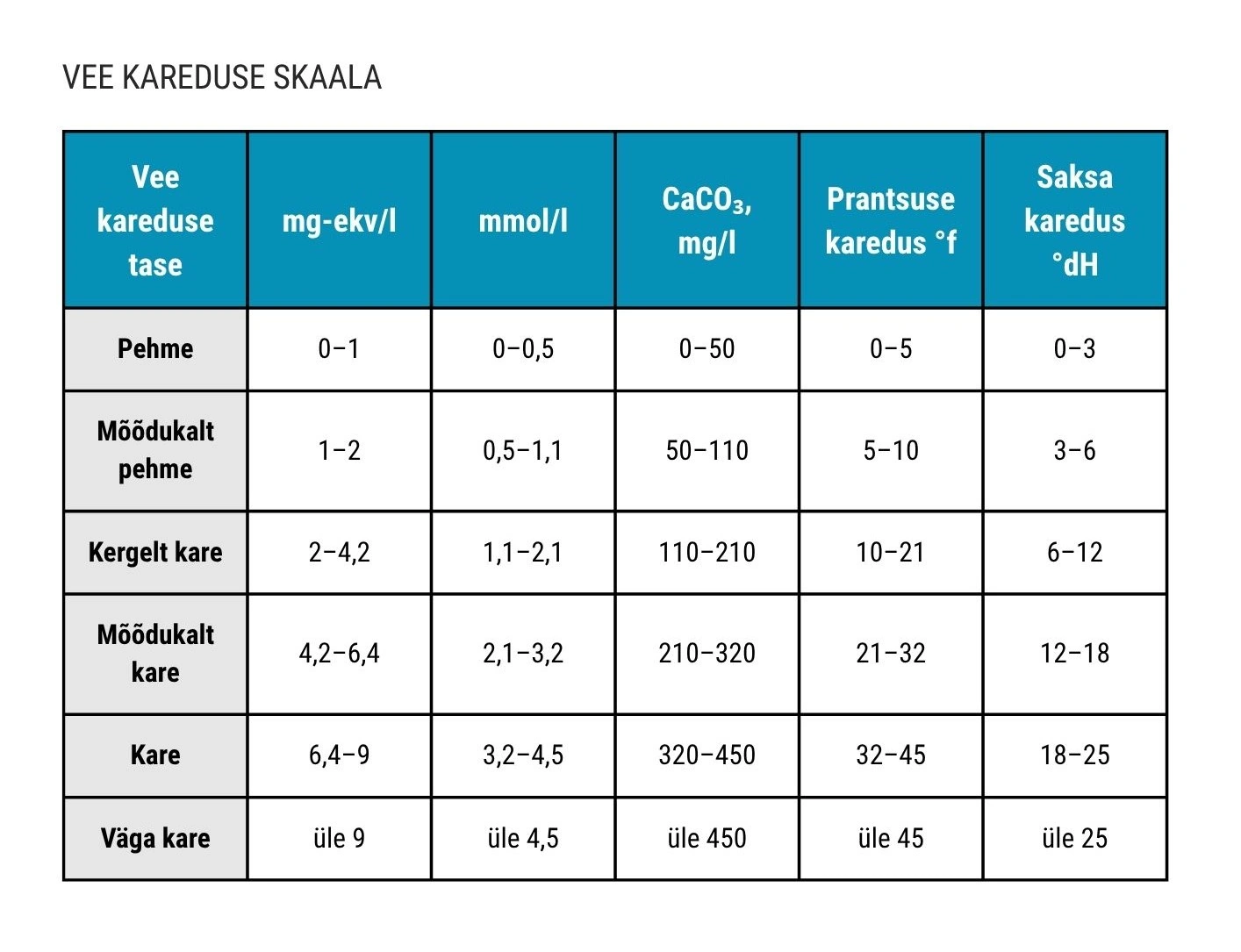

Iron – 0,2mg/l; Water hardness – 6,0 mg-ekv/l
Amount of water for 1 regeneration***
liters
1400
Salt consumption for 1 regeneration
kg
64.0
Minimum flow rate for rinsing
m3 /h
3.7
Salt tank size
liters
500
Diameter/ m
0.87
Tank size (diameter)
inches
30
m
0.76
Tank volume
liters
640
The amount of filtering material
liters
425

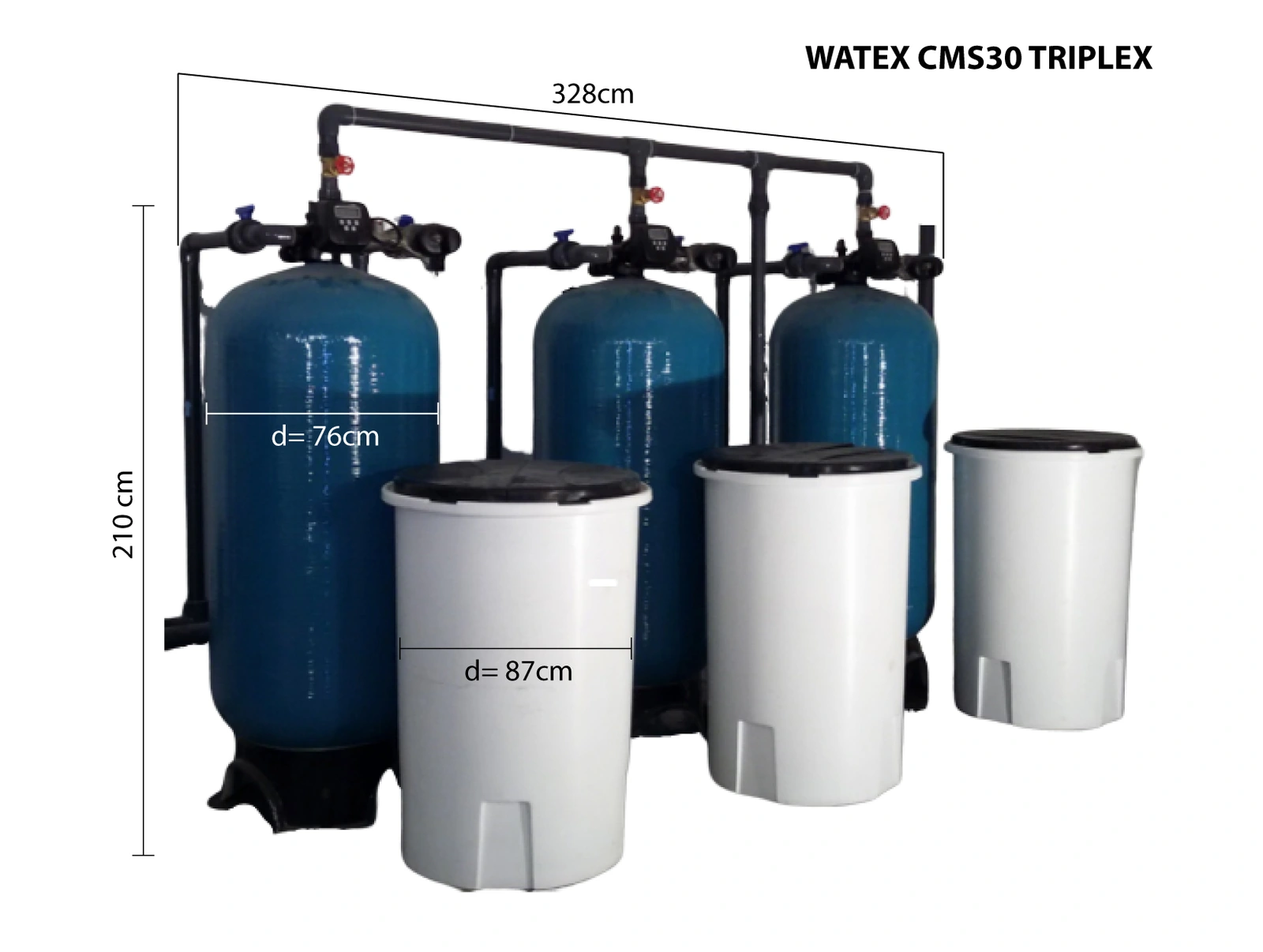

Equipment dimensions
Lenght (L)
m
3.28
Width (W)
m
1.93
Height (H)
m
2.10
Connection incoming/outgoing/drain
inches
1 ½”/1 ½”/1¼”
Clack control valve
CI 1.5” NHVB x 2
Water treatment possibilities
Hardness, iron, ammonium, turbidity
Tank material
FRP (fiberglass)
Filtering material
Ion exchange resins RESINEX KW-8, quartz sand 1x3mm, 3x5 mm
Working pressure
bar
2-6
Electric Connection
220V, 50Hz, 1 phase
Electricity consumption
W
3W
* Filtration speed 25 BV/h
** Filtration speed 40 BV/h
*** Volume can multiply if incoming water quality changes
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
By clicking on the following links, you can view and download:
Water_softening_filter_WATEX_CMS16-36_TRIPLEX_technical_data_ENG.pdf
Water_softening_solutions_WATEX_ENG.pdf
