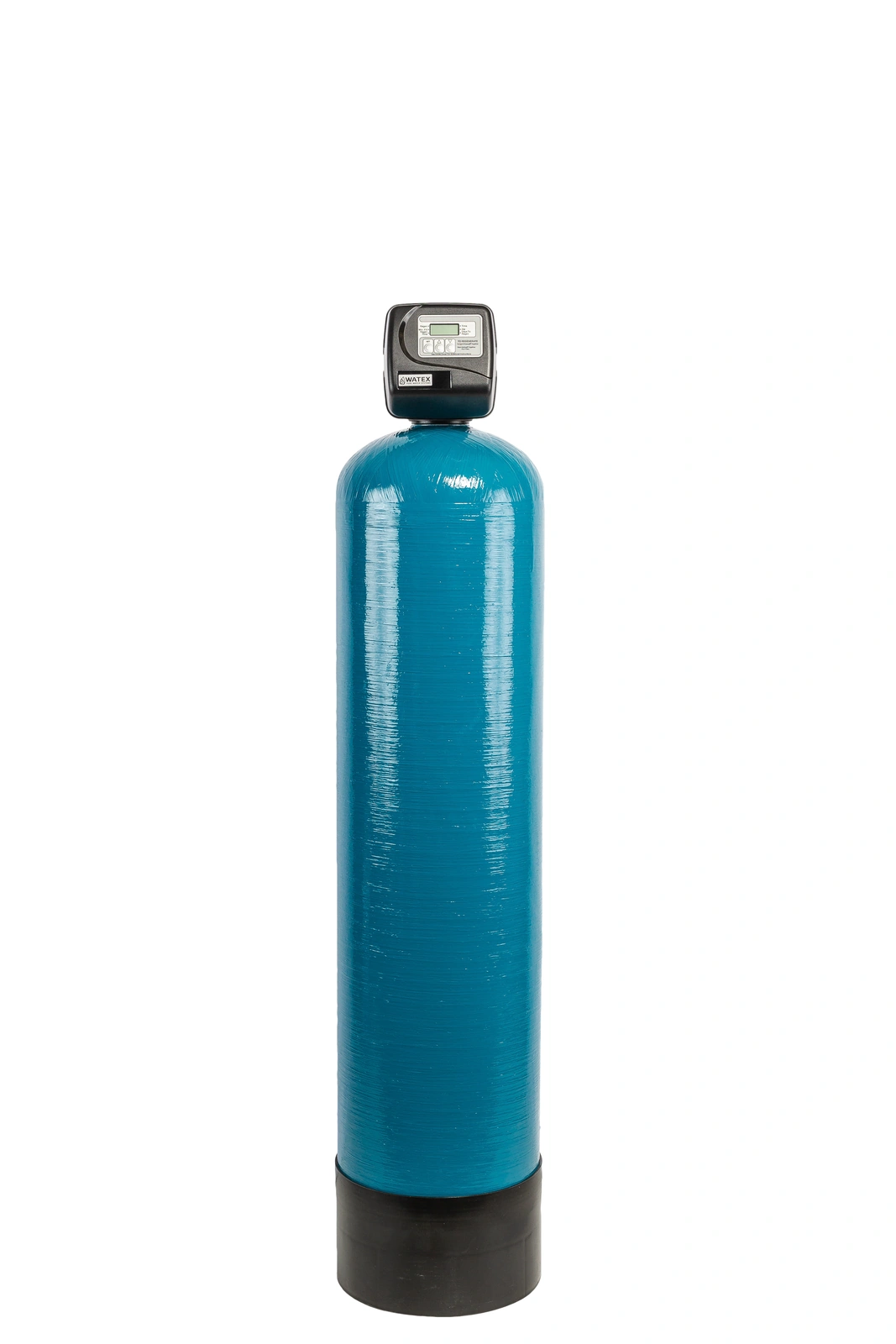

WATEX CTC13 activated carbon filter

Valmistaja: WATEX

Tuotekoodi: CTC13

Tuote on varastossa

Toimitusaika: 2–5 arkipäivää

Onko sinulla kysyttävää?

Ota yhteyttä asiantuntijoihimme.

Kuvaus

Tekniset tiedot

Liitteet

Purification from the odors, chlorine, organics, etc.
Fully automatic backwash by time control Clack valve
High quality components and filter media
Nominal flow rate: 2,0 cbm/hour
Operating pressure: 2 - 6 bar
Pressure drop in service mode: max 0,5 bar
Temperature of feed water: 2-35 °C
Power supply of control valve: 220V
Connection (male thread): 1‘’

Activated carbon is a natural product, made from coal, wood or coconut. Activated carbon filters can purify water from chlorine, chlorine dioxide, phenols, organic solvents, pesticides, odors, organics, etc.

WATEX CTC carbon filters are installed in private homes, apartment buildings, small hotels, guesthouses, to improve the central water quality - reduce turbidity, neutralize odors and improve the taste.
Carbon filters also are widely used in various industries as breweries, beverage plants, food processing plants, wastewater treatment, etc.

Technical parameters of the equipment	Unit	Model CTC13
Flow rate * Qnom	m³/h	1.70
The amount of water for regeneration **	liters	285
Minimum flow rate for rinsing	m³/h	1.7
Tank size (diameter)	inches	13
Tank size (diameter)	m	0.33
Tank volume	liters	110
The amount of filtering material	liters	70

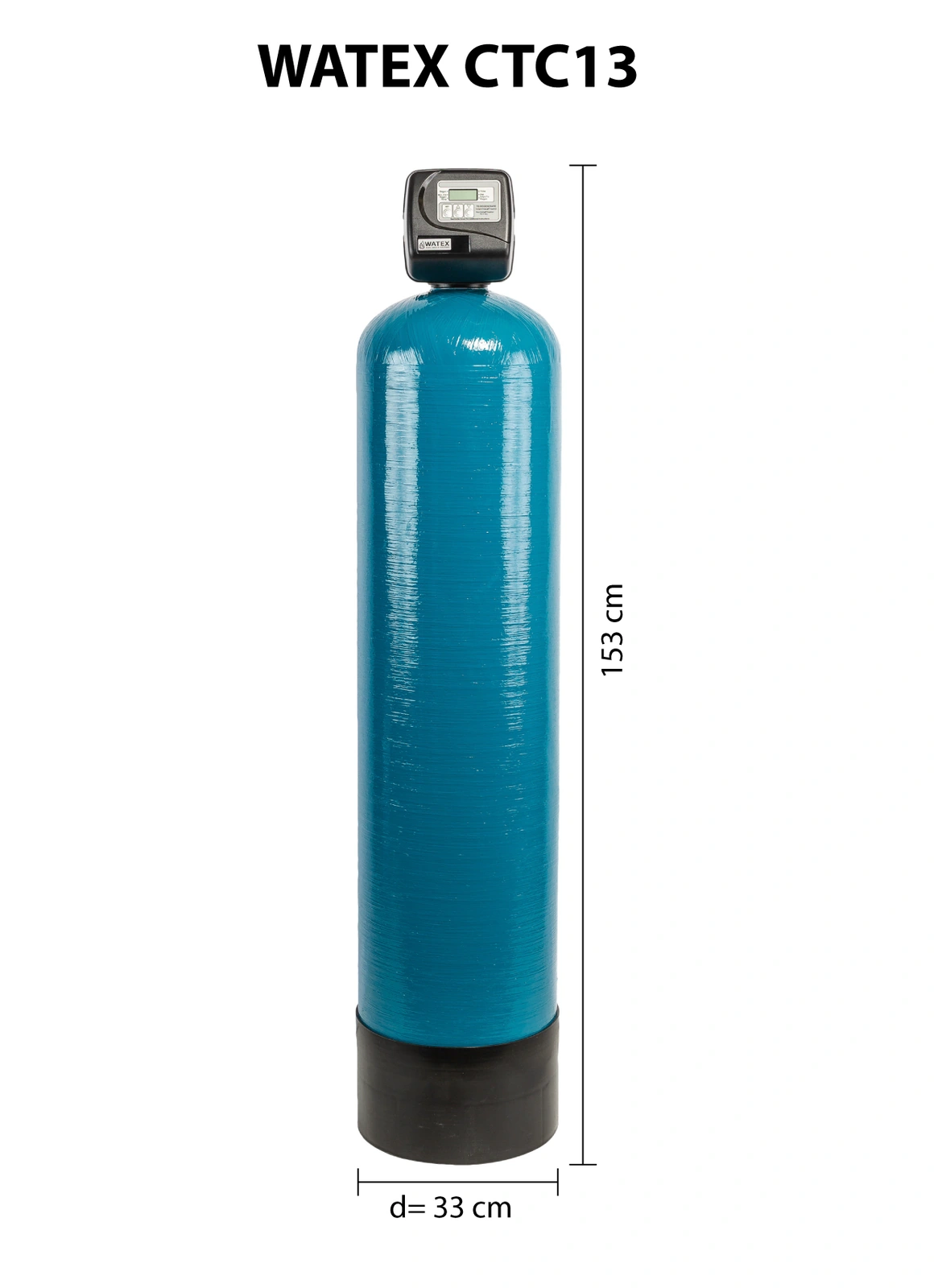

Length	m	0.33
Width	m	0.33
Height	m	1.53
Connection in./ext./kan.	inches	1"
CLACK control valve	model	WS1TC
Filtration	Odour, colour, free chlorine, turbidity etc.
Tank material	FRP (fiberglass)
Filter material	Activated carbon food grade AQUASORB CS
Underbed material	Quartz sand 1x3 mm, 3x5 mm
Operating pressure	bar	2–6
