WATEX RCMB18x2 iron removal filter
Product is in stock
Delivery time: 2-5 working days
- Lihtne lahendus 5 probleemile - hägusus, raud, mangaan, lõhn, arseen
- Regenereerimine ei nõua reaktiive - soola, kaaliumpermanganaati (KMnO4)
- Efektiivne töötamine isegi madala pH juures ja orgaaniliste ainete kõrge sisaldus
- Lihtne paigaldamine ja kasutamine
- Filtri kasutusiga on vähemalt 10 aastat
- Looduslik ja keskkonnasõbralik filtreerimine. Ei kahjusta vee kvaliteeti
- Automaatne puhastamine ja regenereerimine
- Kvaliteetsed materjalid, komponendid
- Rakenda eramajades, majades, külalistemajades, väikestes kortermajades
VEE KVALITEEDI PROBLEEM
Raud ja mangaan põhjustavad sageli veevärgi põhiprobleemi. Kui vesi puutub kokku õhuga, muudab see värvi, suureneb hägusus ja tekivad setted. Vesi on metallilise maitsega. Veetorud on ummistunud ja tarbija kanalisatsioon määrdunud.
RAKENDUS
WATEX RCMBx2 seeria filtrid on mõeldud külade, linnade ja tööstusettevõtete vee puhastamiseks hägususest, rauast, mangaanist ja lõhnast. Seda kasutatakse peamiselt põhjavee puhastamiseks.
TÖÖPÕHIMÕTE

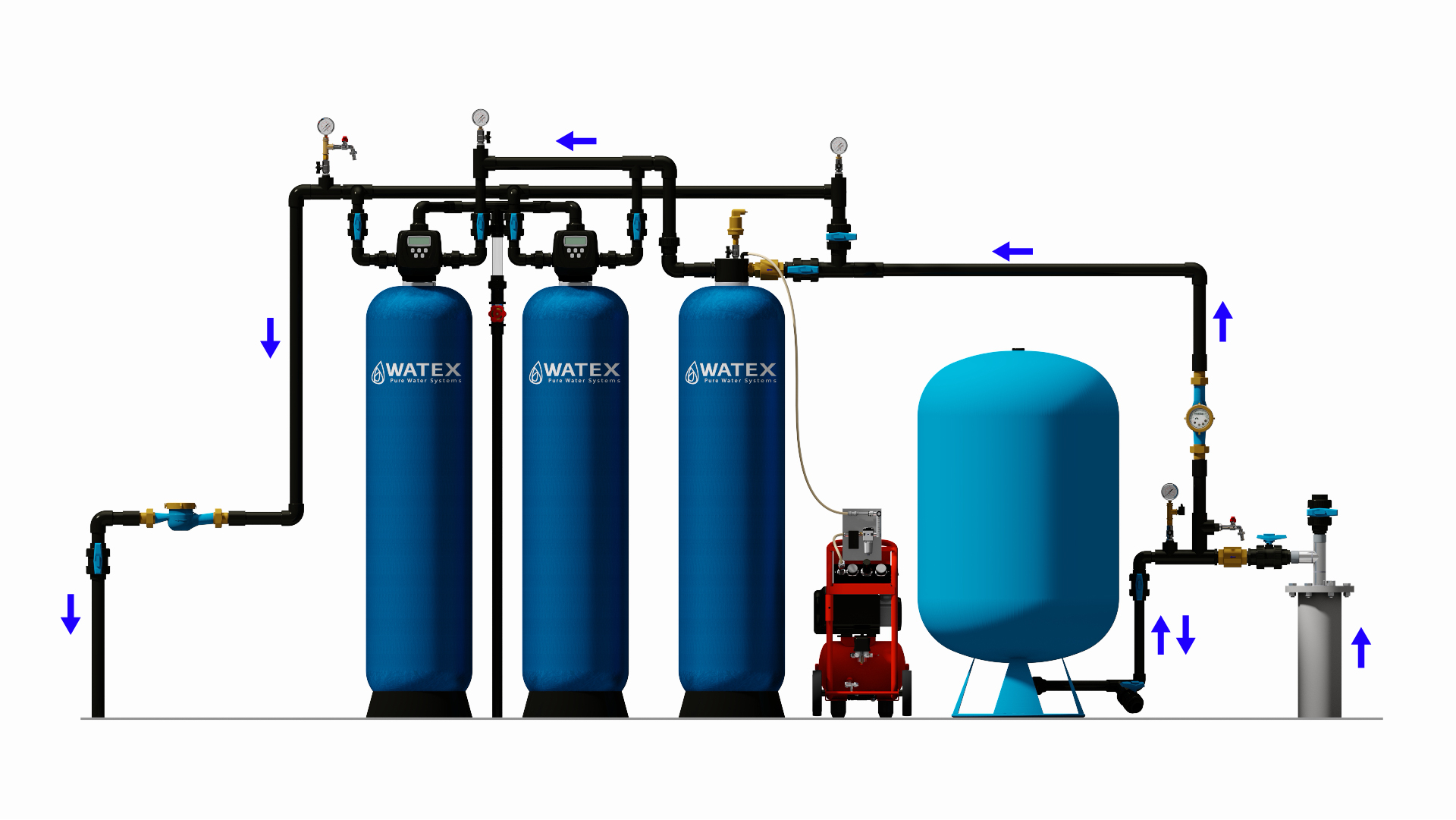

RCMBx2 filtri tööpõhimõte põhineb õhutamisel ja filtreerimisel. Vee õhutamisel moodustuvad raud, mangaan ja mehaanilised lisandid setteid, mida saab filtreerida. Suspendeerunud tahked ained filtreeritakse läbi filtreerimiskeskkonna, mis on filtrisse valatud. Sõltuvalt reostustasemest ja veetarbimisest tuleb filtreid regulaarselt loputada. Pärast loputamist filtrid regenereeritakse ja võivad vett puhastada. Seadmed koosnevad reaktorist, kahest filtrist ja kompressorist.
Technical parameters of equipment | Unit | Model |
RCMB18x2 | ||
Flow rate Qnom | m3/h | 4.0 |
The amount of water for regeneration | m3 | 0.27 |
Minimum flow rate for rinsing | m3/h | 4.0 |
Tank size (diameter) | inches | 18 |
m | 0.46 | |
| liters | 237 |
The amount of filtering material | liters | 158 |
Dimensions | ||
Lenght (L) | m | 1.68 |
Width (W) | m | 0.46 |
Height (H) | m | 1.87 |
Water - drain connection | inches | 1”-1¼”/1”-1¼”/¾” |
Filtration | Iron, manganese, turbidity, odor | |
Tank material | FRP (fiberglass) | |
Filtration media | Aqua Mandix, silica sand | |
Operating pressure | bar | 2-6 |
Electric Connection | 220V, 50Hz, 1 phase | |
Electricity consumption | W | 3 W |
PRECONDITIONS
- Sewer and electricity 220V connection
- Input water pressure with a minimum pressure of 2.5 bar
- Room temperature above 0° C
- Water temperature to 25° C
- Correct system installation
SYSTEM MAINTANANCE
Filters will provide with good quality water if operating personnel will ensure proper air supply, and unnecessary air removal and regular rinsing processes. Water purification system does not require specific chemical admixtures that have to be refilled.
PRESSURE TANK
Pressure filter tanks are made from fiberglass with inner PE coating that can hold pressure up to PN10.
FILTRATION MEDIA
For water purification filtration media AquaMandix and quartz sand with different grain size (0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm) is being used. Porous structure of AquaMandix provides a large active surface and provides efficient adsorption and accumulation of sediment.
CONTROL VALVE
The filter is equipped with an automatic Clack control valve which performs filtering and rinsing sequences automatically. Usually rinsing is performed at 2:00 at night.
AIR SUPPLY
For water aeration it is necessary to install air compressor. Air is injected in the water before it enters reactor.
ADDITIONAL EQUIPMENT OPTIONS:
- Condensate isolation for tank
- By-pass valve – For easier assembly
- Repair and maintenance kit – Spanner wrench, injectors (2 pcs.)
