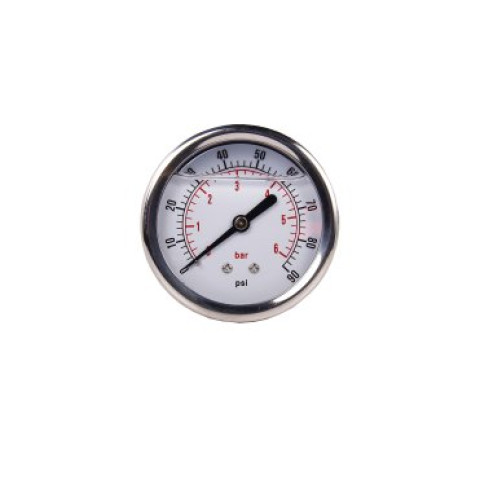

Manomeeter 6 bar glütseriiniga, 1/4", keskühendus
Toode on laos olemas
Tarneaeg: 2-5 tööpäeva
Pressure gauges are filled with glycerin to ensure that it has excellent function of impact resistance and aseismatic.
- Measurement range 0 - 6 bar

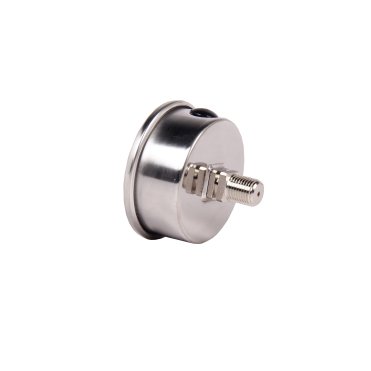

- Connection: male thread 1/4'', back connection
- Body material: stainless steel
- Connection material: brass
Working Condition of Liquid Filled Pressure Gauge
1) Ambient Temp: -5℃-+55℃
2) Working pressure is 1/3 -3/4 Max: static pressure or 1/3 - 2/3 Max. dymam is liquid pressure;
3) Relative Humidity ≤ 80%;
4) Working Vibration Frequency ≤ 25HZ; media amplitude ≤ 1mm;
5) It is required to mount the device vertically. It's forbidden to turn the device casing with hands during mounting or demounting operation
Tootefotod on illustratiivsed. Toote välimus ja konfiguratsioon võivad erineda, ilma et see mõjutaks toote tehnilisi omadusi või funktsionaalsust.

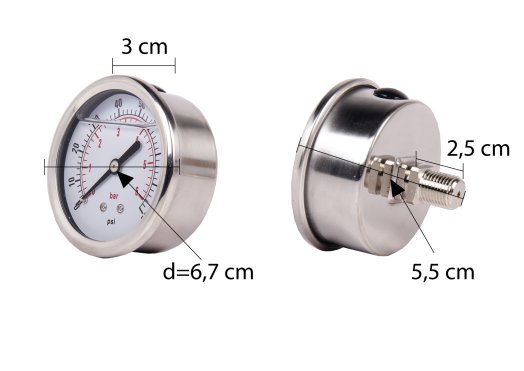

| Laius (cm) | Kõrgus (cm) | Pikkus (cm) | Kaal (kg) |
|---|---|---|---|
| 7 | 6.5 | 7 | 0.25 |
