A.R.I Air valve S-050 3/4'' BSPT PN16
Manufacturer: none
Product SKU: S-050-3/4BSPT
Price including VAT
€ 85.10
Price excluding VAT
€ 68.63
Product is in stock
Delivery time: 2-5 working days
Have questions?
Contact our specialists.
Description
Technical data
Attachments

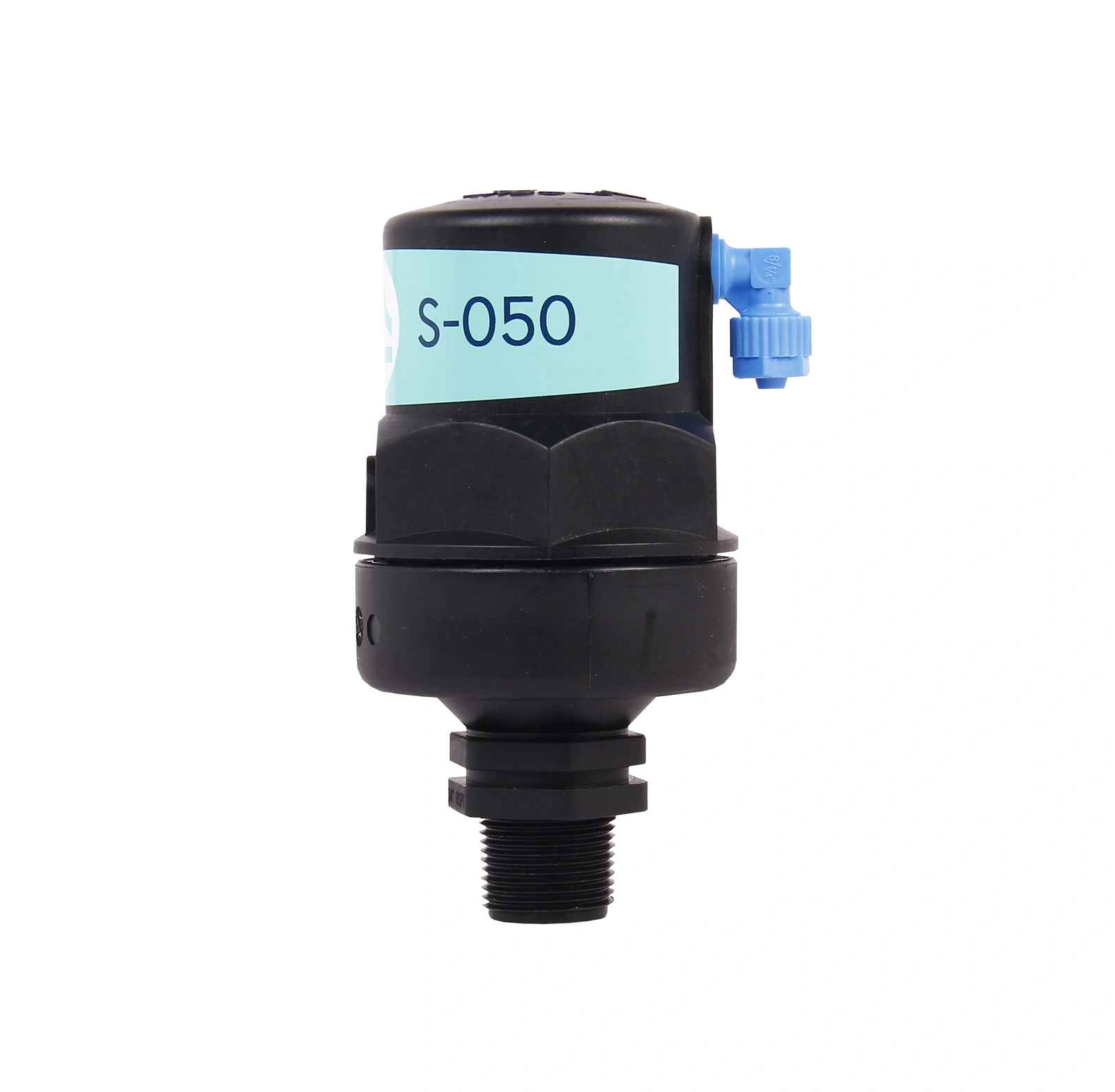

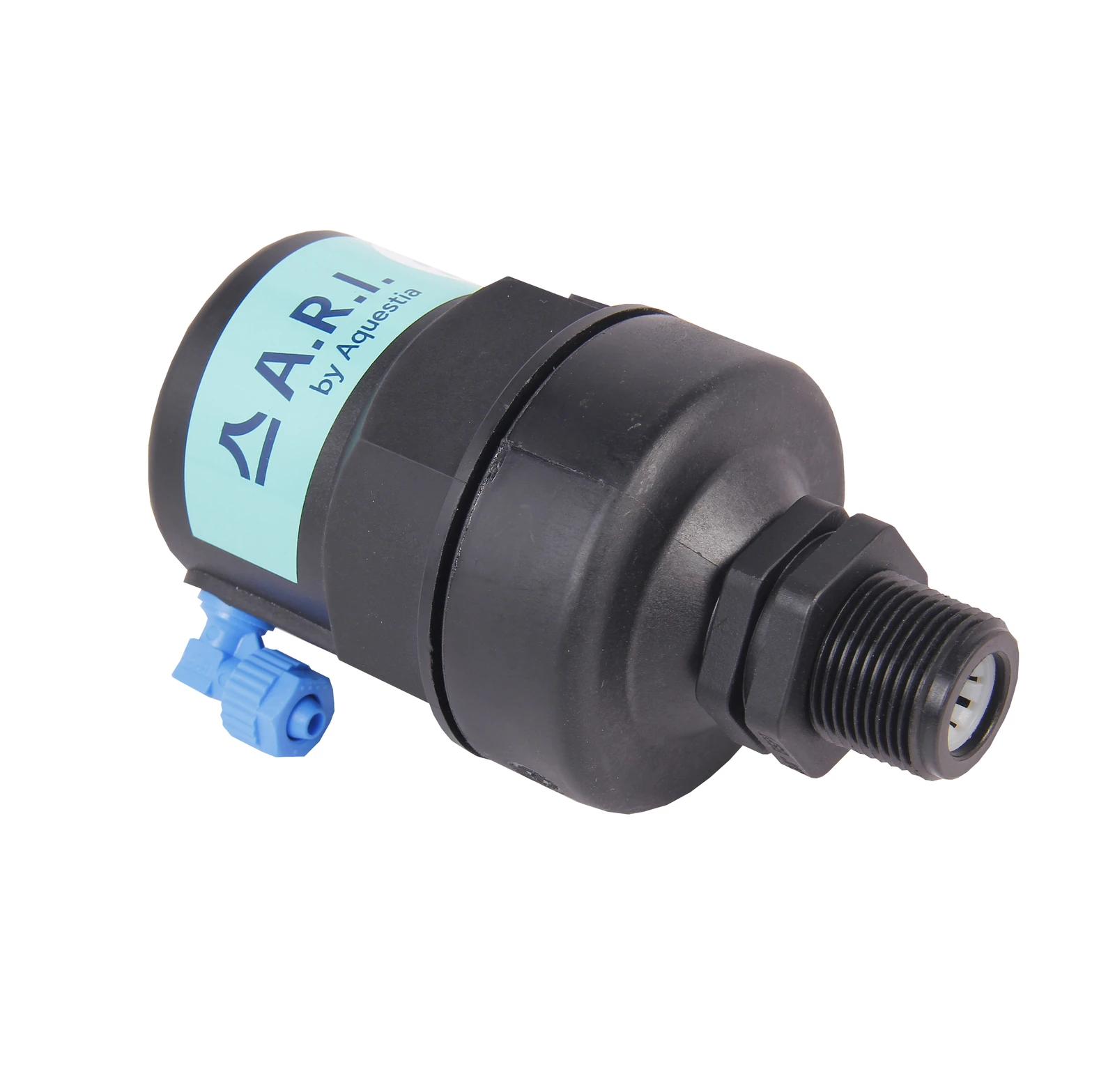

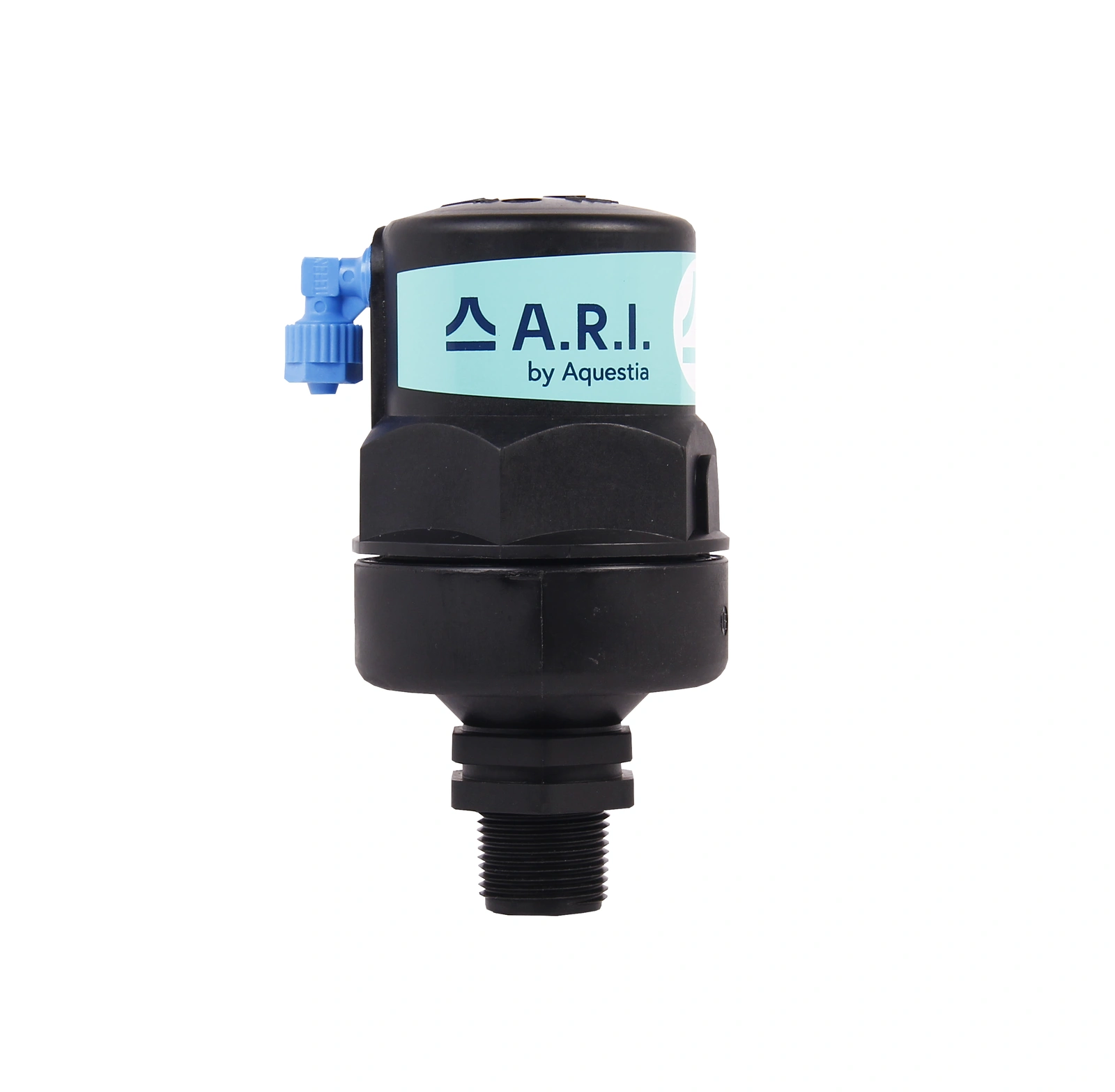

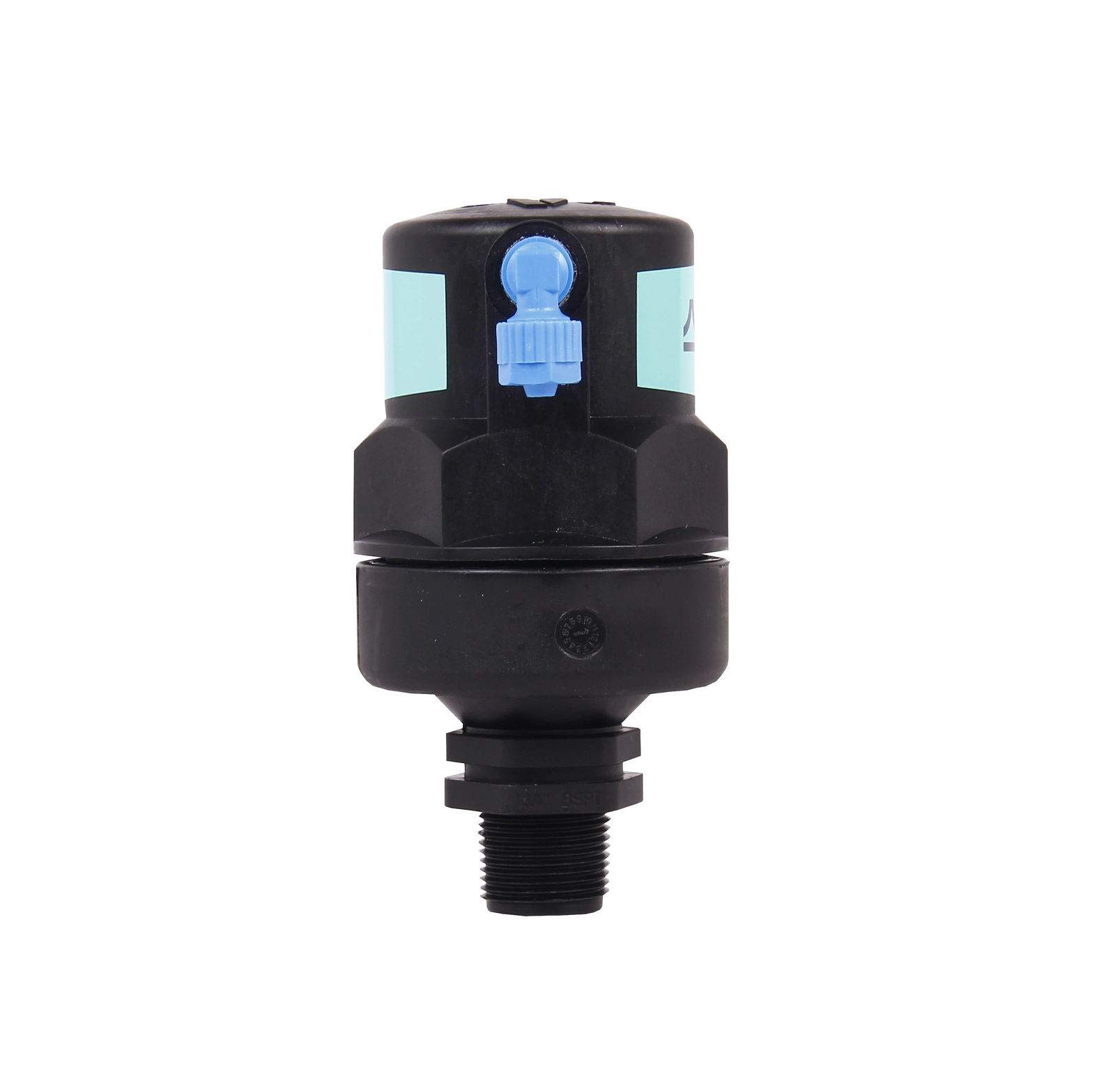

The A.R.I S-050-3/4″ air valve is designed to automatically remove accumulated air from pressurized systems.
- Single-chamber air valve, controlled directly by the flowing medium
- Releases air from pressurized systems
- Connection size: 3/4″ (BSPT connection with external thread)
- Float made of foamed polypropylene
- Housing made of high-strength composite material
- Suitable for installation on most pumps, before or after filters and pressure reducers
Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.
Technical specifications of A.R.I S-050-3/4″:
- Water connection: 3/4" male (PN 16)
- Air release connection 6 mm female
- Operating pressure: 0.2–16 bar
- Operating temperature: 60 °C
- Manufactured in Israel

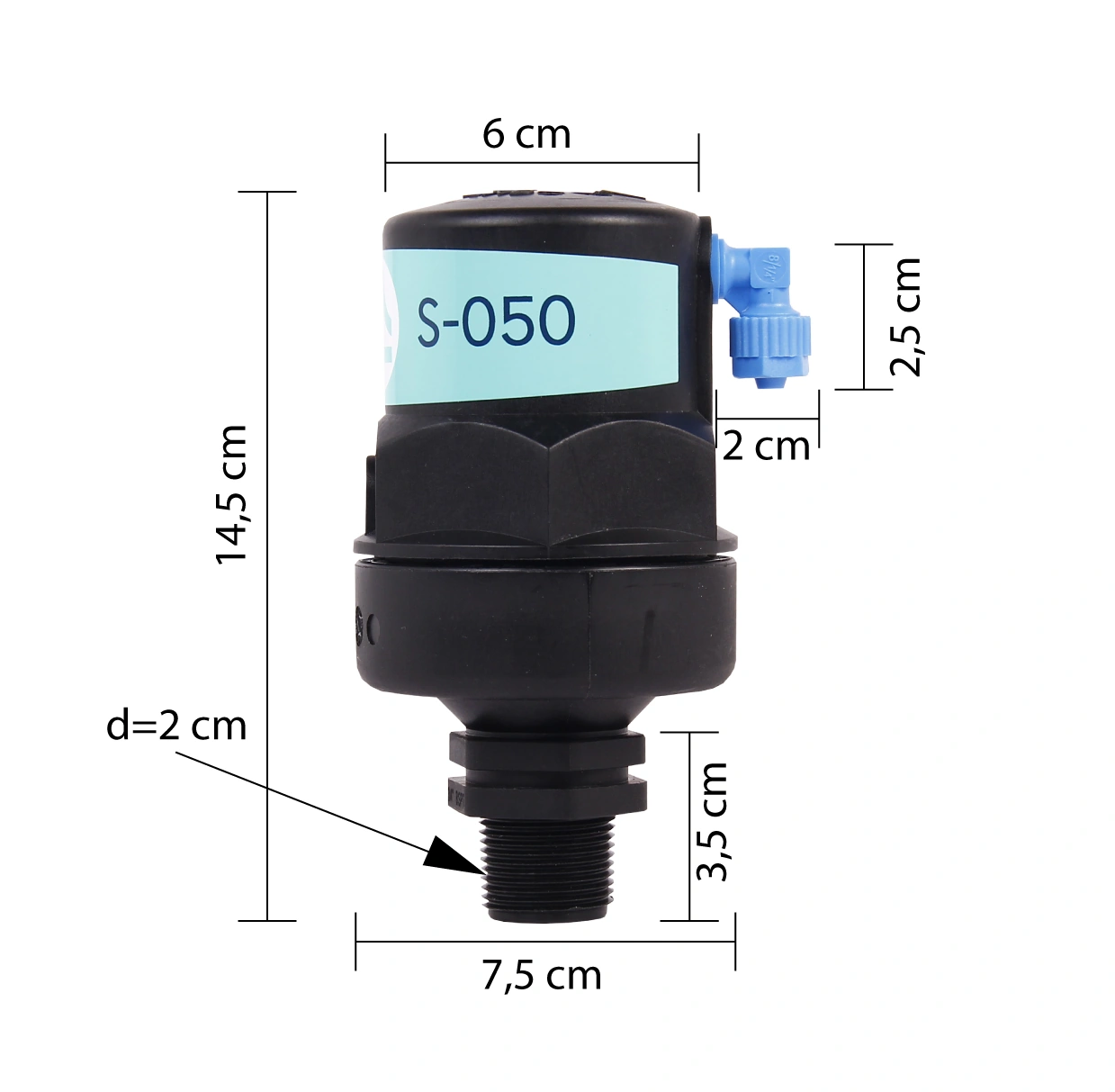

| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 7.00 | 7.00 | 14.00 | 0.30 |
