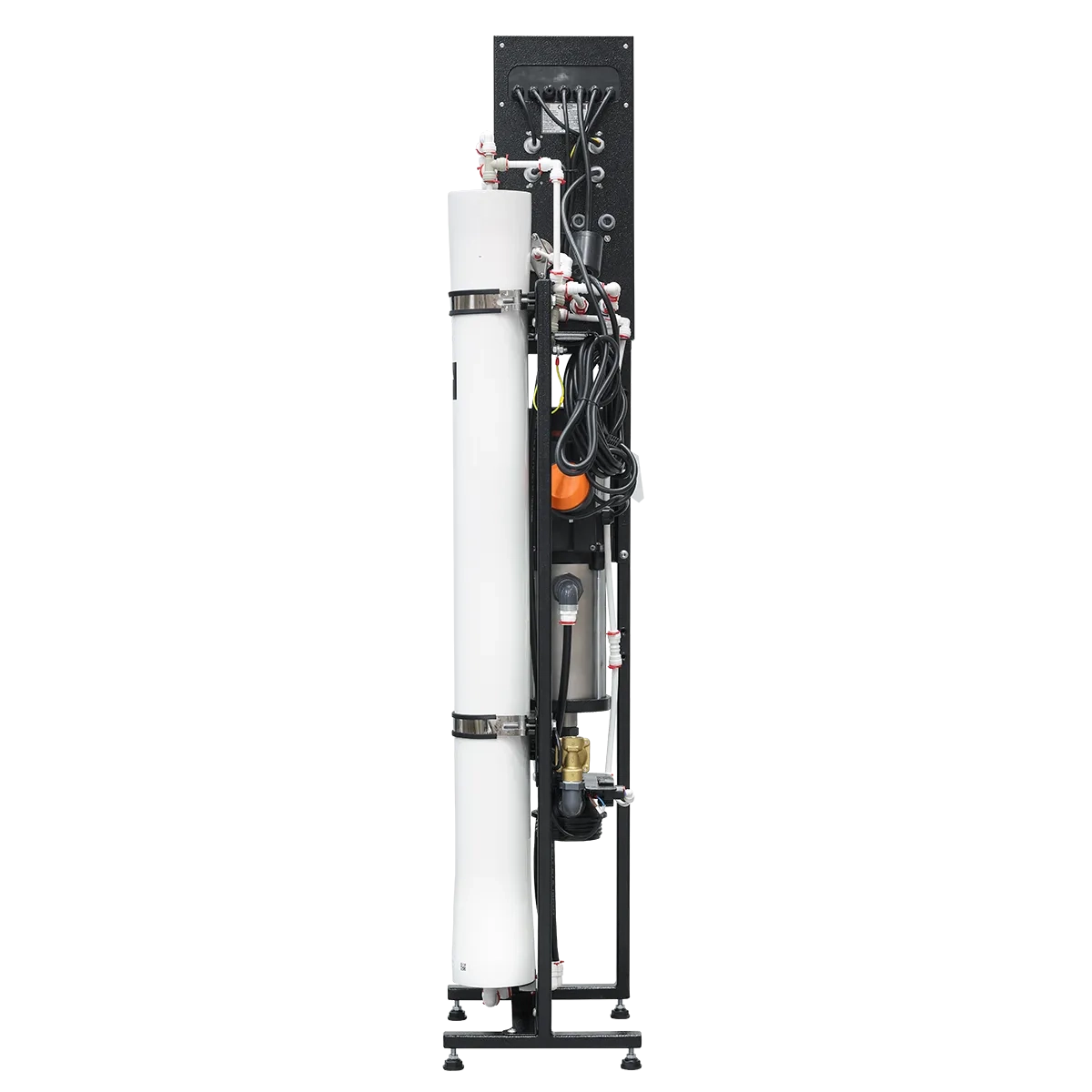

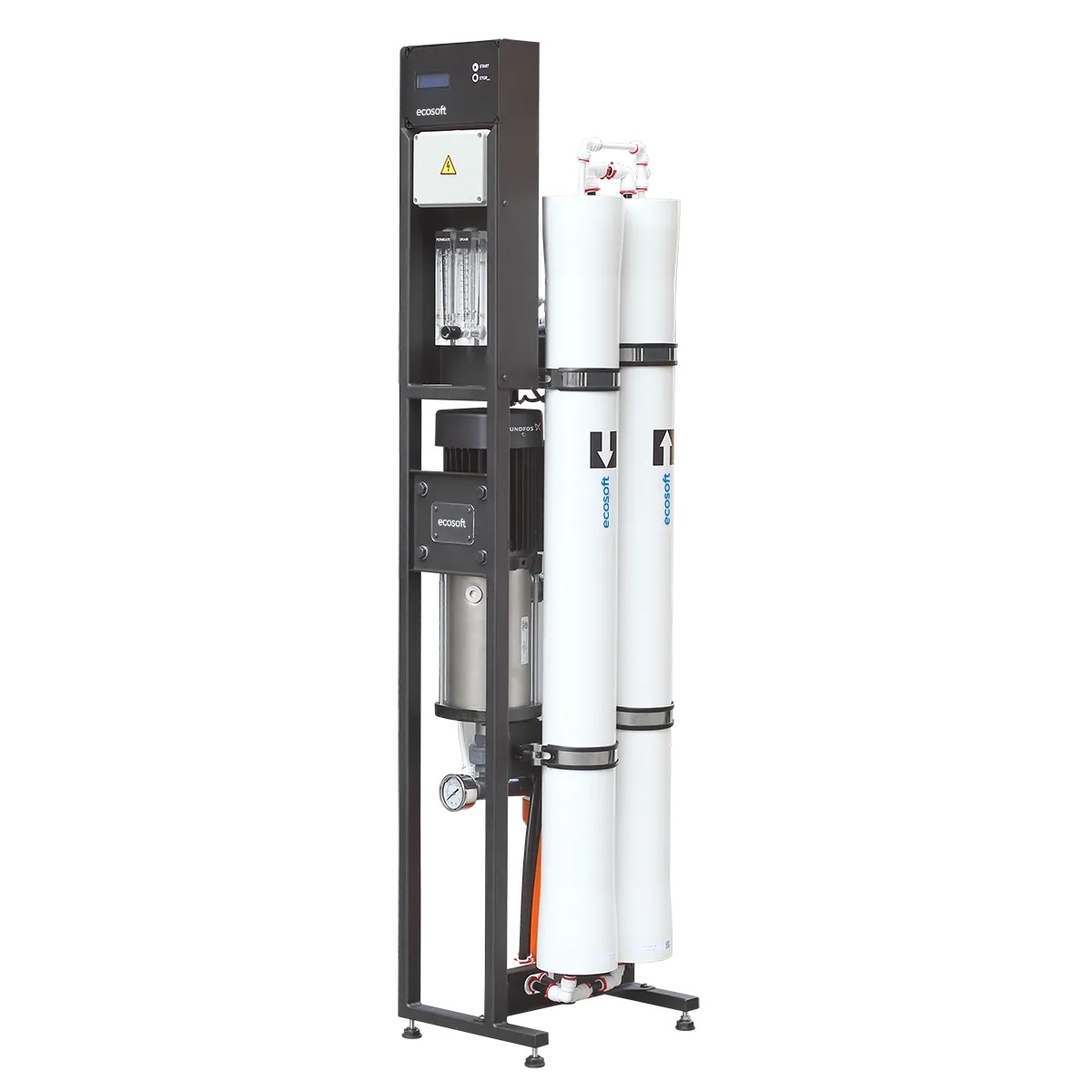

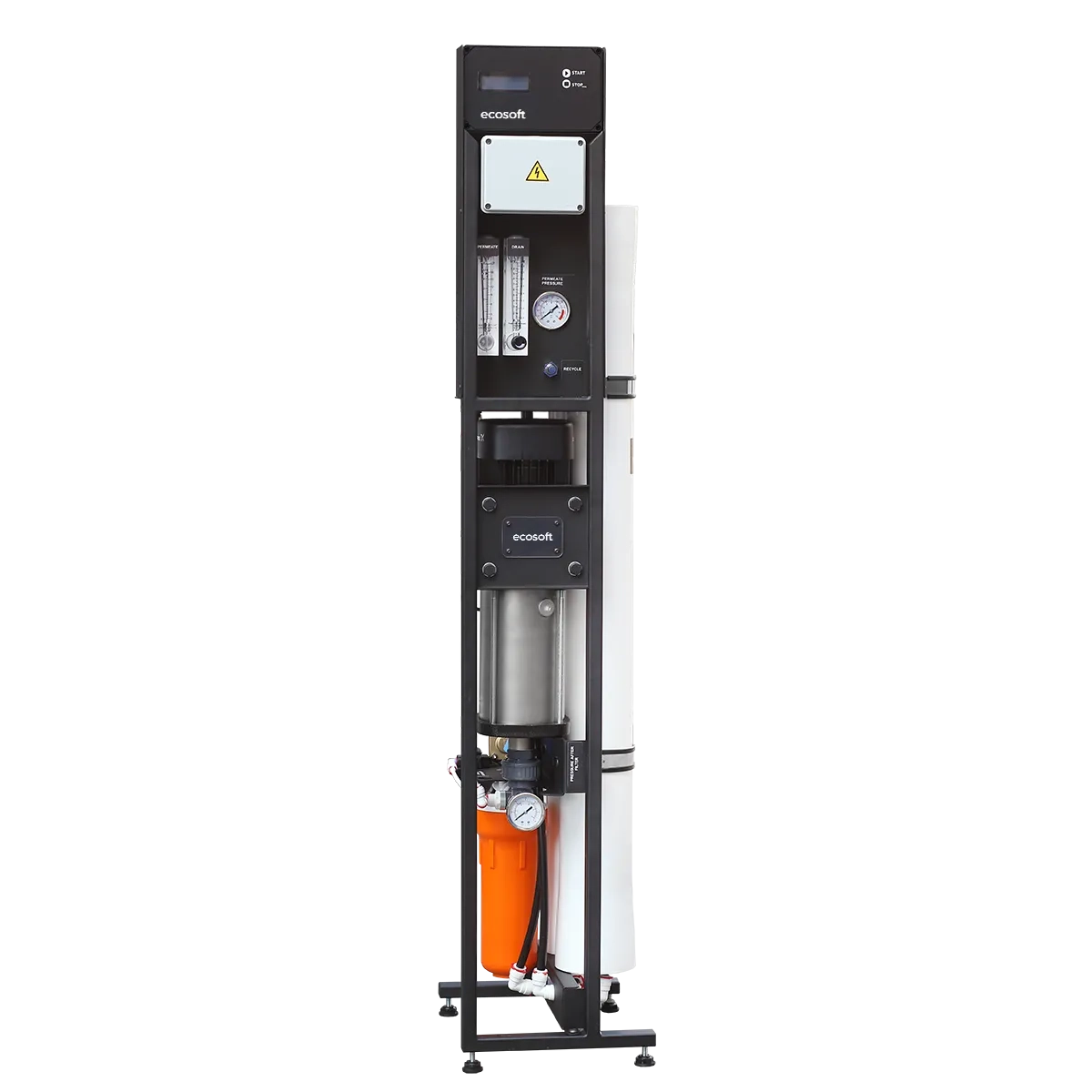

Ecosoft MO10000 4" RO System
Available on order
Delivery time: 2-5 working days
Ecosoft MO10000TP5 provides efficient water purification for commercial applications with a capacity of 12.000 liters per day. Its compact design fits into tight spaces, while the OC5000 controller ensures reliable, automated operation.
- Capacity: 10000 liters per day
- OC5000 controller with LCD interface
- Stainless steel frame and membrane rack
- Compact design for industrial use
- Grundfos pump included for stable flow
Equipment*

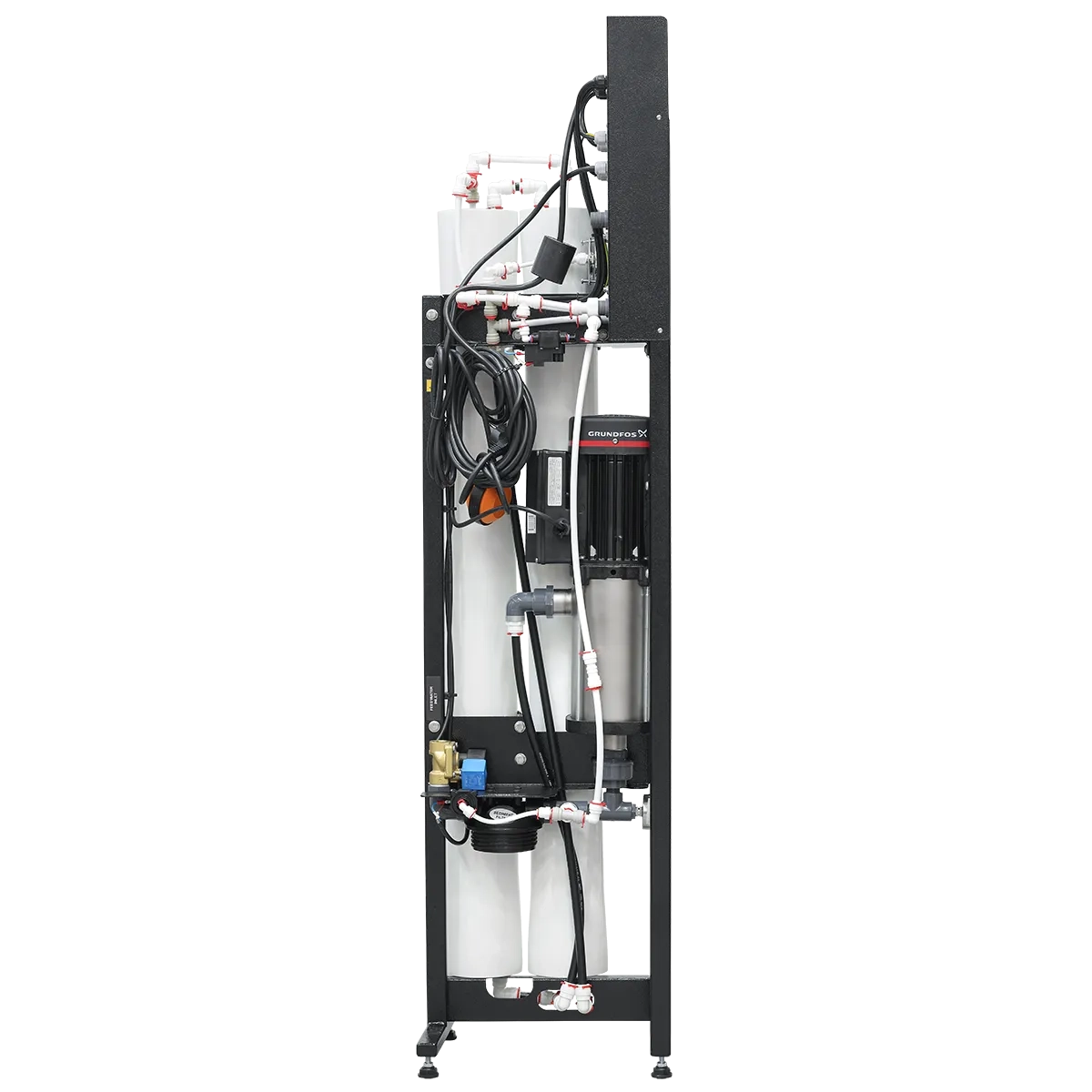

- Grundfos® CM 1-10 pump

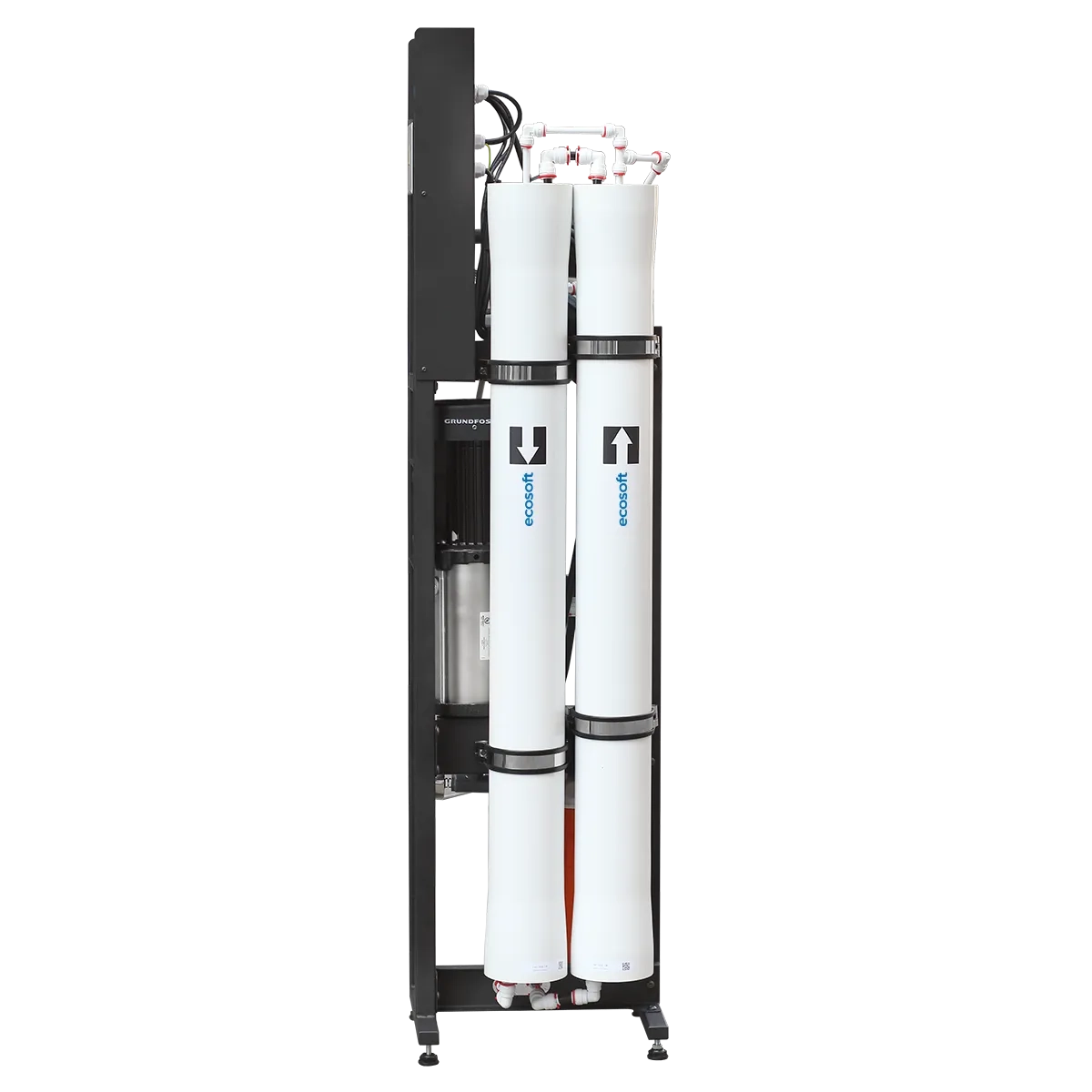

- 300 psi membrane vessel

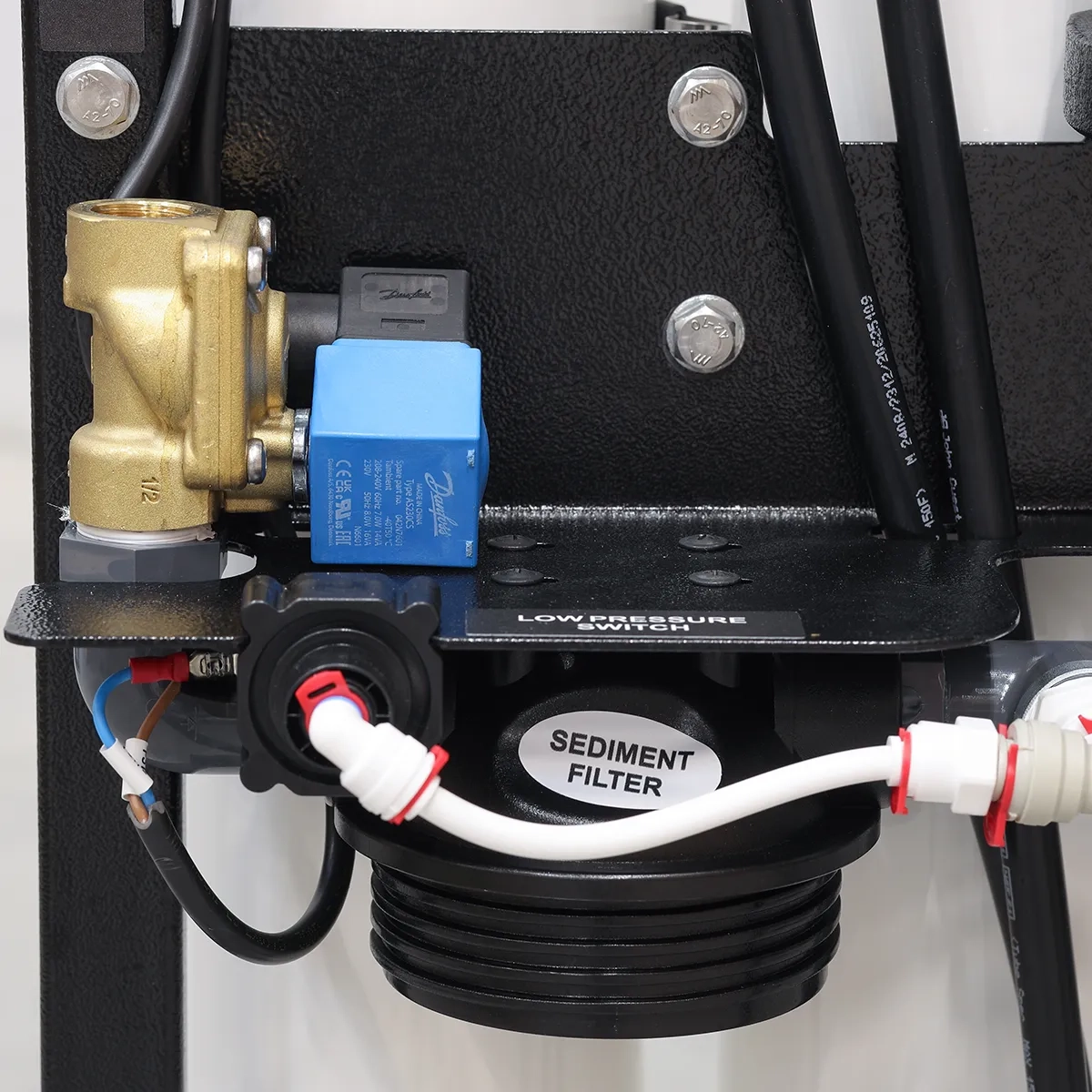

- 2.5 × 10″ sediment prefilter
- Electrical panel with Ecosoft controller

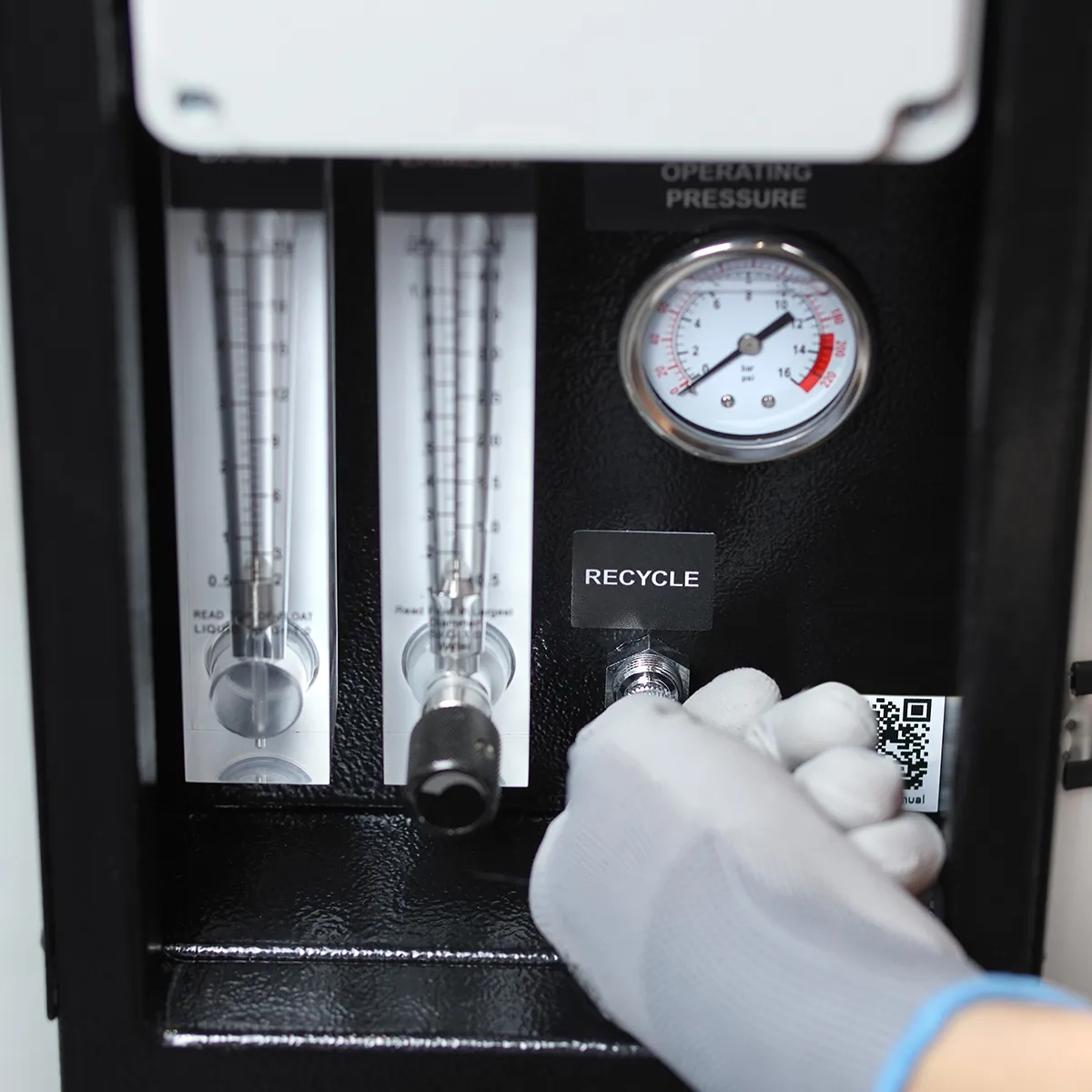

- Piping, instrumentation
- Steel frame

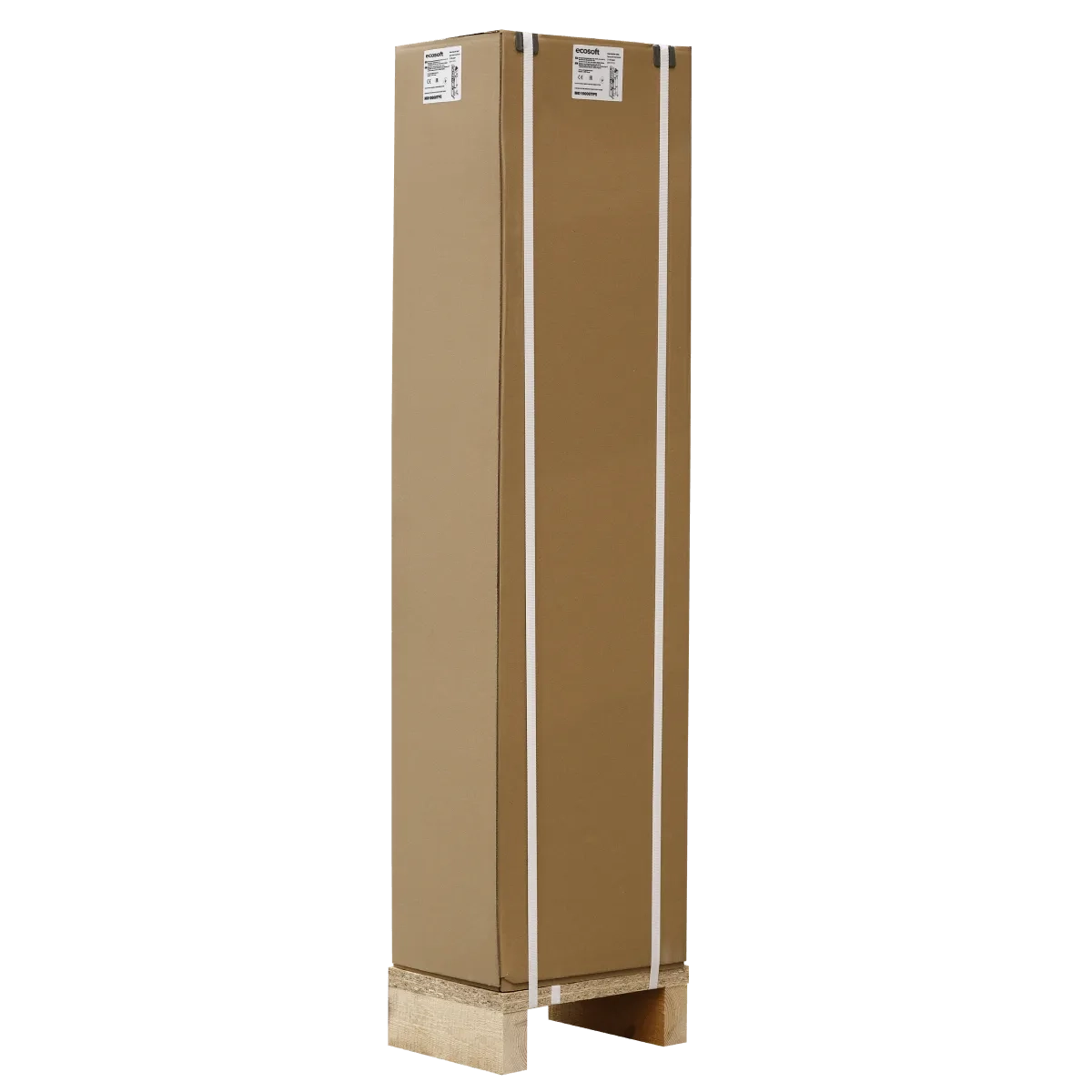

- Wooden crate
* Сonductivity sensor is not included to the system's components.
Options
- Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
Connections:
- influent water: ½"
- permeate: ½"
- concentrate: ½"

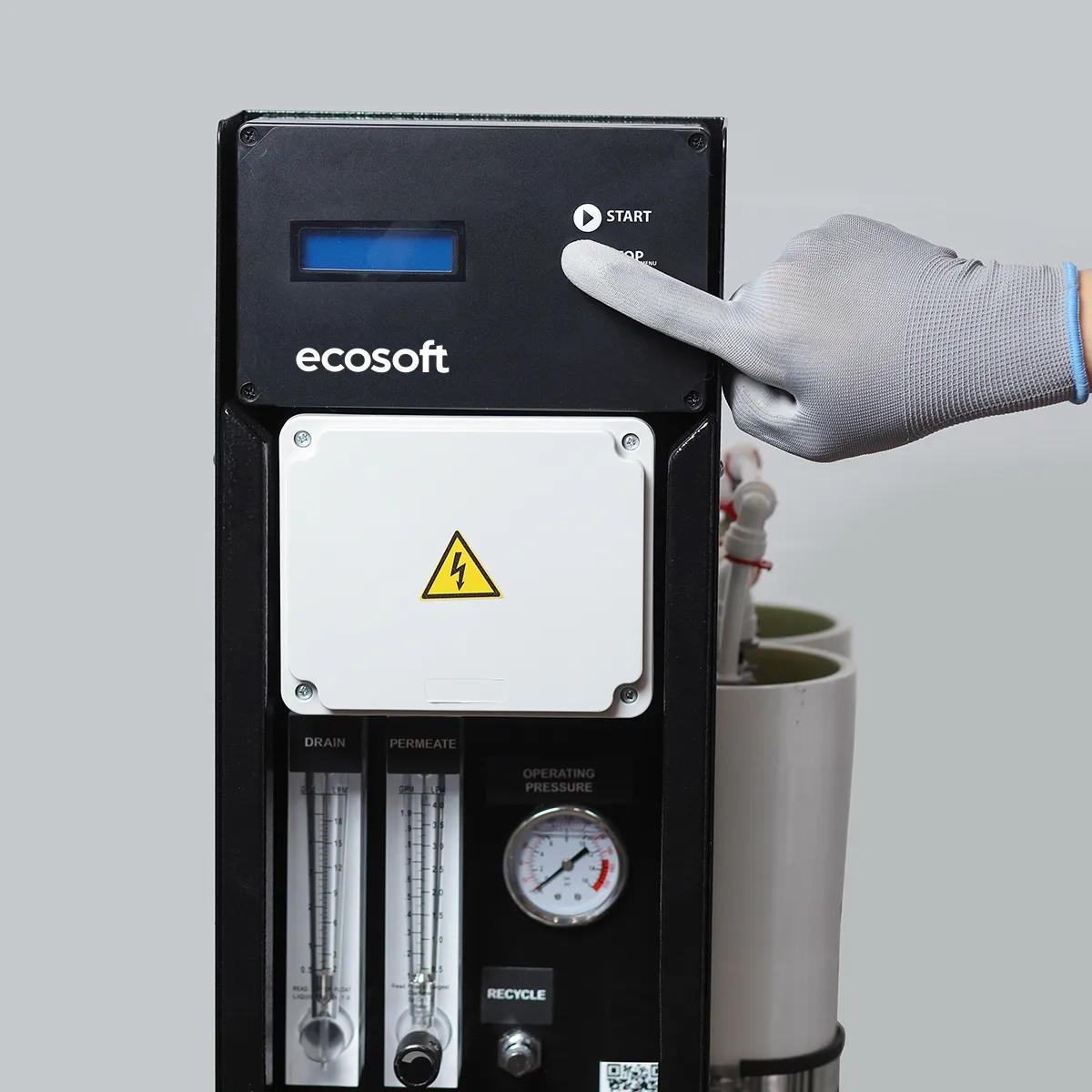

OC5000 controller
The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:
- automatic switching on and off of the equipment upon signal;
- emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
- shutdown of equipment on the external STOP signal.
Applications
- Steam boilers
- Heating and cooling circuits
- Breweries and beverage production
- Livestock and poultry farms
- Glazing factories
- Laundry and car wash
Parameter | Specification |
Permeate capacity* | 500 L/h |
Permeate recovery** | 75% |
Maximum TDS | 3000 mg/L |
Influent flow demand | 650...800 L/h (service) |
Operation pressure | 8...12 bar |
Maximum pressure | 14 bar |
Electrical requirements | 230 V, 50 Hz (1 ph) |
Electrical power | 0.7 kW |
Prefilter rating | 5 µm |
* depends on feed water TDS, temperature, and permeate recovery
** for low scaling/fouling water
Feed water requirements
| Parameter | Specification |
|---|---|
| Influent water temperature | +5...+40 °C |
| Residual chlorine, max | 0.1 mg/L |
| Hardness | up to 3 meq/L (150 mg/L CaCO₃) |
| Iron | up to 0.1 mg/L |
| Manganese | up to 0.05 mg/L |
| Silicate | up to 20 mg/L |
| Chemical oxygen demand, max | 4.0 mg O₂/L |
| Hydrogen sulfide | none |
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.

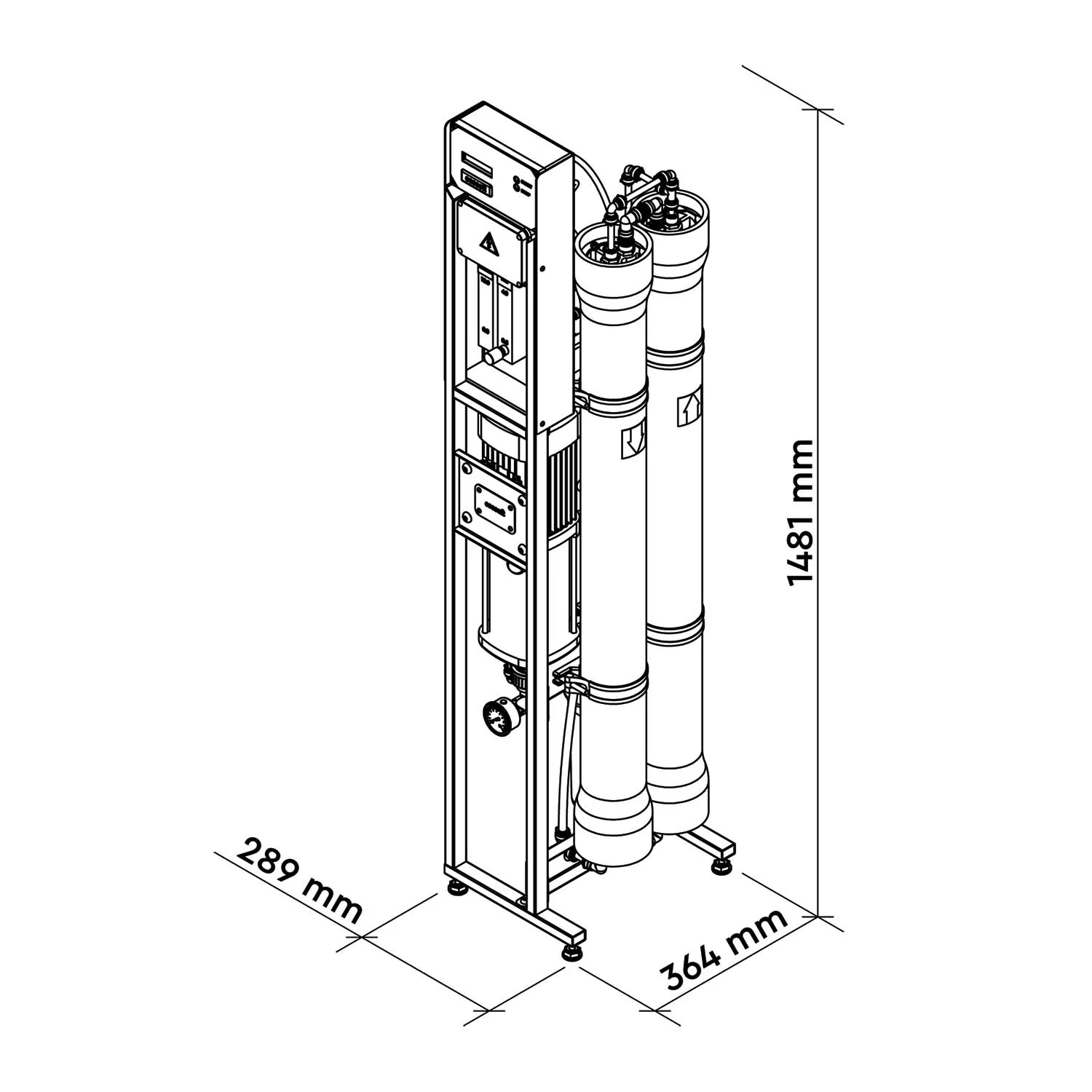

| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 28.9 | 148.1 | 36.4 | 65 |
By clicking on the following links, you can view and download:
Manual for Ecosoft MO10000 4" RO System
