WATEX WRO200 reverse osmosis system 200 lph
Out of stock
Delivery time: 2-5 working days

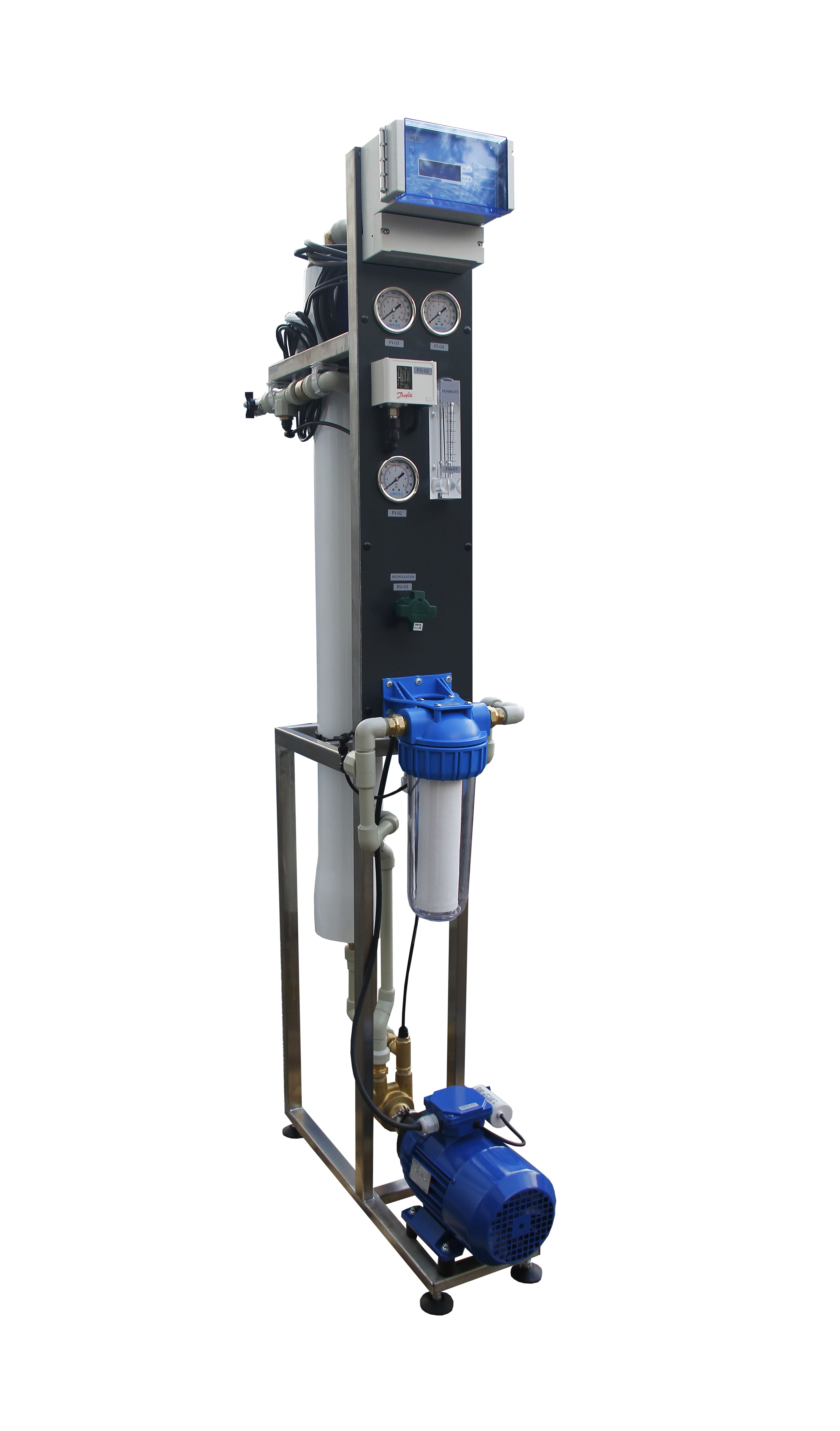

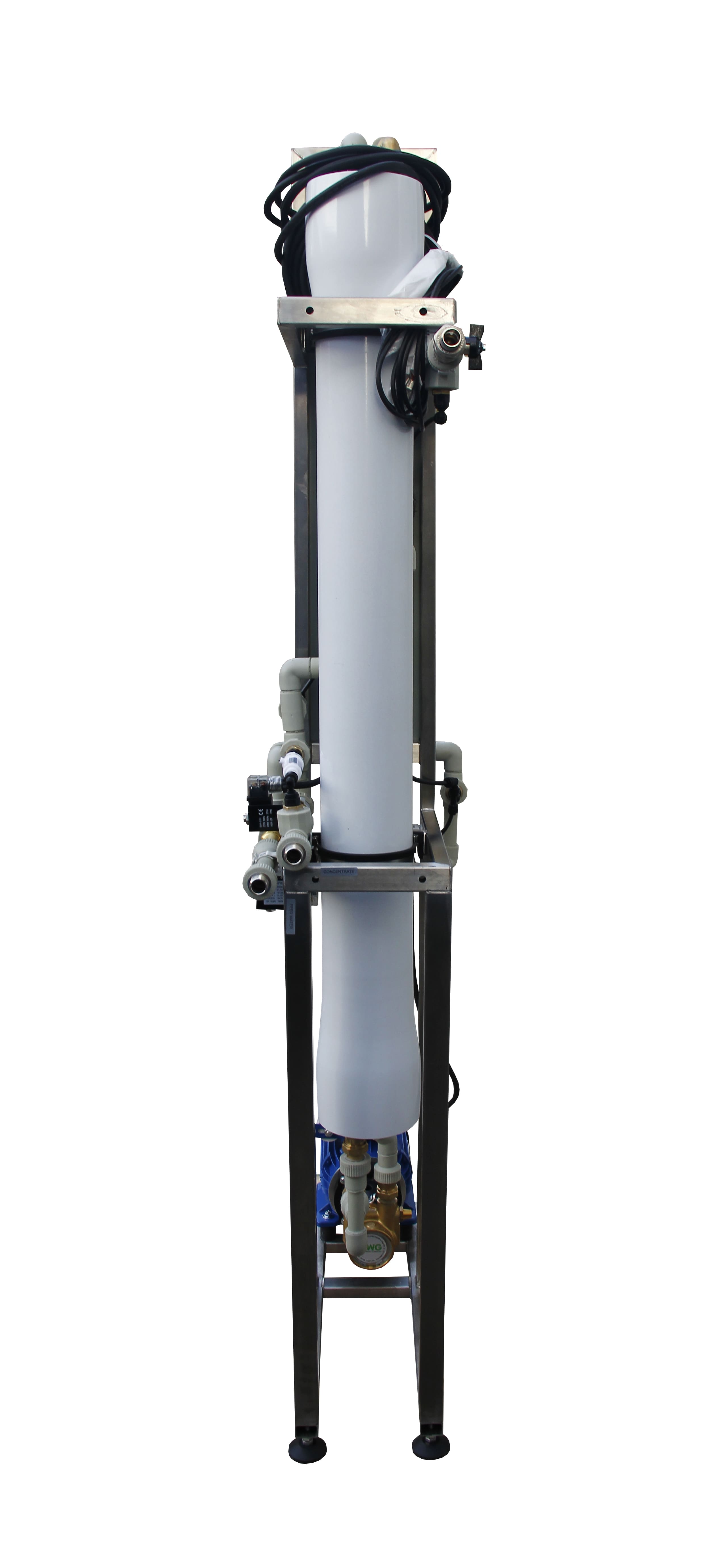

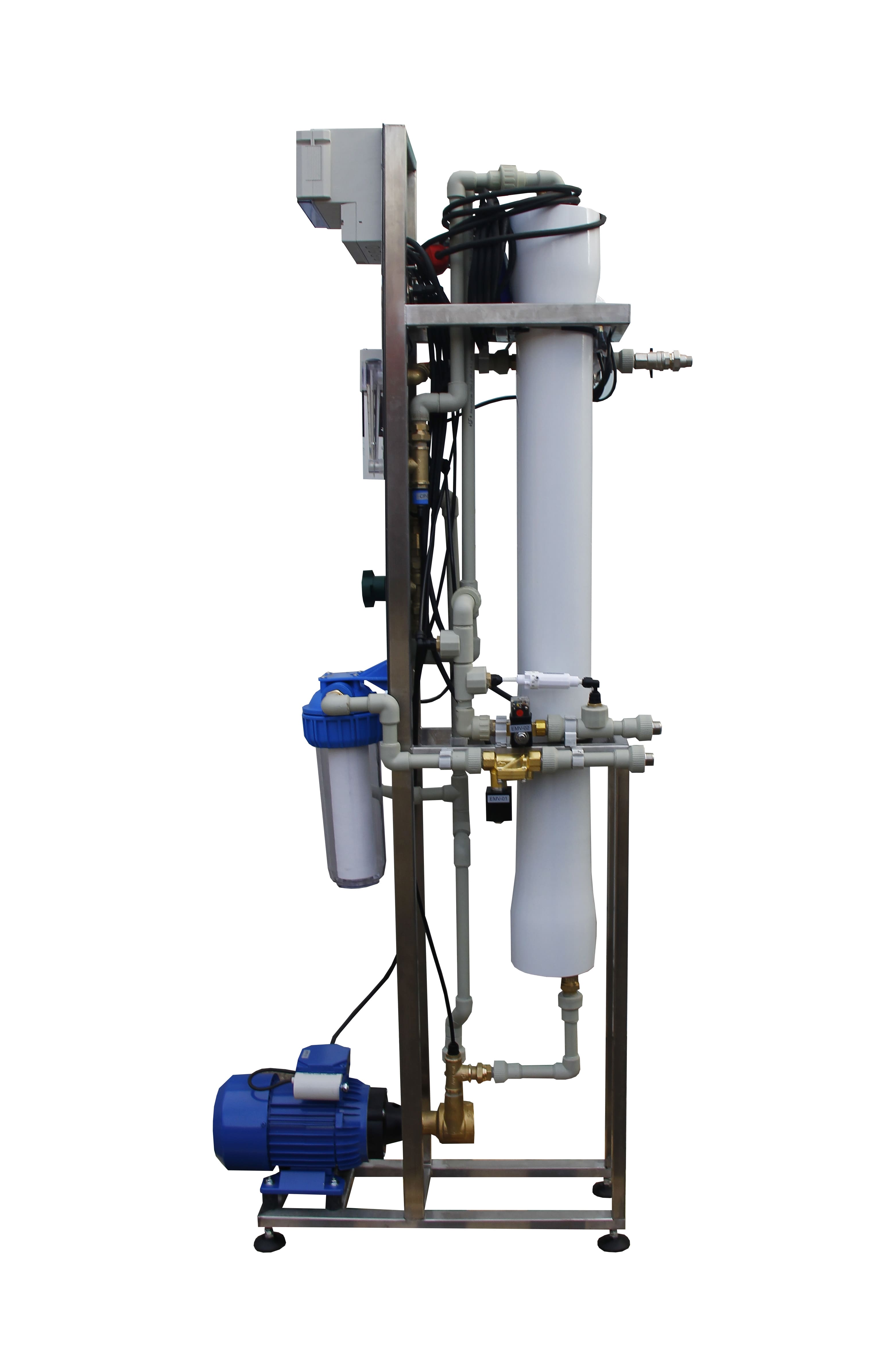

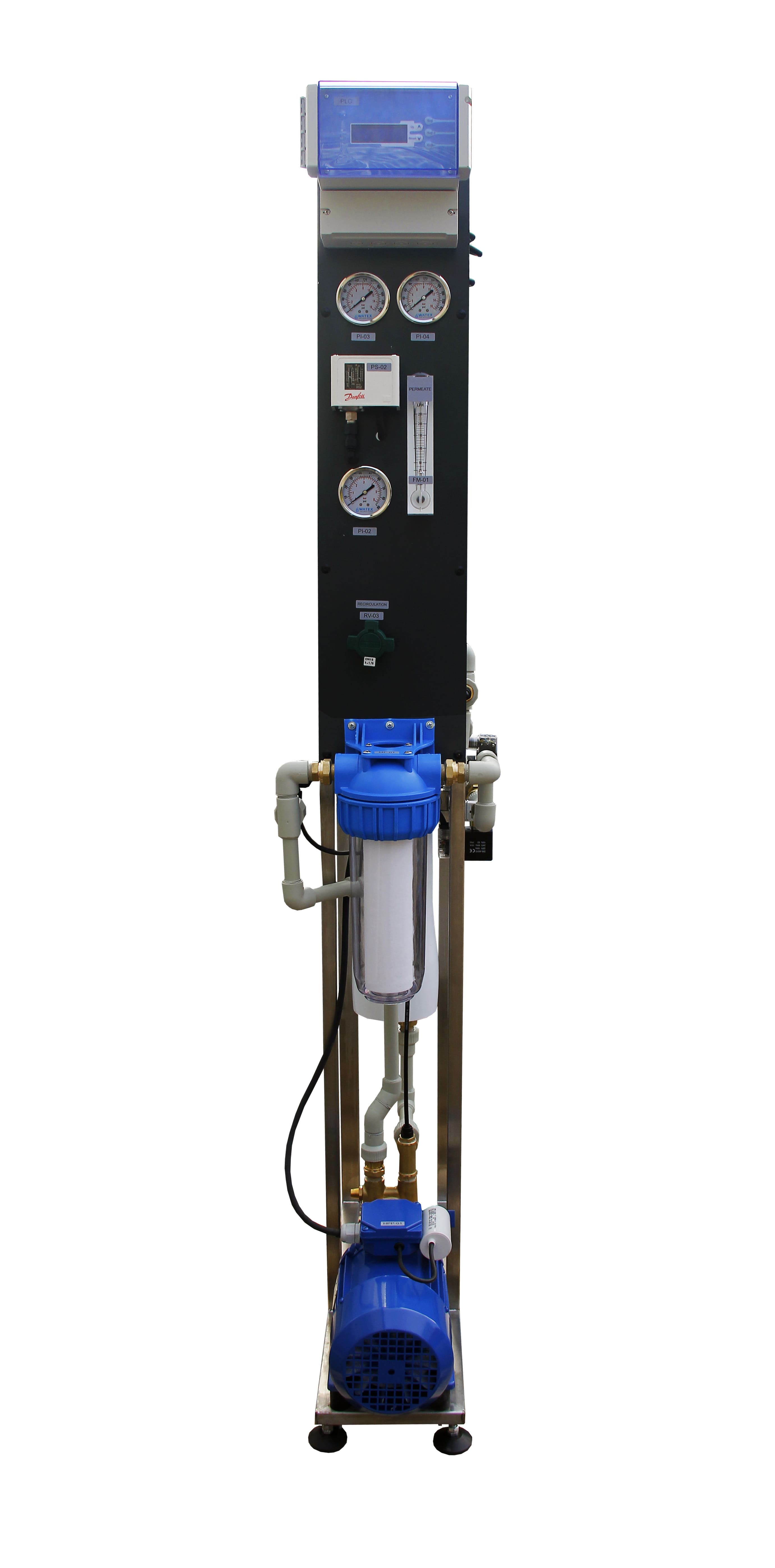

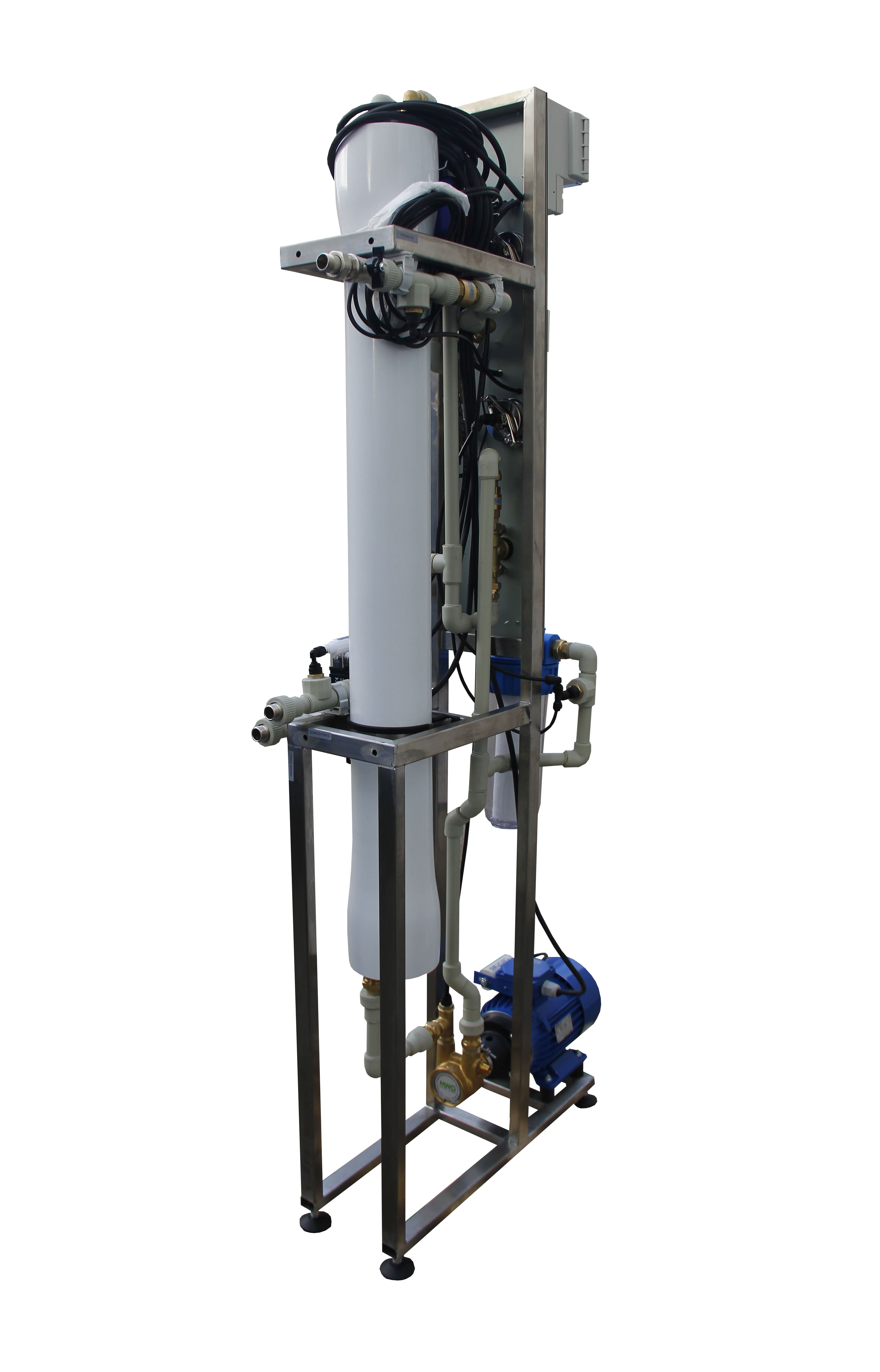

WATEX WRO200 reverse osmosis system
Advantages: extra compact, high quality performance, competitive price
Reverse osmosis system for brackish water with flow rate 200-250 liters/hour.
WATEX WRO series reverse osmosis systems are used for low mineralised water (up to 4000 ppm) with different flow rates.
Reverse osmosis system purify water from 99.2% of salts, pyrogenic substances and microorganisms.
Permeate quality and flow rate depends on intake water salt concentration, temperature, applied pressure, membrane selection and pretreatment.
Quality and operation control system:
- On-line conductivity meter 0-500 microS/cm
- Inlet water low pressure switch and alarm
- Permeate high pressure switch

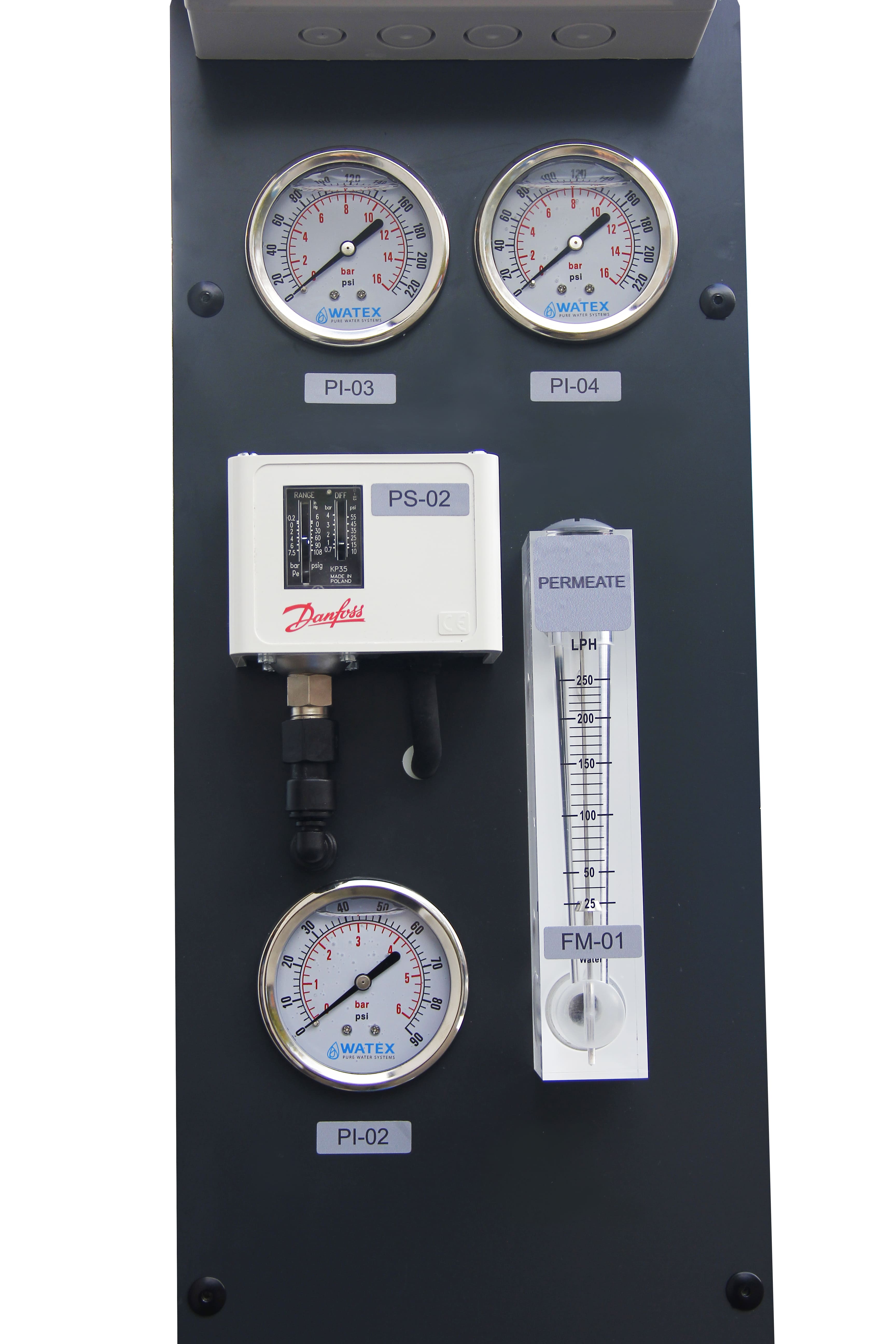

- Pressure indicators (inlet, after pump, concentrate)
- Permeate flow meter
- Concentrate drain flow regulation
- Pump pressure regulation valve
- Water leakage alarm and shut-off
- High conductivity alarm

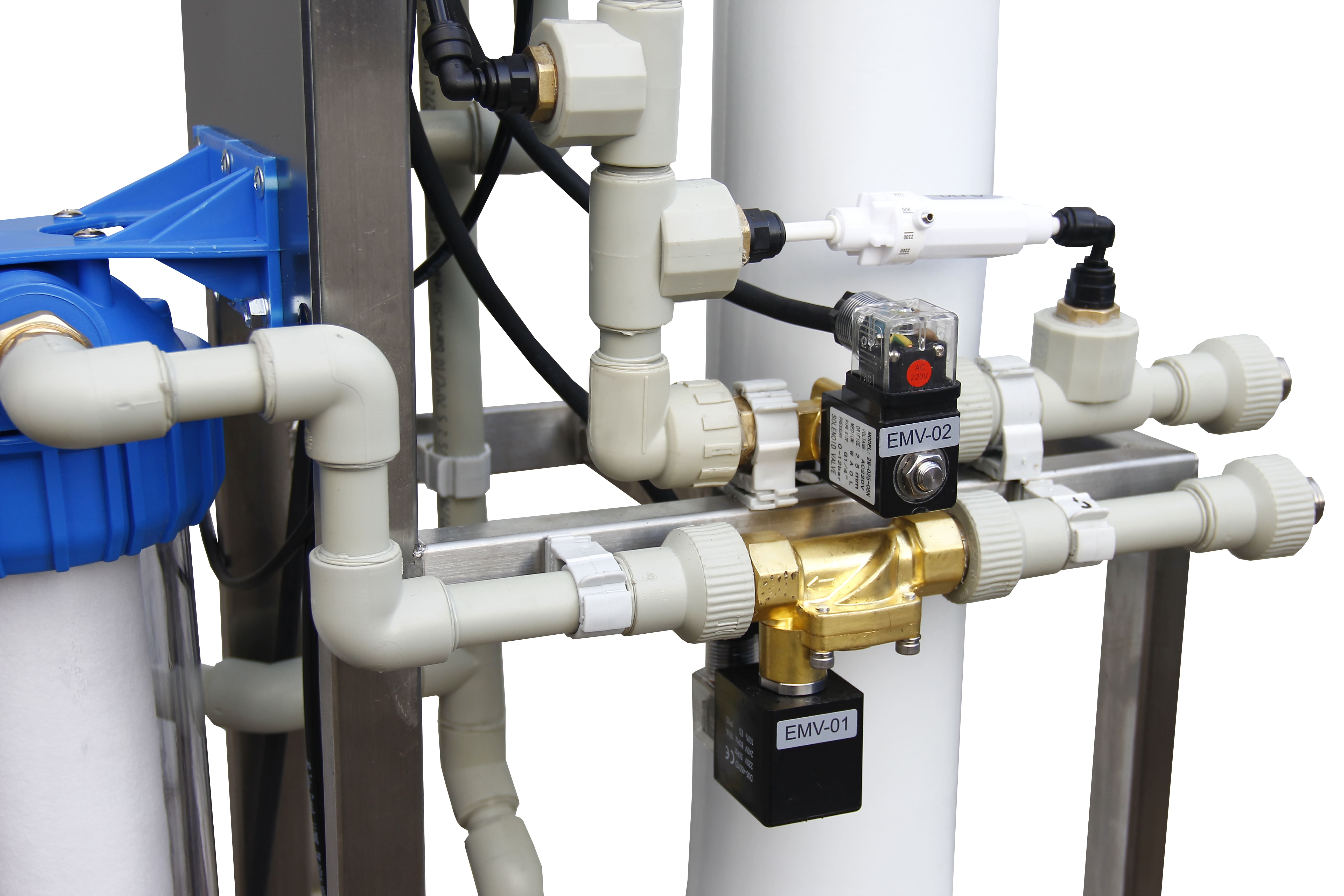

- Automatic/manual flushing system
- Recirculation/recovery regulation
Notes:
- Data based on following parameters: 1500 mg/l NaCl solution at 10 bars, 5-9oC, Salt rejection 99.2%, SDI<3 brackish and low-mineralized water
- Pretreatment required: sediment filtration, iron removal, softening or antiscalant dosing, adsorption by activated carbon if chlorine presence
- Clean water reservoir minimum 200 liters required after reverse osmosis system
Optional features
- Antiscalant dosing system
- PLC operating controller
- Temperature switch
- Stainless steel pipes and fittings (AISI304, AISI316)
- Pretreatment built-in
- Dry-run protection of the reverse osmosis pump
To receive quotation, please fill RO order form watex_wro_order_form.pdf and send it to: info@watex.eu
<!--[if gte mso 9]>
Technical parameters | Unit | Model |
WATEX WRO200 | ||
Flow rate * Qnom | liters/hour | 200-250 |
Flow rate * Qmax | liters/day | 4800 |
Recovery max | % | 70 |
Operating pressure max | bar | 15 |
System size (Length x Width x Height) | cm | 50 x 20 x 160 |
Power consumption | W | 550 |
Membrane element model&quantity |
| CSM RE4040-BLN x 1 |
Water - drain connection | inches | 3/4'', 1/2'', 1/2'' |
Weight | kg | 40 |
System frame | Stainless steel AISI304 | |

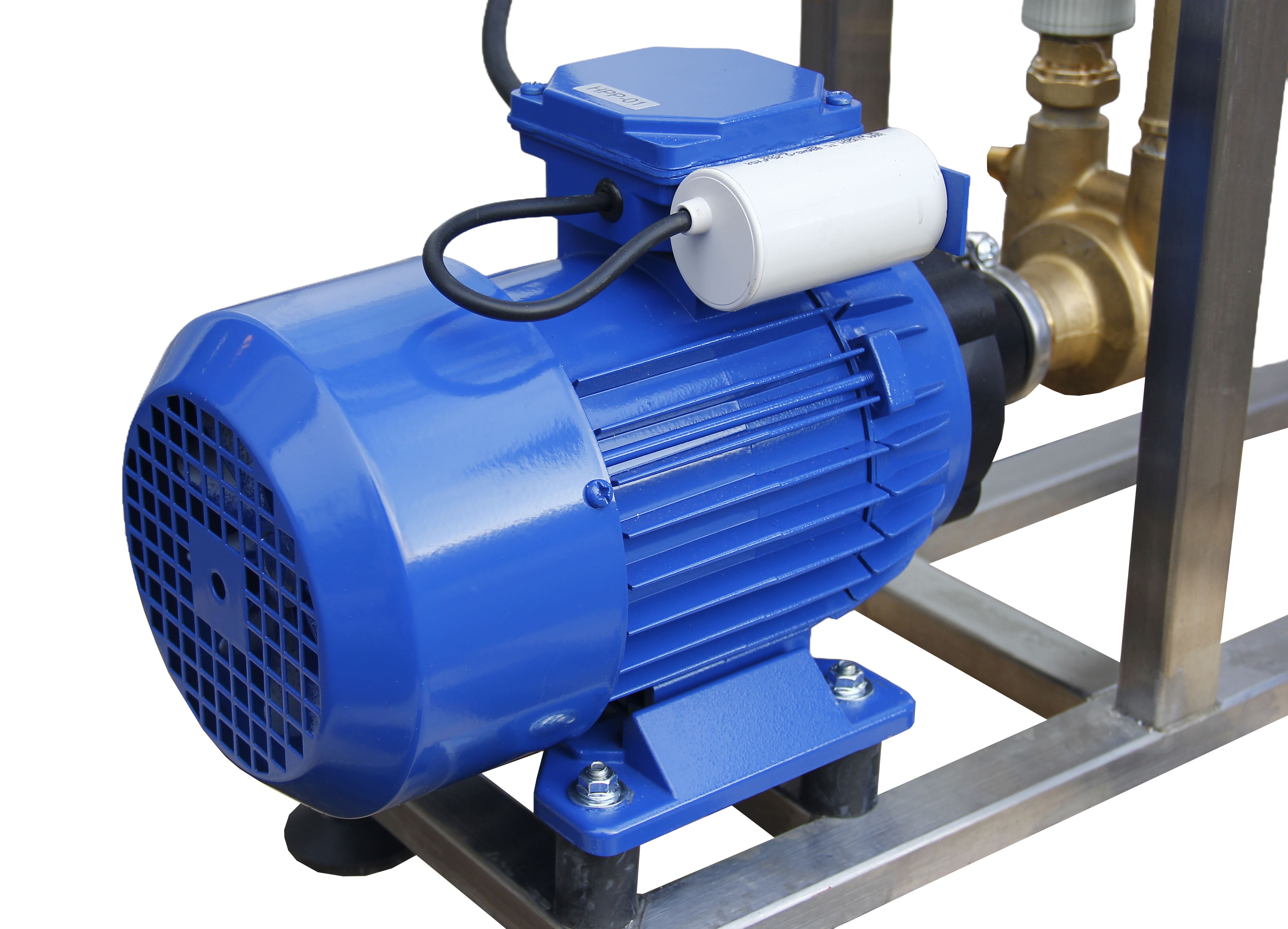

High pressure pump | MWG | |
Quality control | Electrical conductivity, low pressure alarm system | |
Control system | Pressure switches, manometers, flow meters, regulating valve | |
Piping system | PVC-U fittings and piping PN16 | |
Inlet sediment filter | PP 5 micron cartridge |
* Permeate (purified water) productivity and quality depends on water temperature, water pressure, membrane model and water pre-treatment
"
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 50 | 160 | 20 | 40 |
