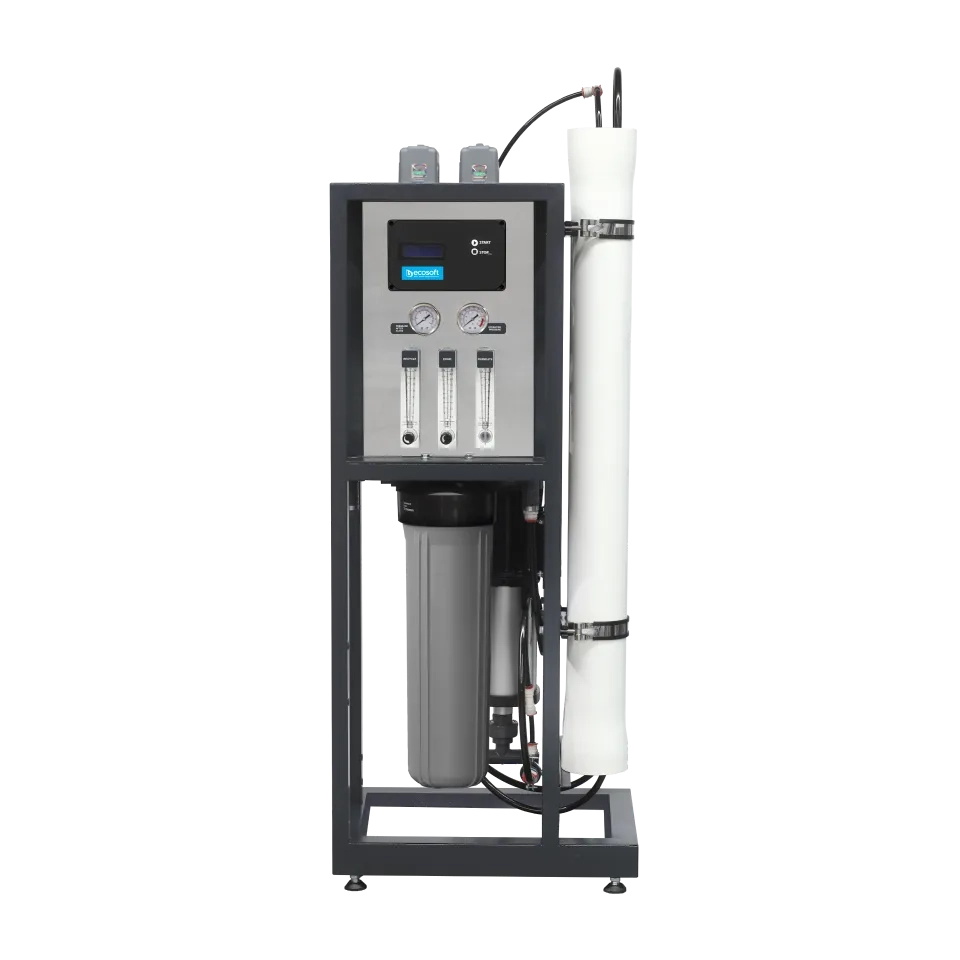

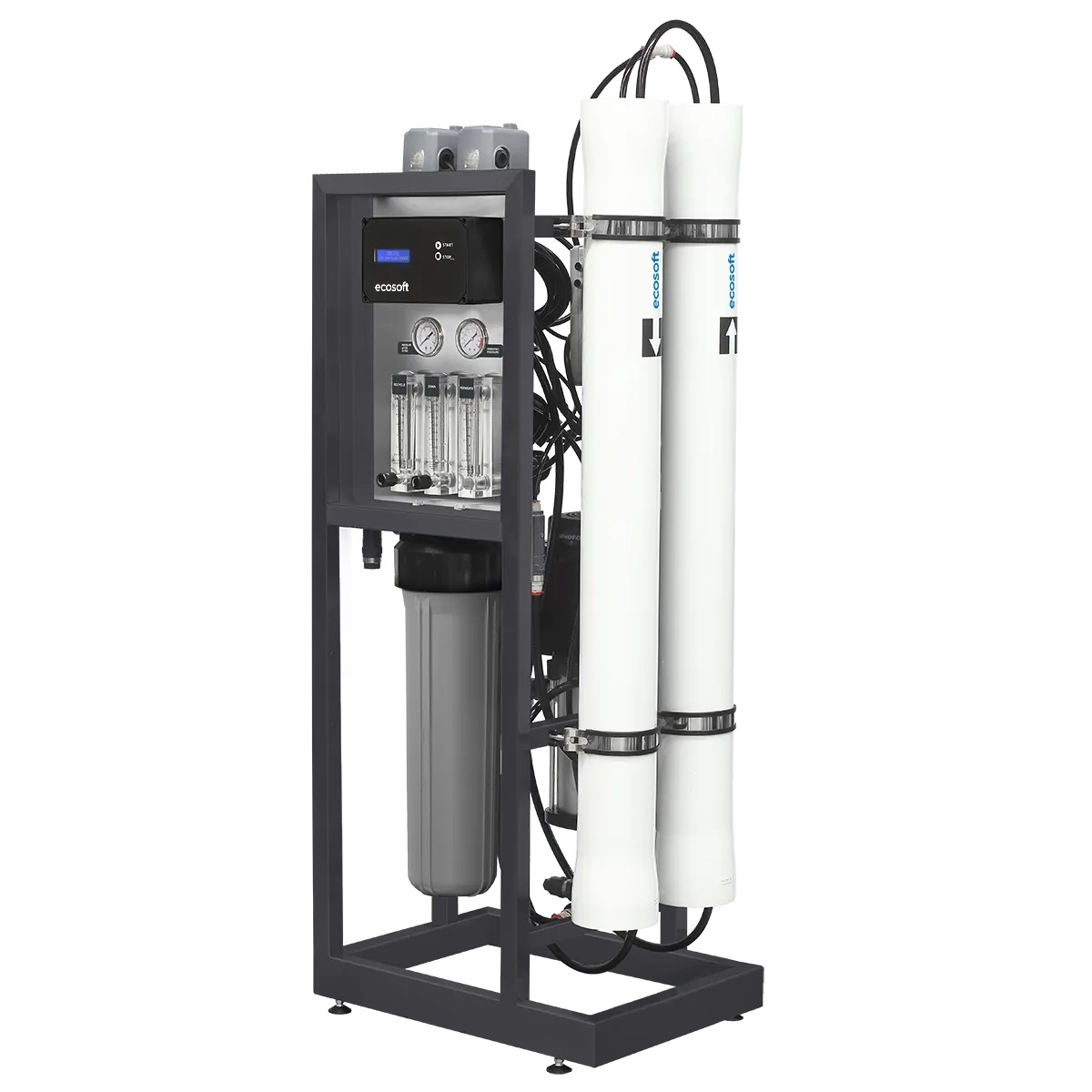

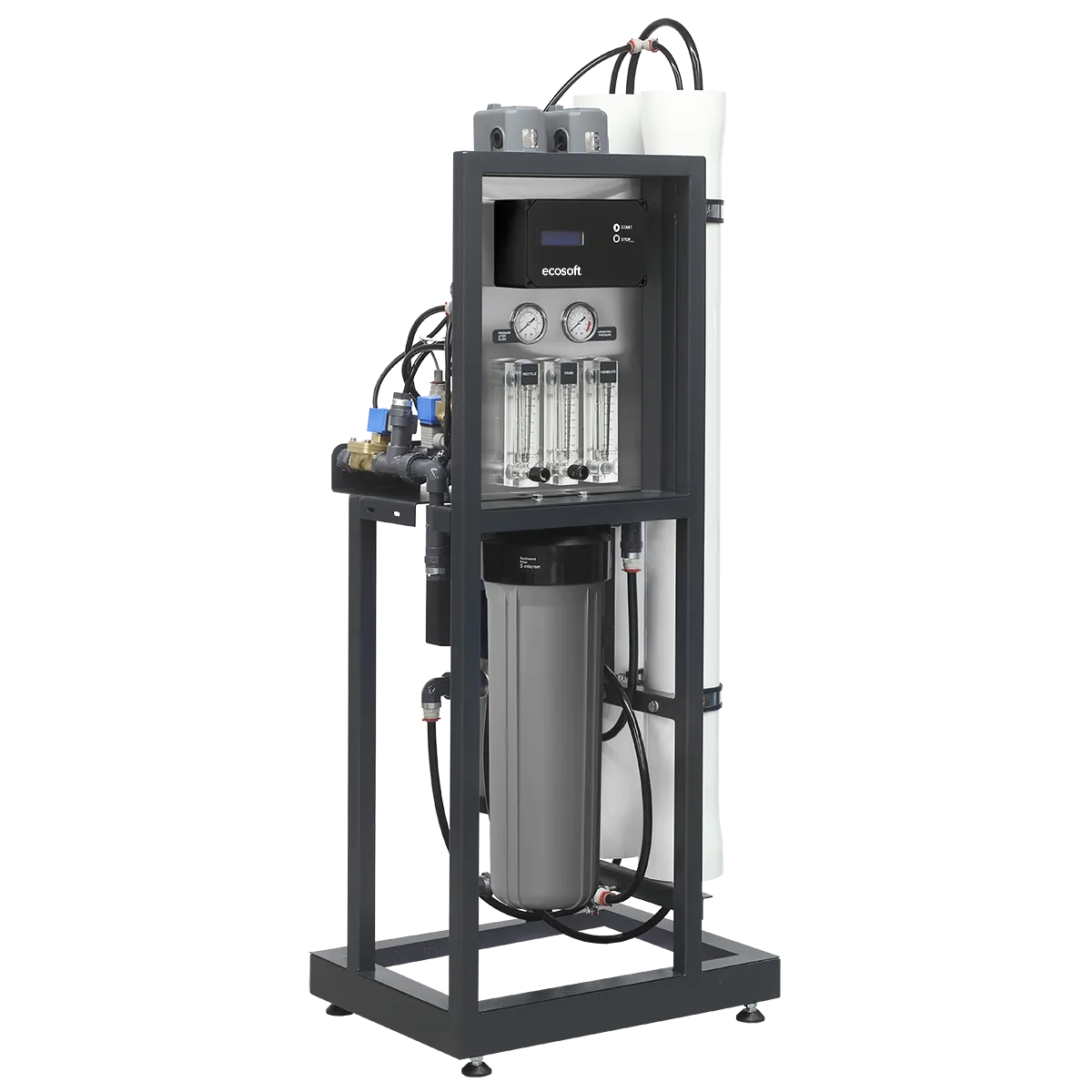

Ecosoft Professional MO12000 4″ reverse osmosis system

Manufacturer: ECOSOFT

Product SKU: MO12000TP5

Available on order

Delivery time: 2-5 working days

Have questions?

Contact our specialists.

Description

Technical data

Attachments

MO12000TP5 is the most energy-efficient and cost-effective system. It provides the highest output with the lowest energy use — only 0.67 kW to produce 500 liters per hour. Using this system can deliver savings of more than 500 euros per year compared to other competitive models. Pre-designed and convenient options for permeate flushing and blending assembly allow the system to handle any water treatment task, even with complex water. The system design and reliable components enable continuous 24/7 operation.

Its open-frame design ensures quick maintenance access, while the OC5000 controller allows full customization to suit specific applications and conditions. Permeate flushing extends the service life of membrane elements by up to 30% and significantly reduces the load on pre-filters.

The blending assembly enables mixing from any point in the water purification system or even from another water source. The lowest energy costs, combined with a compact and stylish design, make this system popular for car washes, hotels, laundries, and water bottling. It also provides clean water to large cottages, private houses, and restaurants. In addition, the MO12000TP5 is a reliable choice for light production such as bakeries, breweries, wineries, and cheese or sausage production.

Flow capacity: 500 L/h
Reliable and stable performance
Flexible flow adjustment for various feed water
Pre-designed options for tailor-made solutions

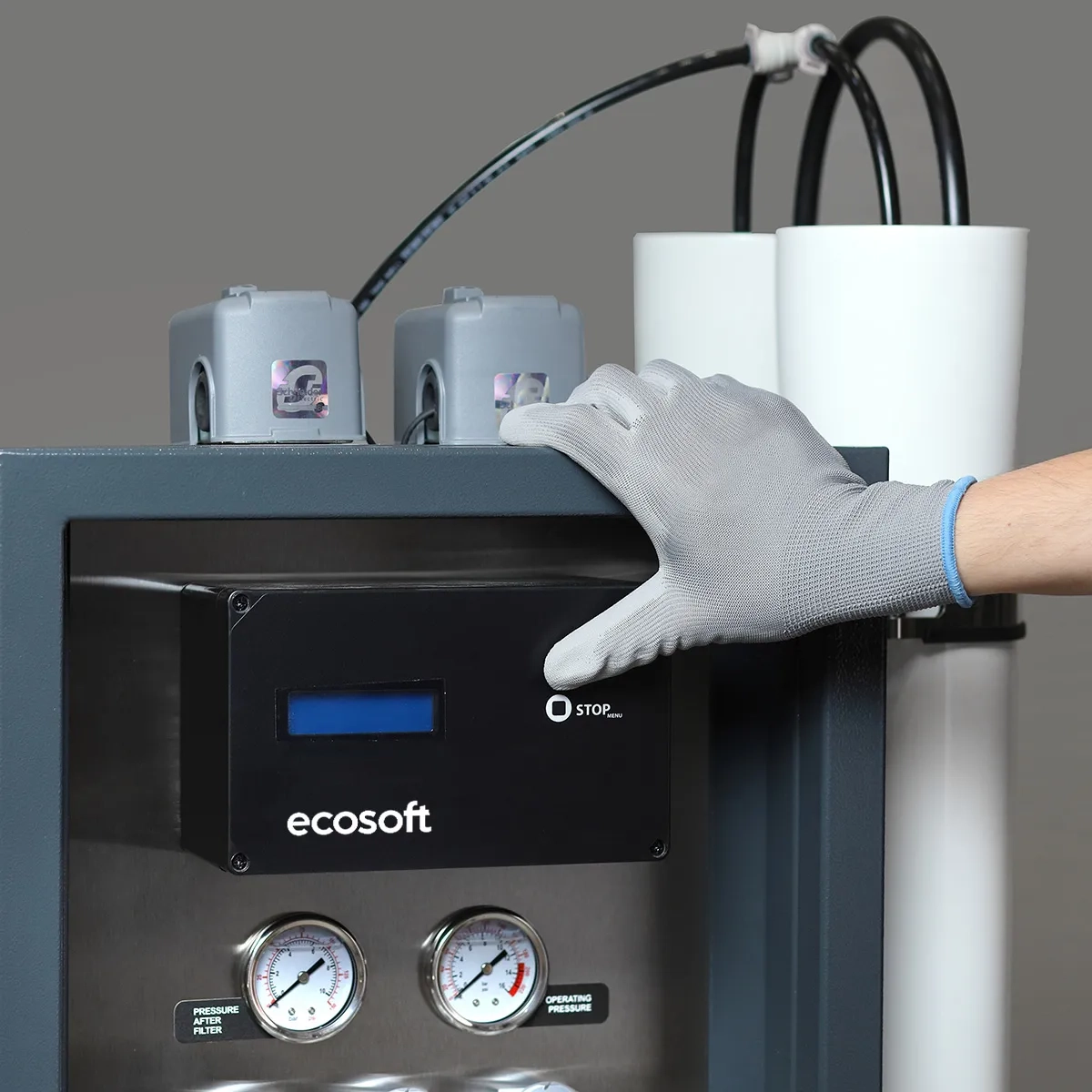

Reliable Ecosoft OC5000 controller

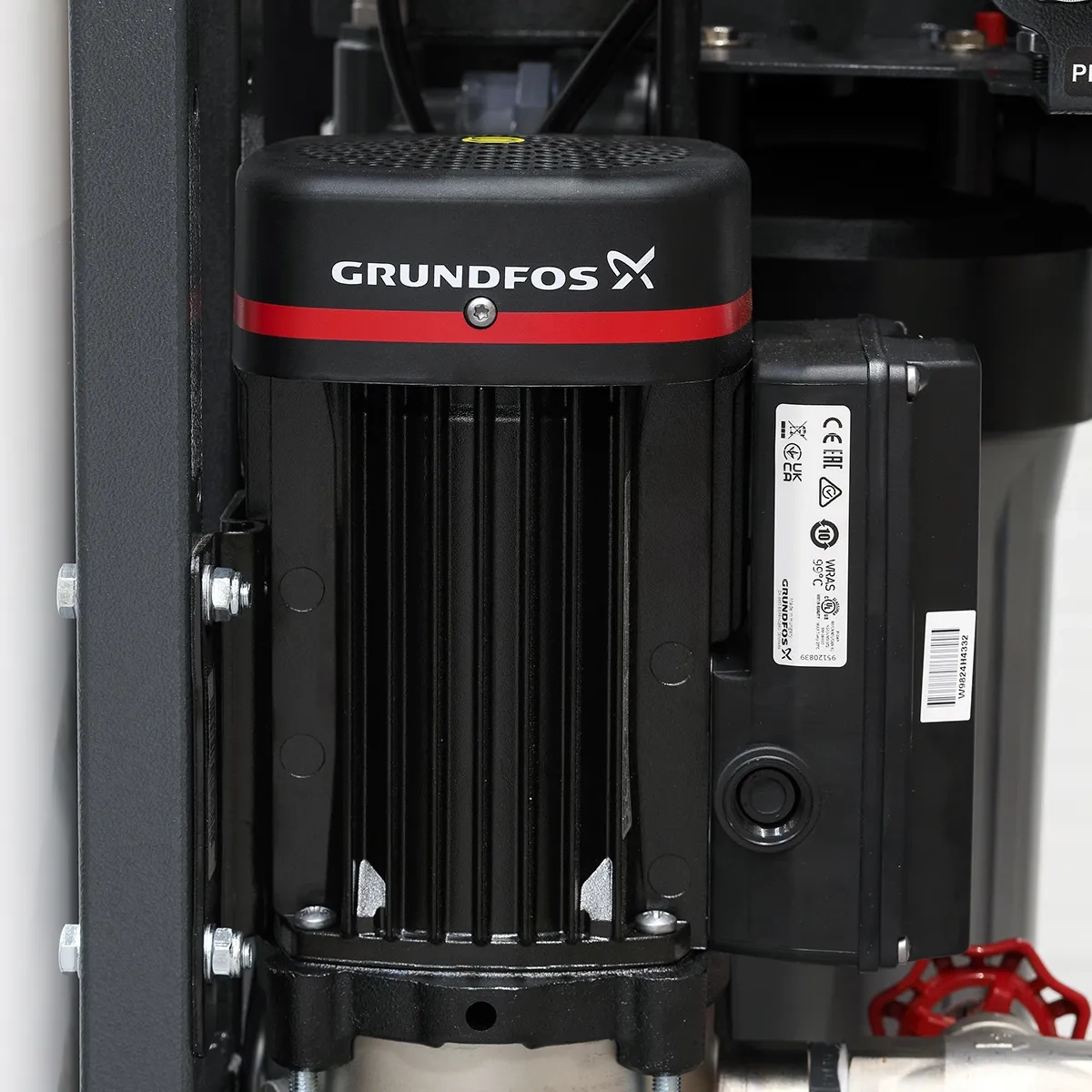

Energy-efficient and quiet Grundfos® pump

Service and maintenance

To ensure maximum efficiency of the Ecosoft reverse osmosis system, regular replacement of filter elements is required. Proper maintenance guarantees high water quality and extends the service life of your system.

Cartridge replacement schedule:

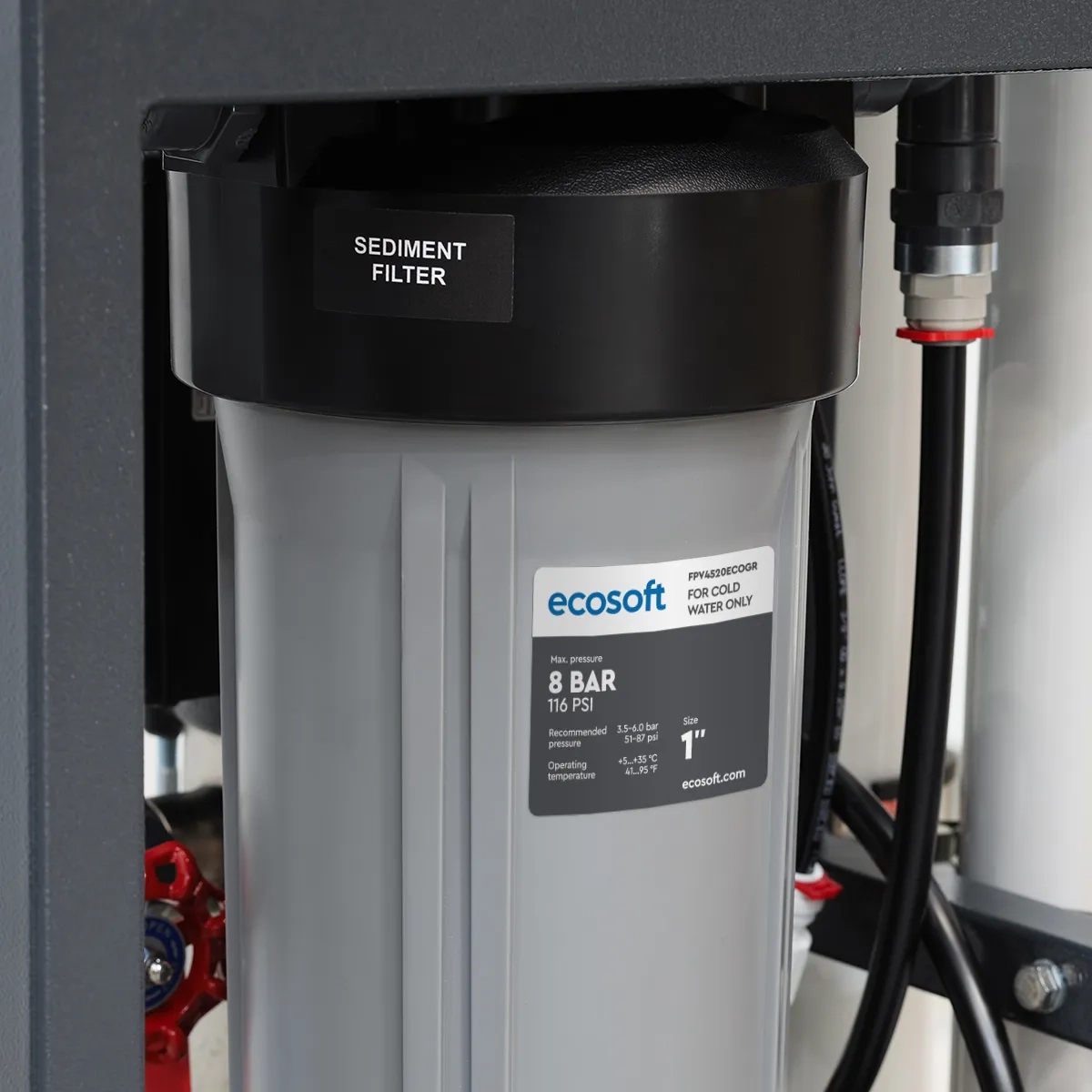

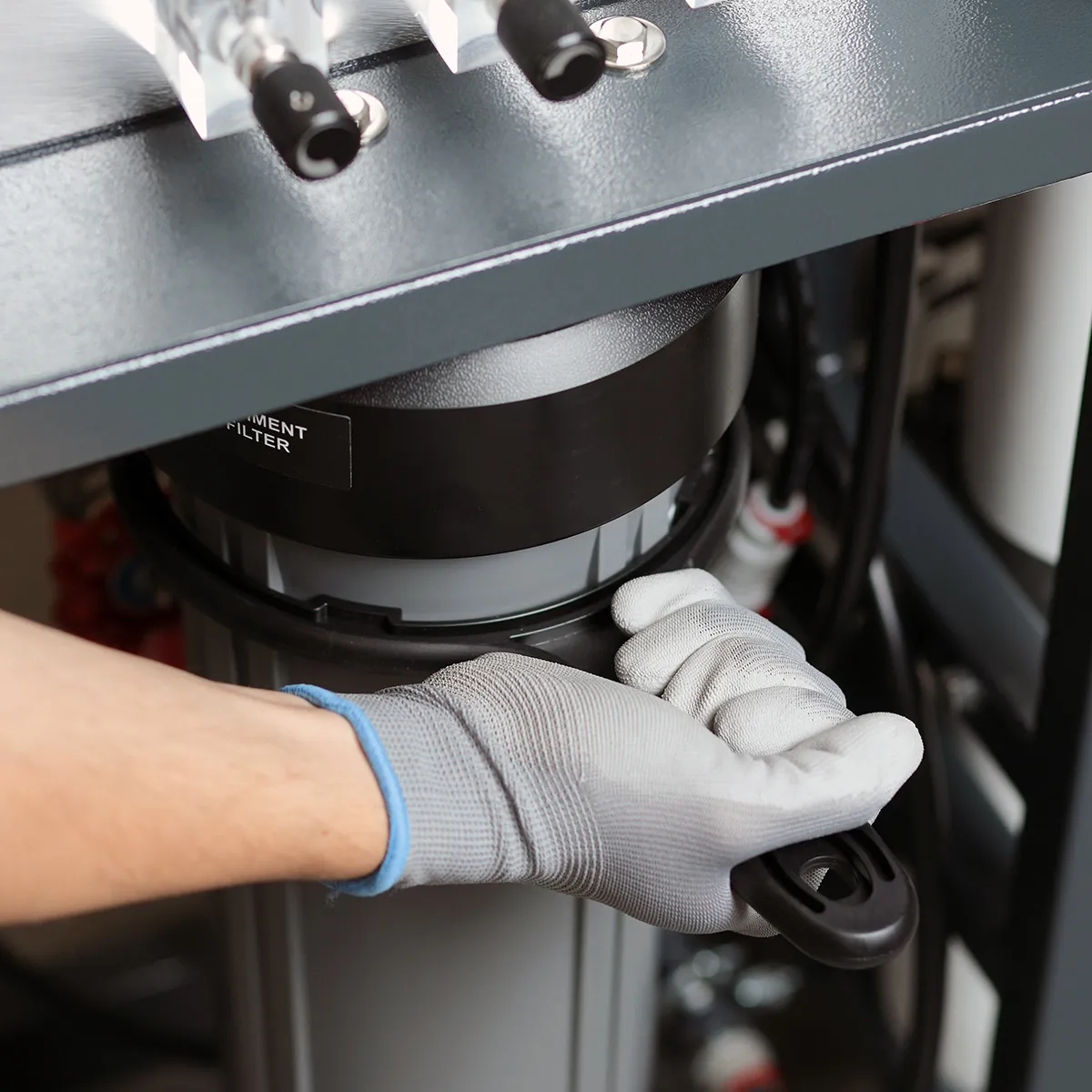

Ecosoft PP melt-blown sediment filter, 4.5″ × 20″, 5 µm – replace every 4 months, or if the pressure drop reaches 0.5 bar
Membrane element – replace or clean every 6 months if productivity decreases by more than 15–20%, water quality worsens by 15–20%, or pressure drop increases by 15–20%

You can replace cartridges and membrane elements yourself, but for best results we recommend contacting an authorized service center.

If you decide to carry out the replacement yourself, follow the instructions below:

⚠️ Use sterile rubber gloves when handling membrane elements

⚠️ If high microbiological purity is required, disinfect the reverse osmosis system and the permeate tank before installing the membrane

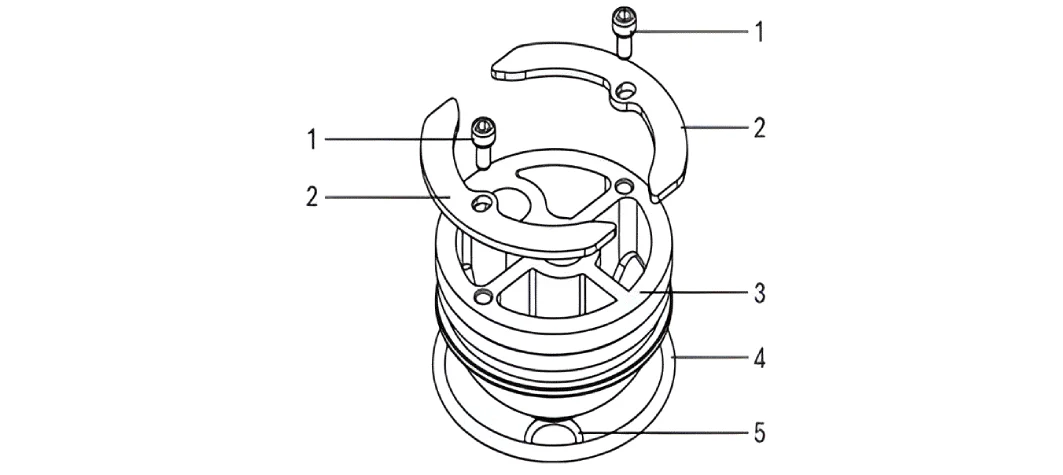

Membrane holder cap
1 – Screws, 2 – Locking half-rings, 3 – End cap, 4 – Sealing ring, 5 – Sealing ring for the end cap.

Remove the membrane element(s) from the factory packaging. To replace the old element with a new one, disconnect the pipelines and remove the membrane holder(s) from the frame.

⚠️ Pay special attention to the sealing ring of the end cap (5). If the seal is missing, permeate and concentrate streams may mix.

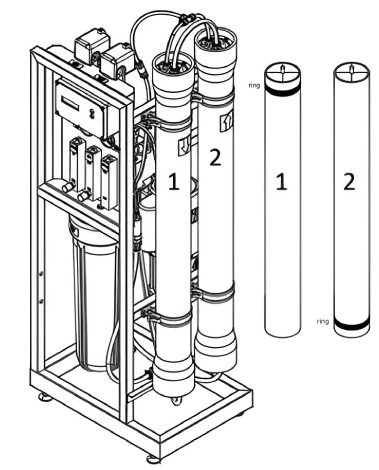

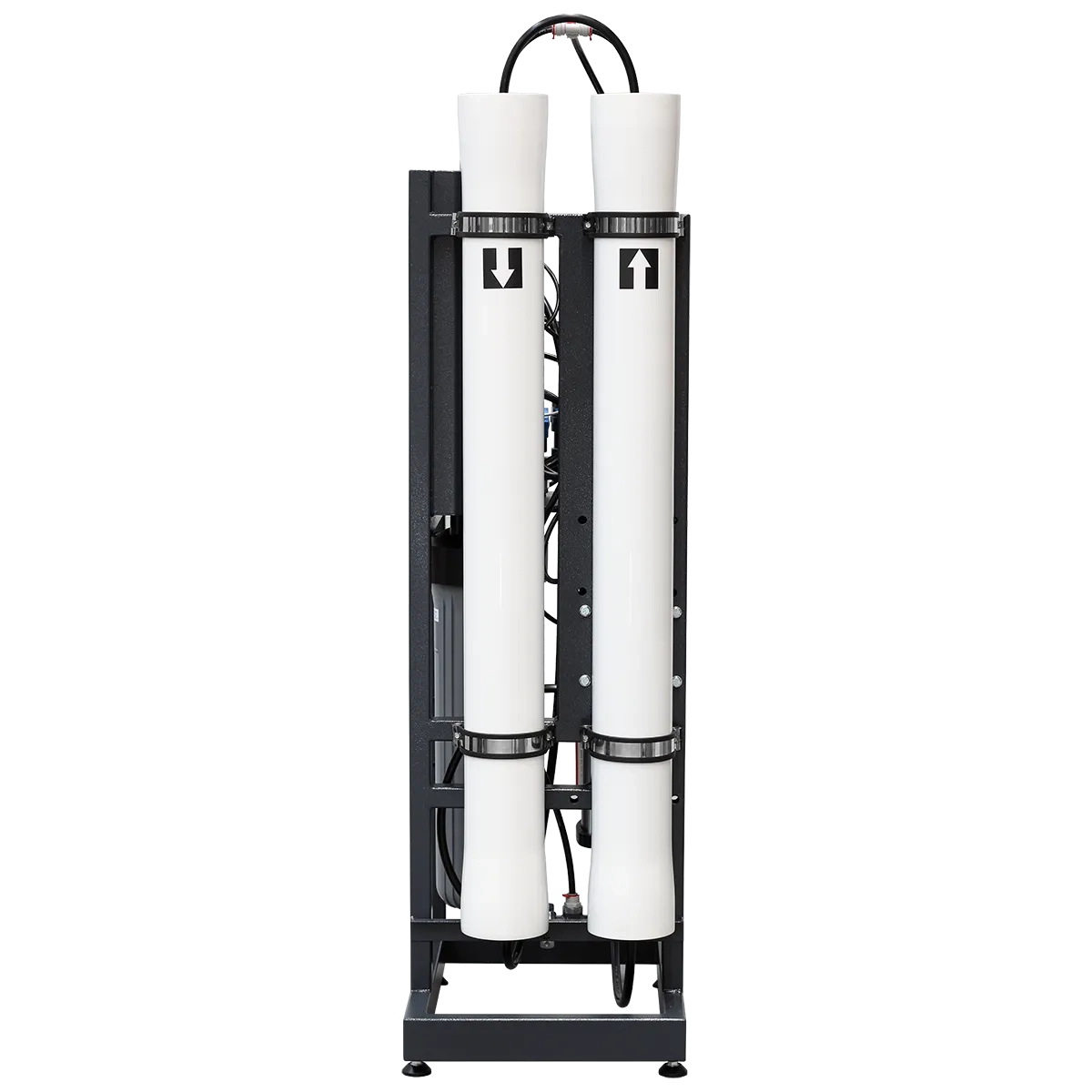

After removing the end cap, install the membrane element in the direction of the arrow marked on the membrane holder (from the inlet water side). The membrane element must be inserted into the holder with its sealing ring aligned with the inlet connection of the holder head.

After installation, secure the holder head with screws and locking elements to the holder body, then reconnect the pipelines for feed water, concentrate discharge, and permeate outlet on the membrane holder. Fix the membrane holder to the reverse osmosis system frame.

During the first system startup, the initial portion of permeate must be discharged to the sewer, with a minimum discharge time of 15 minutes.

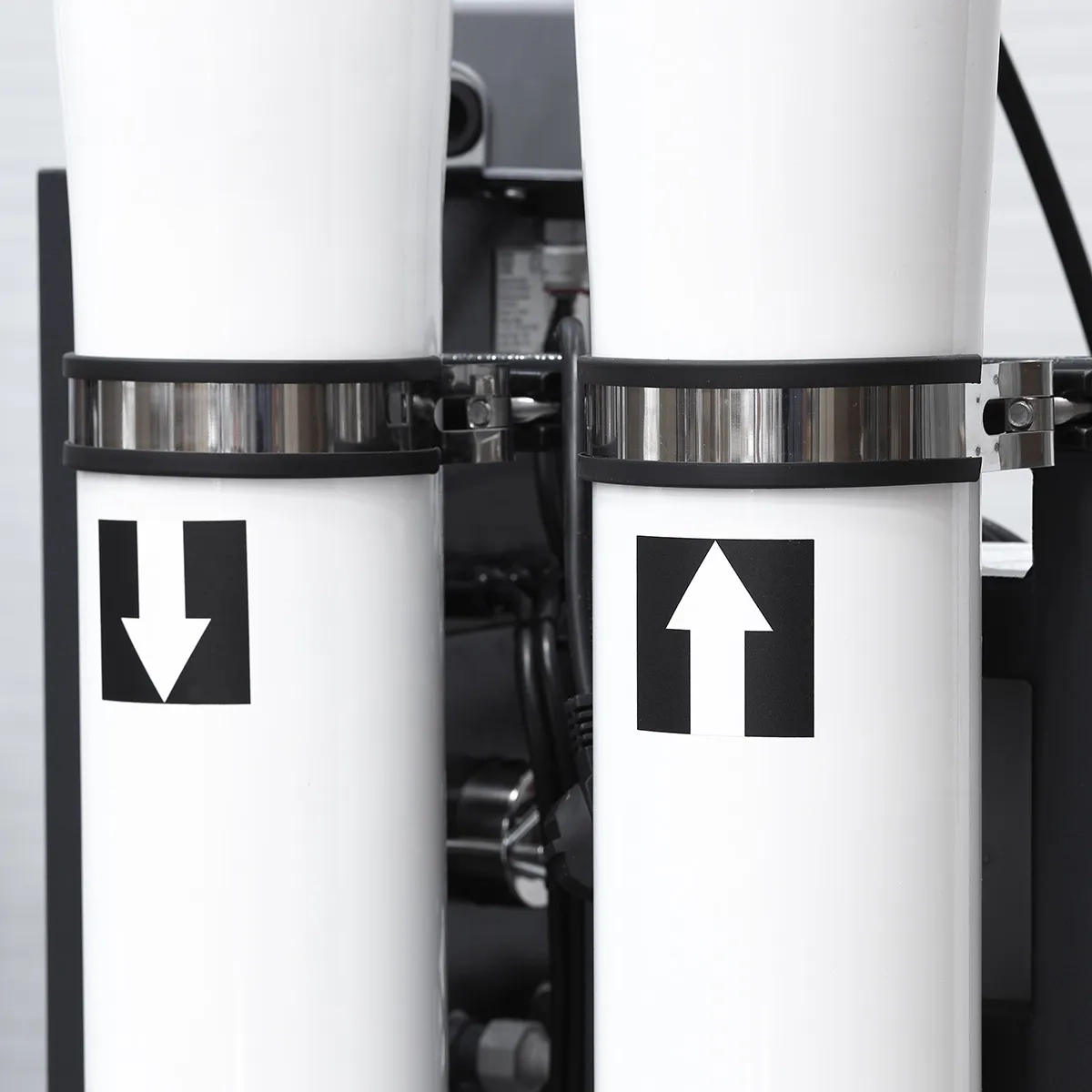

💡 When installing the membrane, pay attention to the direction of the arrow on the membrane holder.

💡 If necessary, use glycerin as a lubricant.

Parameter	Specification
Rated capacity	500 L/h
Rated capacity	12000 L/d
Recovery	up to 75 %
Inlet water TDS	3000 ppm
Membranes (pcs/type)	2/40×40
Inlet water pressure	2...4 bar
Operating pressure	8...12 bar
Maximum pressure	14 bar
Service feed flow	650–800 L/h
Forward flush feed flow	2400 L/h
Water consumption for forward flush	40 L
Inlet water temperature	5...30 °C
Online access	no
Controller menu languages	EN
Power supply	1 × 220–230 V
Frequency	50 Hz
Rated power	0.67 kW

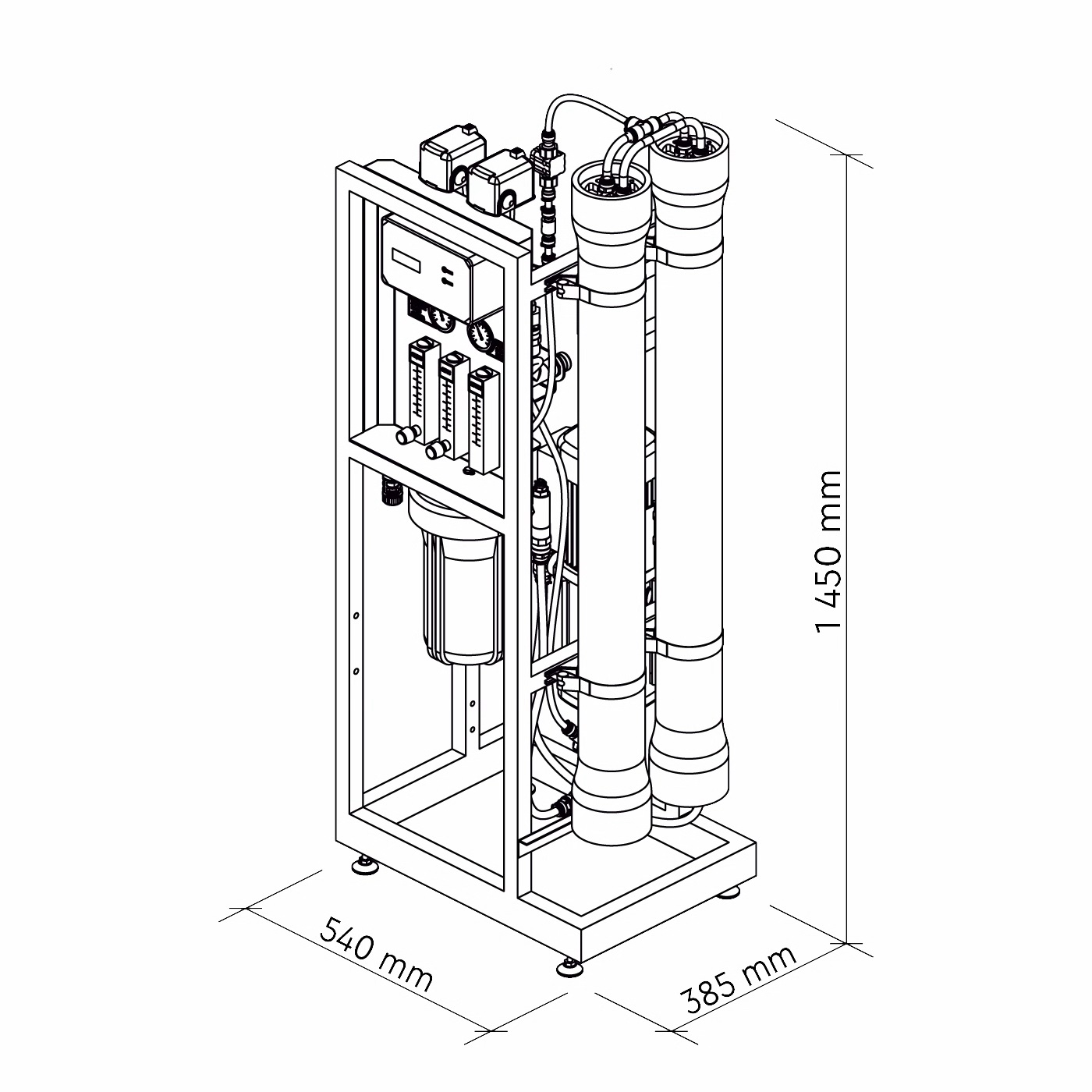

System dimensions (H × W × D)	1450 × 540 × 385 mm
System weight	65 kg
Permeate flow*	8.3 LPM
Concentrate flow*	2.8 LPM
Recycle flow*	9.2 LPM
Operating pressure*	9.8 bar
