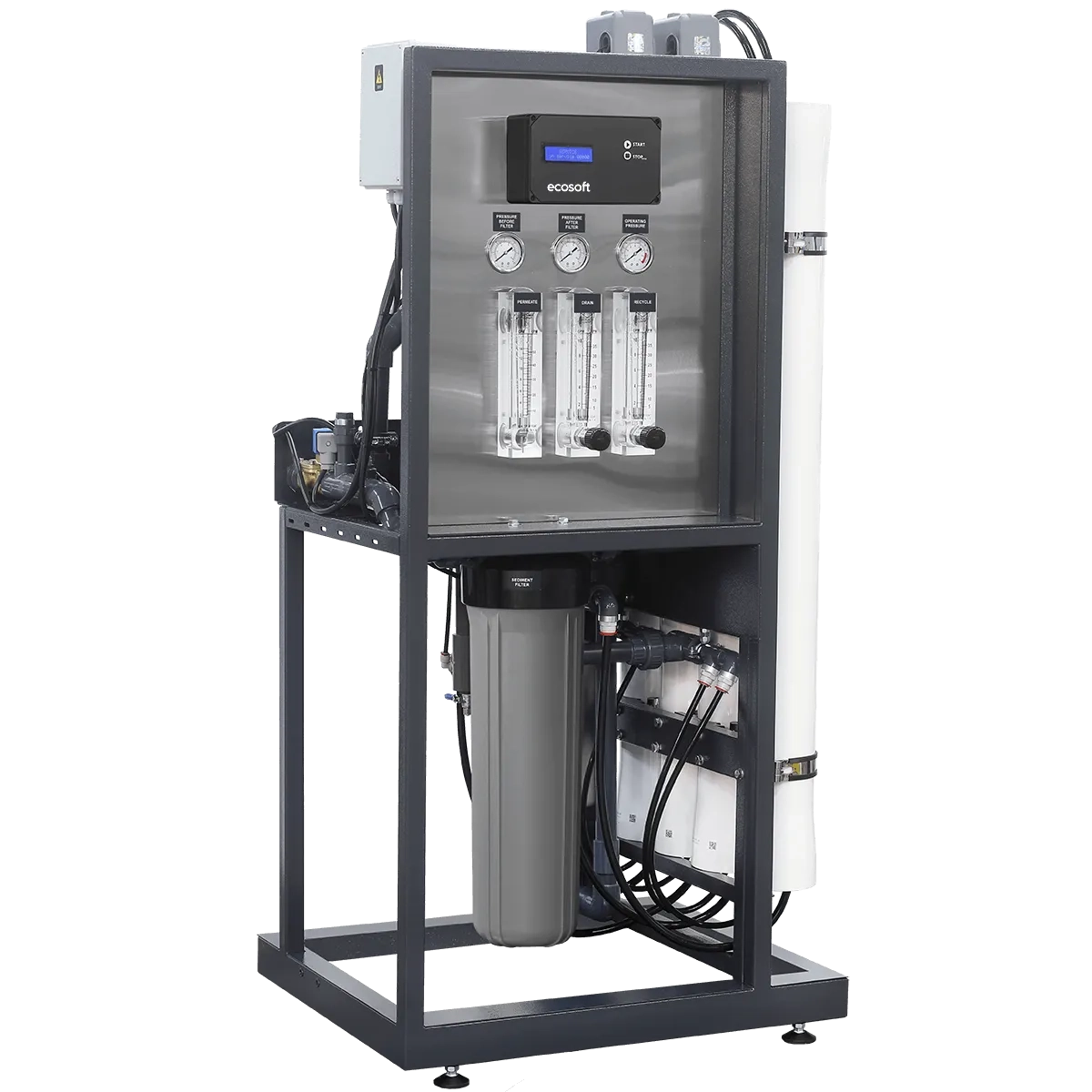

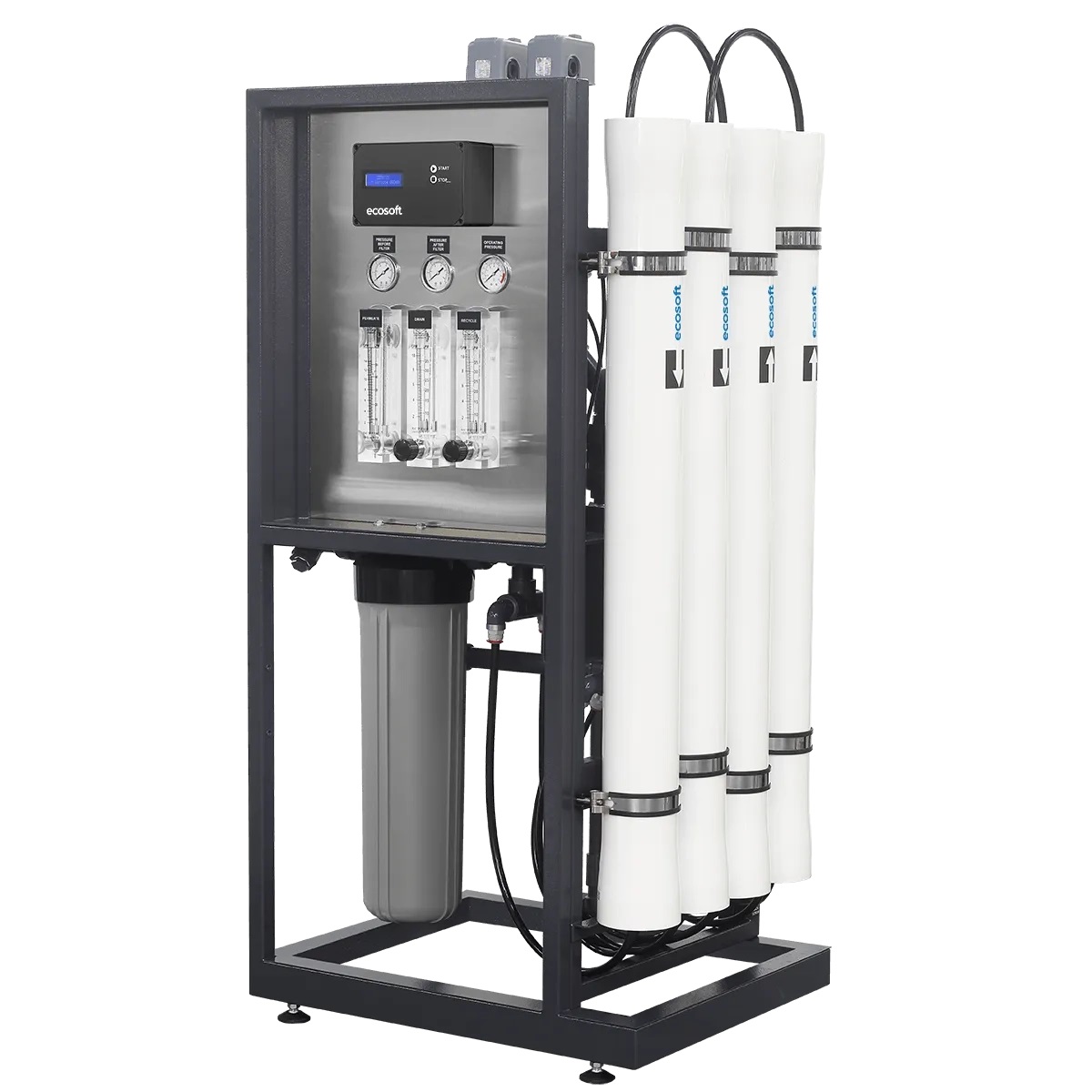

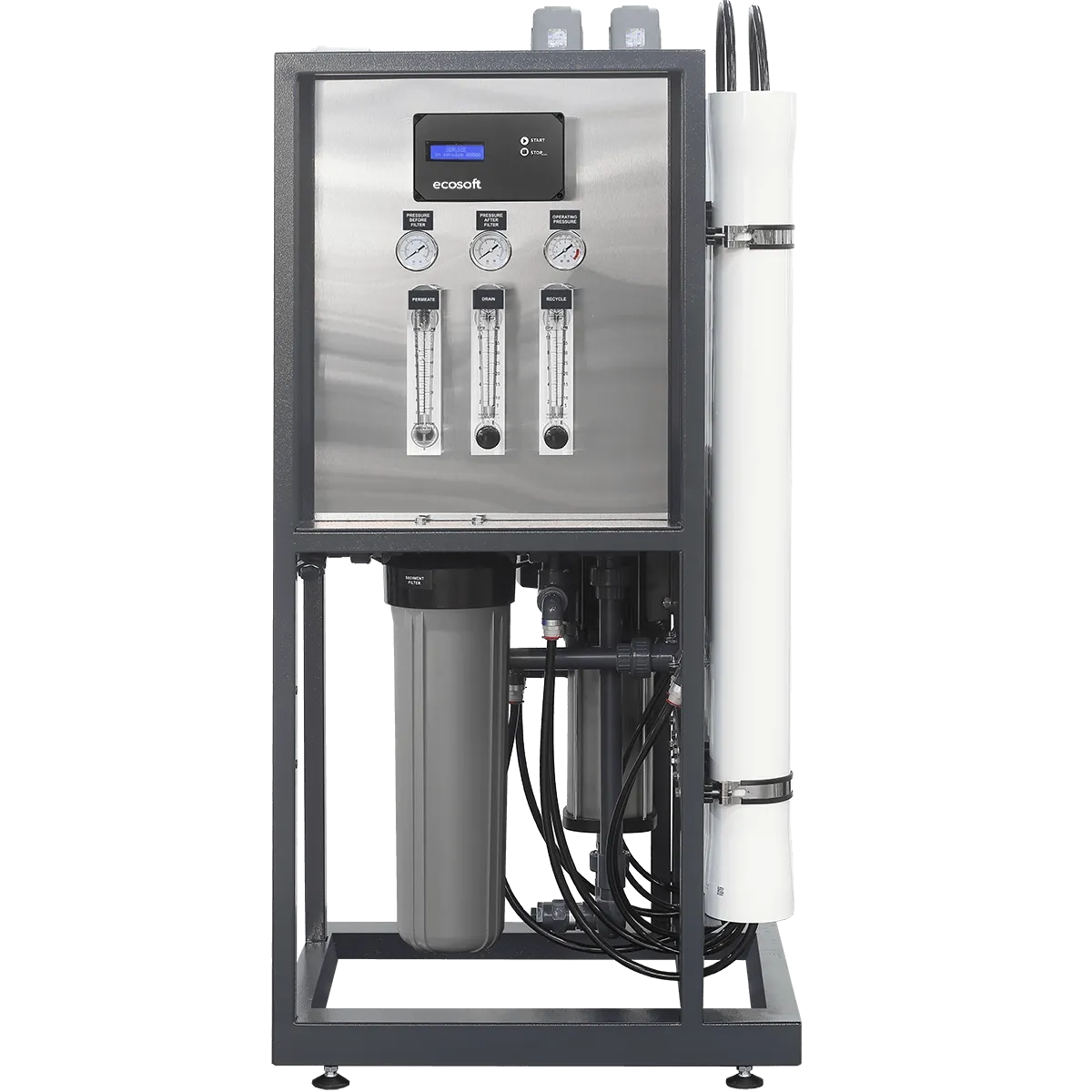

MO24000TP5 is the most popular model for small productions. The system provides up to 24,000 liters of purified water per day. Pre-designed and convenient options for permeate flushing and blending assembly allow it to handle any water treatment task, even with complex water. The system design and reliable components enable continuous 24/7 operation.

Its open-frame design ensures quick maintenance access, while the OC5000 controller allows full customization to suit specific applications and conditions. Permeate flushing extends the service life of membrane elements by up to 30% and significantly reduces the load on pre-filters.

The blending assembly enables mixing from any point in the water purification system or even from another water source. A well-thought-out design with a power reserve makes this model an optimal solution for water purification in hotels, greenhouses, and livestock complexes. The MO24000TP5 is also a reliable choice for medium-sized businesses such as breweries, household chemicals, cosmetics, and car care production.

• Flow capacity: 1000 L/h
• Reliable and stable performance
• Flexible flow adjustment for various feed water
• Pre-designed options for tailor-made solutions
• Reliable Ecosoft OC5000 controller
• Energy-efficient and quiet Grundfos® pump

Service and maintenance

To ensure maximum efficiency of the Ecosoft reverse osmosis system, regular replacement of filter elements is required. Proper maintenance guarantees high water quality and extends the service life of your system.

Cartridge replacement schedule:

• Ecosoft PP melt-blown sediment filter, 4.5″ × 20″, 5 µm – replace every 4 months, or if the pressure drop reaches 0.5 bar
• Membrane element – replace or clean every 6 months if productivity decreases by more than 15–20%, water quality worsens by 15–20%, or pressure drop increases by 15–20%

You can replace cartridges and membrane elements yourself, but for best results we recommend contacting an authorized service center.

If you decide to carry out the replacement yourself, follow the instructions below:

⚠️ Use sterile rubber gloves when handling membrane elements

⚠️ If high microbiological purity is required, disinfect the reverse osmosis system and the permeate tank before installing the membrane

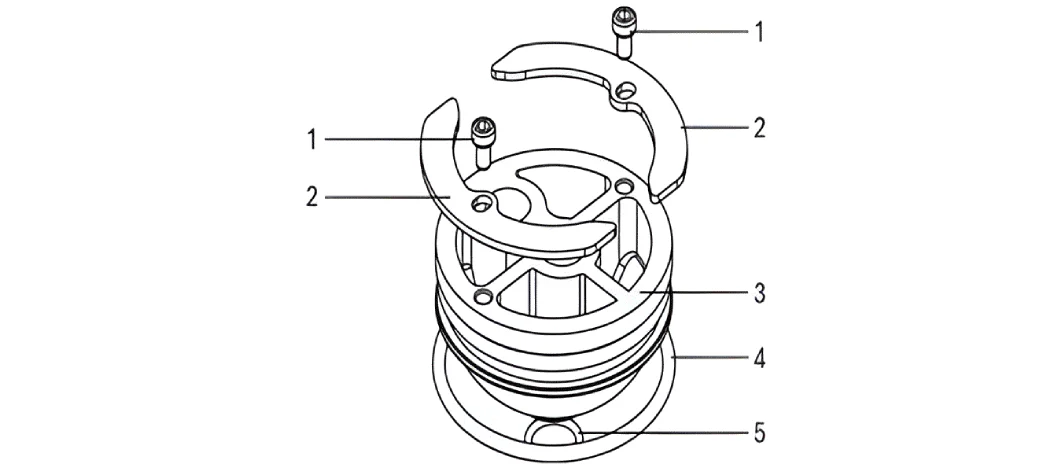

Membrane holder cap
1 – Screws, 2 – Locking half-rings, 3 – End cap, 4 – Sealing ring, 5 – Sealing ring for the end cap.

Remove the membrane element(s) from the factory packaging. To replace the old element with a new one, disconnect the pipelines and remove the membrane holder(s) from the frame.

⚠️ Pay special attention to the sealing ring of the end cap (5). If the seal is missing, permeate and concentrate streams may mix.

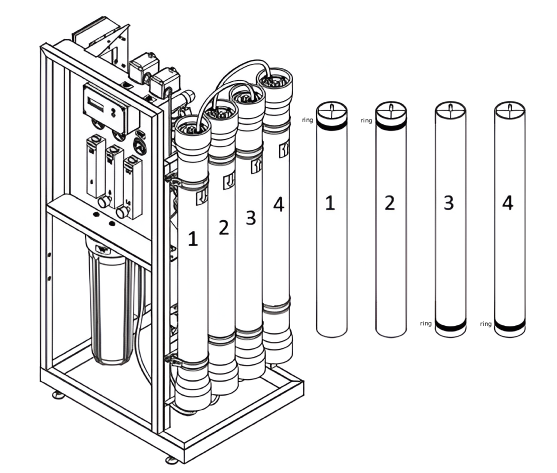

After removing the end cap, install the membrane element in the direction of the arrow marked on the membrane holder (from the inlet water side). The membrane element must be inserted into the holder with its sealing ring aligned with the inlet connection of the holder head.

After installation, secure the holder head with screws and locking elements to the holder body, then reconnect the pipelines for feed water, concentrate discharge, and permeate outlet on the membrane holder. Fix the membrane holder to the reverse osmosis system frame.

During the first system startup, the initial portion of permeate must be discharged to the sewer, with a minimum discharge time of 15 minutes.

💡 When installing the membrane, pay attention to the direction of the arrow on the membrane holder.

💡 If necessary, use glycerin as a lubricant.
