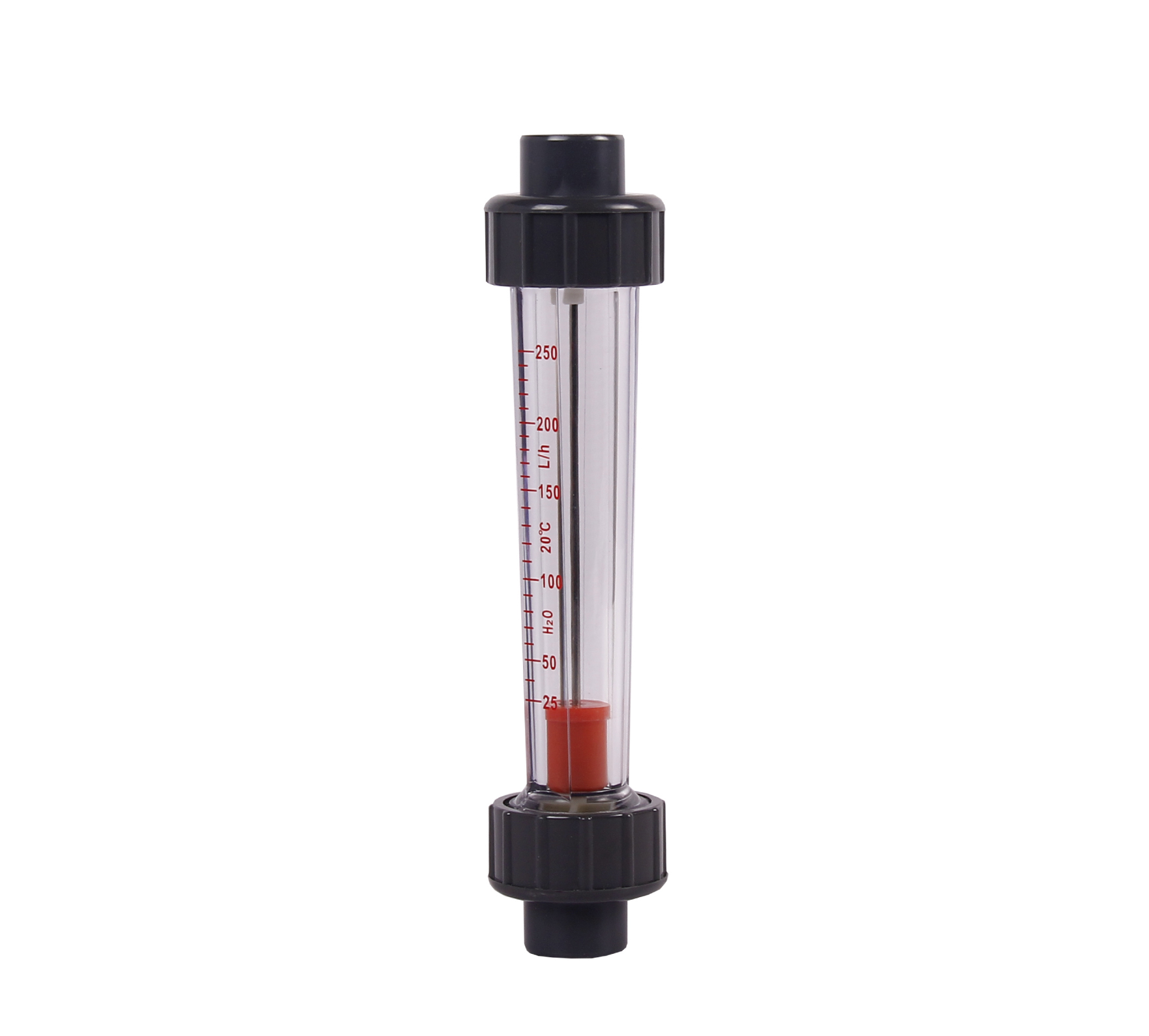

A water flow meter is used to determine the precise instantaneous flow rate of liquid. The float inside the meter is made of special plastic that resists acid and alkali interactions, making it suitable for filtration and water system monitoring applications.
Technical parameters | Unit | Water flow meter 25–250 l/h |
Connection (DN) | mm | 15 |
Measuring range | l/h | 25–250 |
Accuracy | % | 4 |
Working temperature | °C | 0–60 |
Operating pressure | MPa | ≤ 0.6 |
Height | mm | 168 |
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
