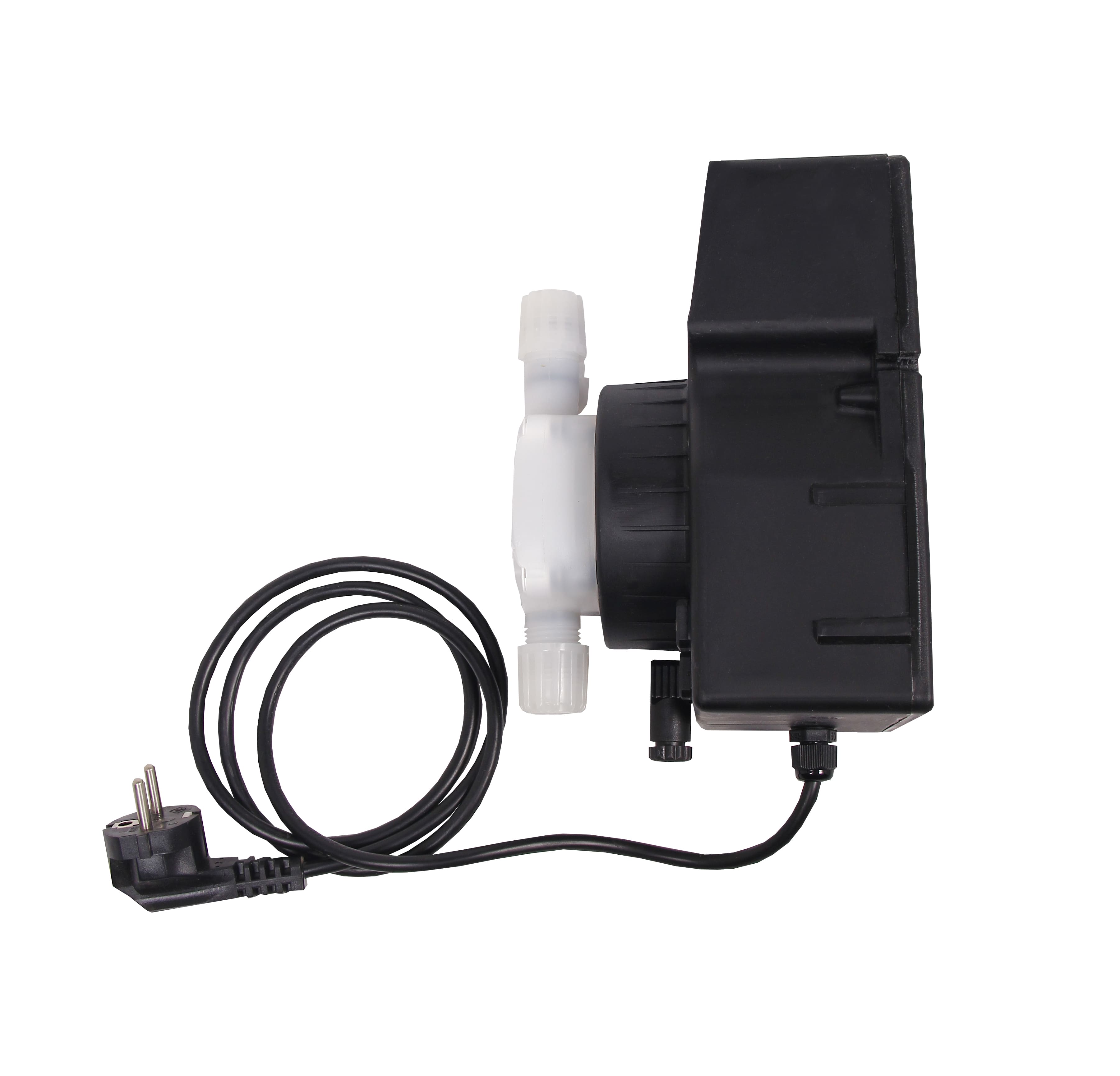

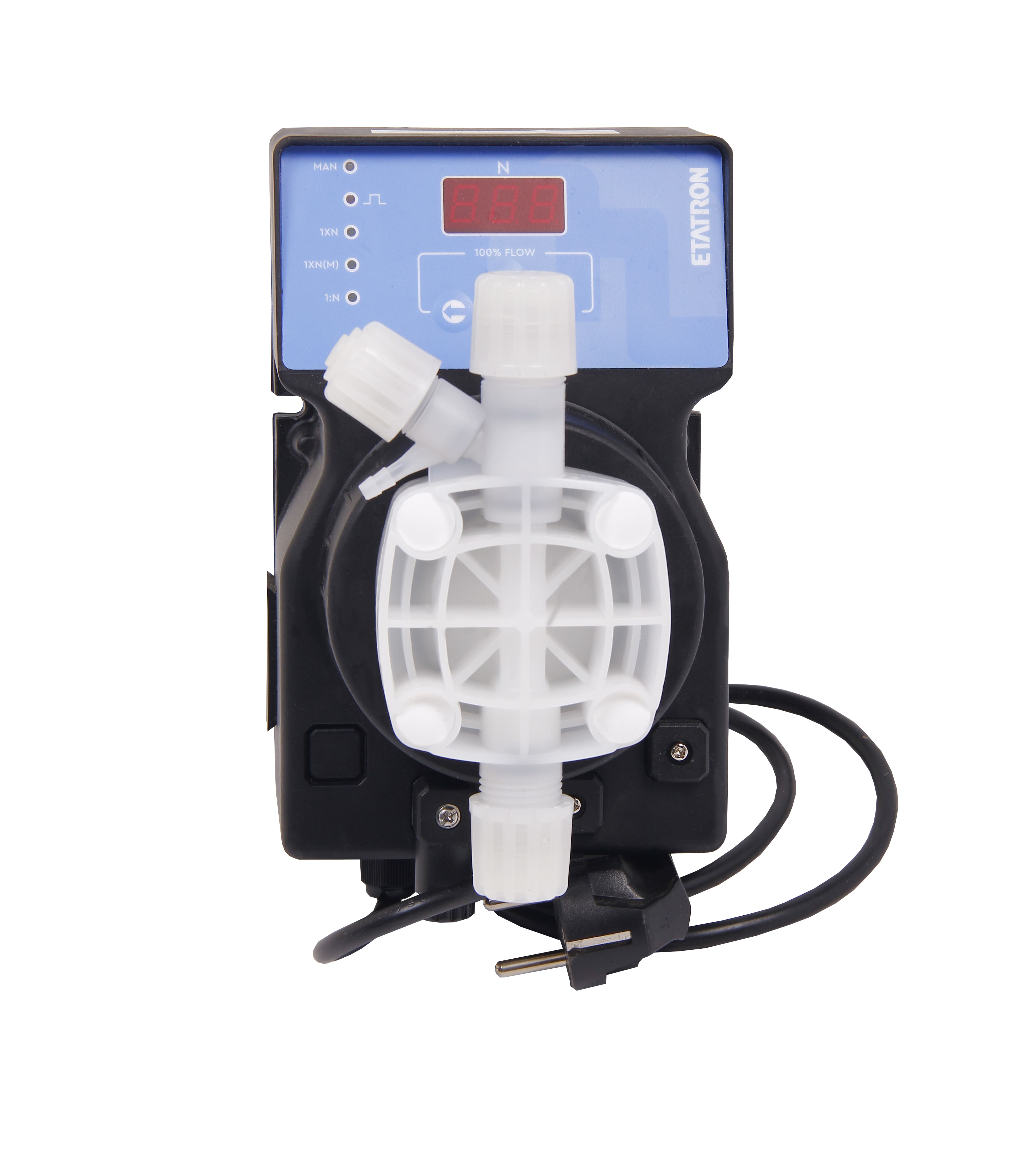

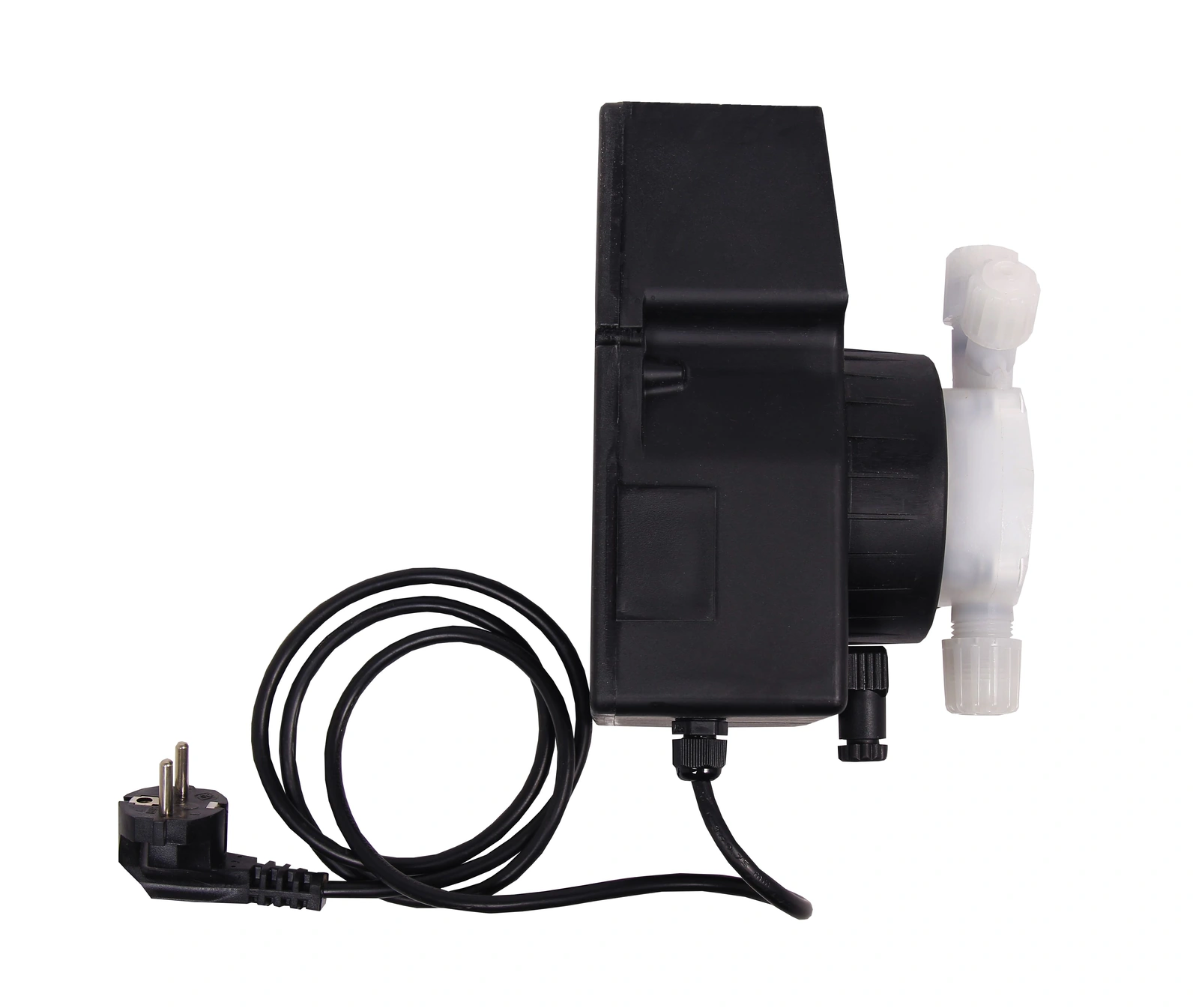

Dosing pump DLX VFT/MBB 0810 230/240V CP-PVDF Etatron D.S.
Product is in stock
Delivery time: 2-5 working days
DLX VFT/MBB model consists of a series of metering pumps performing a proportional dosing via a contact water meter
The high reliability and the price competitiveness make the DLX series the best proposal in
dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke
length control, which enables - by a dial - to adjust the dosing volume between 20-100%.
Main features:
- Anti-acid plastic casing
- IP65 protection degree
- Up to 20 l/h and 20 bar
- Wall (DLX) and Foot mounted (DLXB):
- Standard pump head: PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
- Power Supply: 220-240V - 120V (on request)
- Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
- CE (standard) and CSA certied (on request)
- 7 segments display
Operating functions:
- Digital Manual flow rate adjustment from 0÷100%
- Proportional dosing functions by reed water meter: 1xn; 1xn (m) 1:n;
- Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
- Relay Output
- Level switch connector
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |

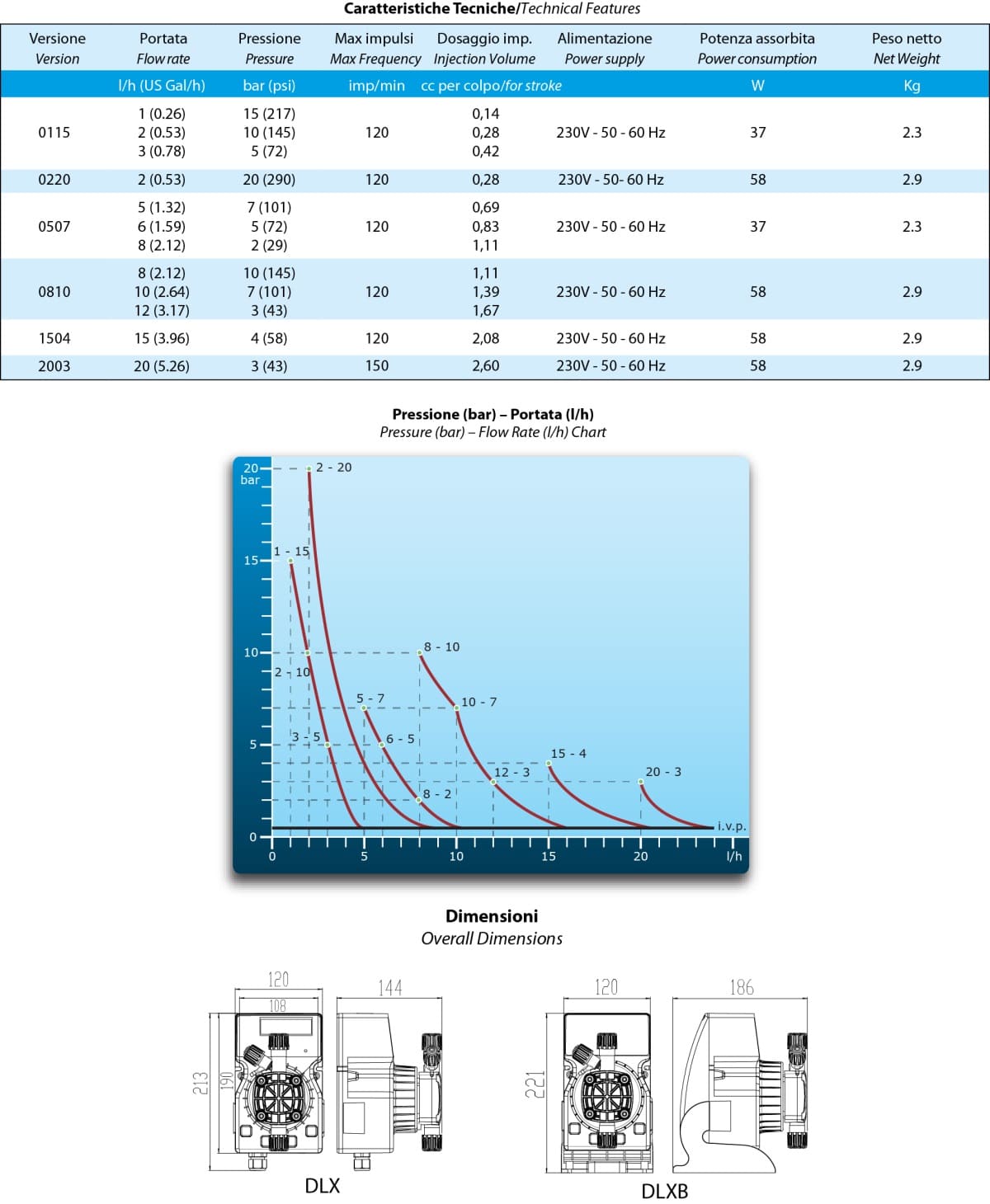

Etatron DLX/DLXB VFT/MBB family technical data sheet - in English (PDF)
Etatron DLX/DLXB family certificate of conformity - in English (PDF)
These documents cover the pump family and do not confirm every specification of an individual pump. Before use, verify the pump materials and operating parameters against its rating plate and model-specific data.
The safety instructions in the installation and maintenance manual are under review. Before installation or maintenance, ask WATEX for the manual appropriate to your pump model.
