Dosing pump EONE MF 0710 CP-PVDF TFE/P Etatron D.S.
Product is in stock
Delivery time: 2-5 working days
The new range of Etatron DS Dosing Pumps, the eOne series, represents an important step forward. The eOne technical characteristics deliver a reliable and effective solution for those businesses and customers involved in Chemical Dosing and Water Treatment.

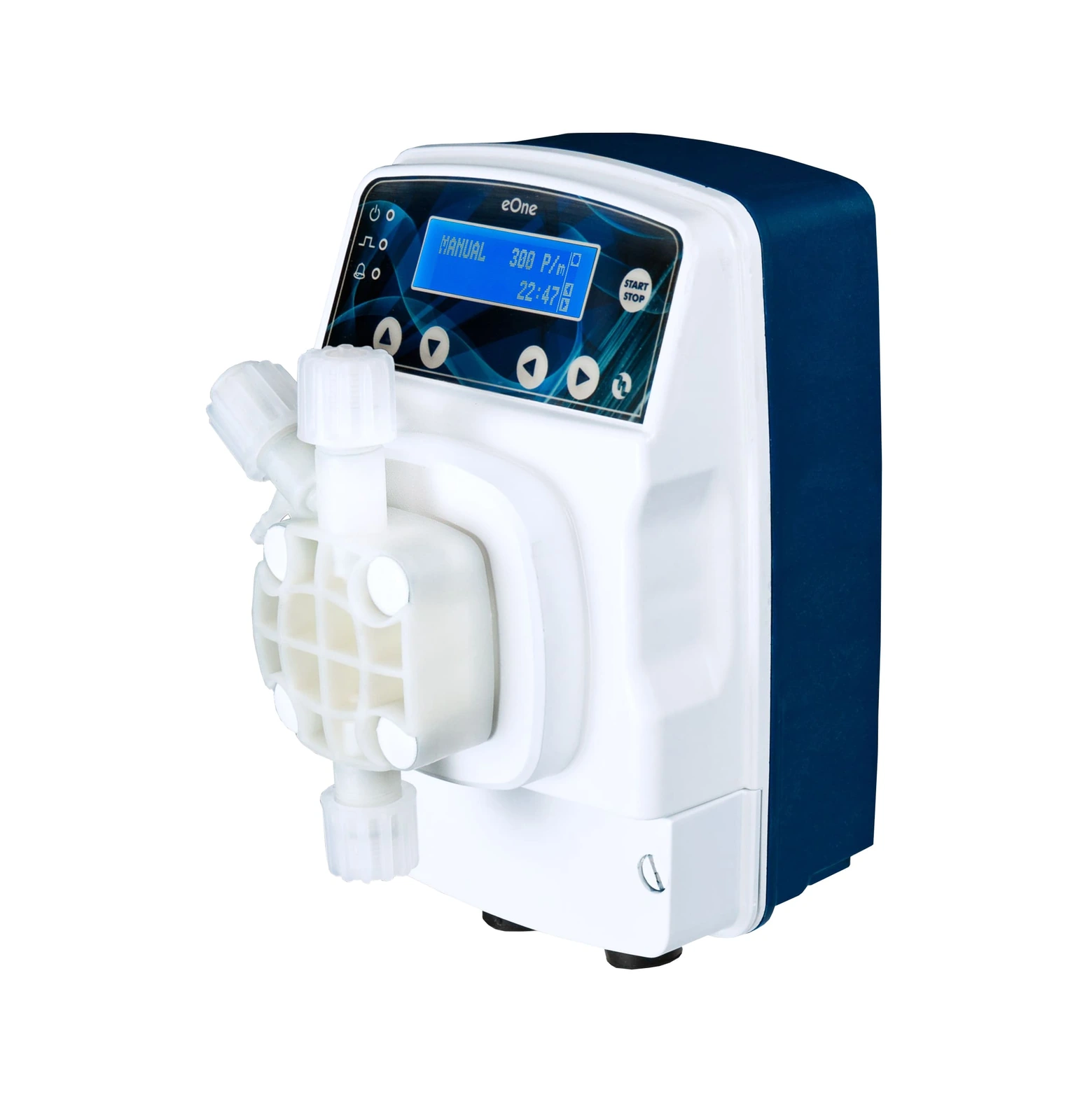

Multifunction microprocessor dosing pump, suitable for applications which require proportional dosing. The pump operates at a high dosing frequency (up to 300 impulses/min) and is equipped with backlit graphic display for correct setting of the various programming parameters.
The main common characteristics:
- High stroke rate up to 300 impulses/min.
- Flow rate variation control in relation to pressure changes.
- Energy efficient (typically 26W at the maximum load) using absorbed power control in comparison to the real dosing conditions.
This gives the following advantages:
- Constant dosing
- Energy saving
- Low operating temperatures resulting in reduced mechanical/electrical stress and giving increased equipment life cycle and reliability
- eOne Dosing Pumps power supply range of 100v….250Vac (50-60Hz) voltage.
- Proportional function. 1÷1 on all manual pumps.
- UNDERLOAD – Suction alarm: in the event of low chemical level, blocked suction valve or damaged suction line.
- OVERLOAD – Discharge alarm: in the event of over pressure in pump head caused by an obstruction or increased operating system pressure beyond the pump specification
- Level control.
| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 0 | 0 | 0 | 1 |
Use the links below to view and download the following documents:
ETATRON eOne MF — manufacturer’s original manual (PDF, in Italian, English, French, Spanish, Portuguese and German)Related products
