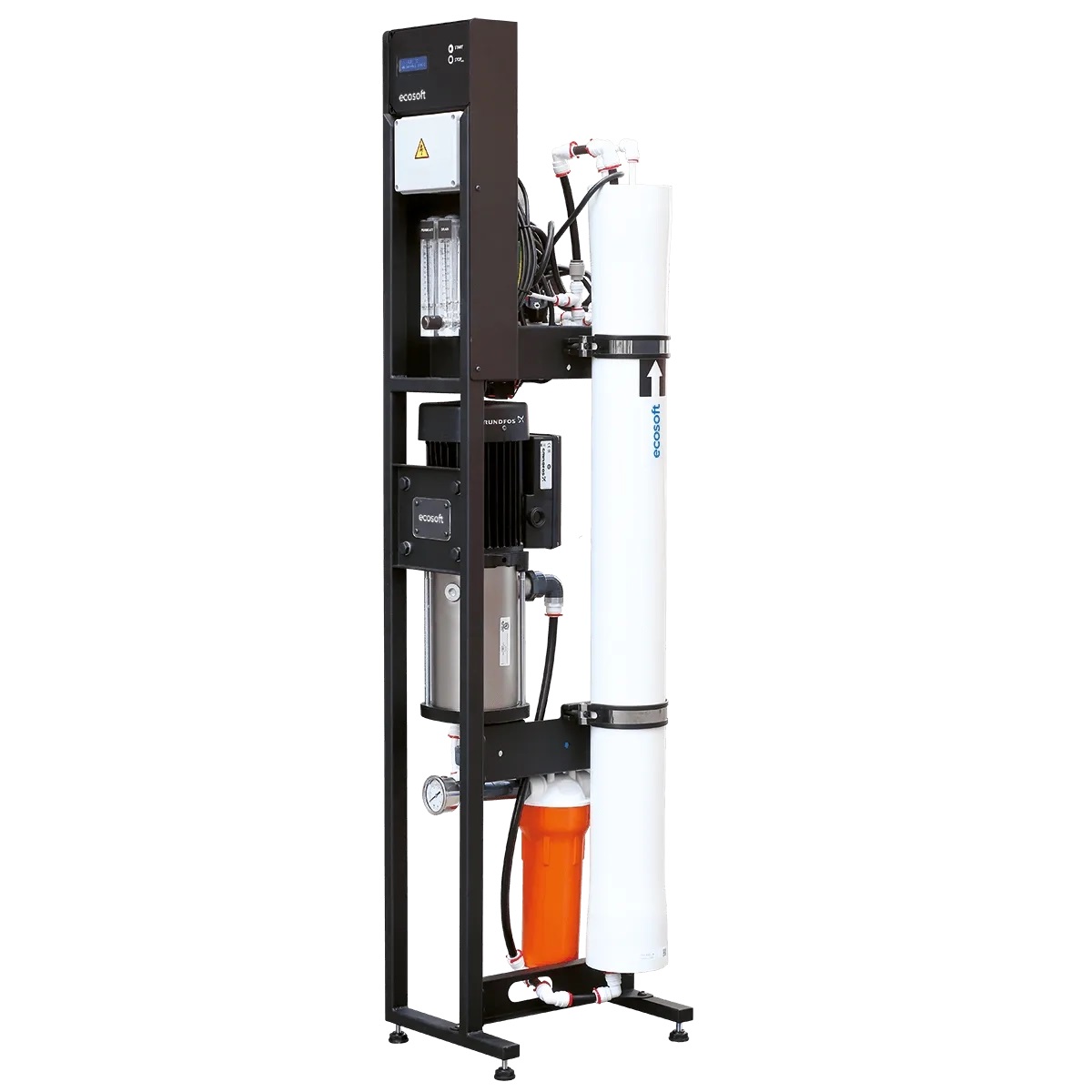

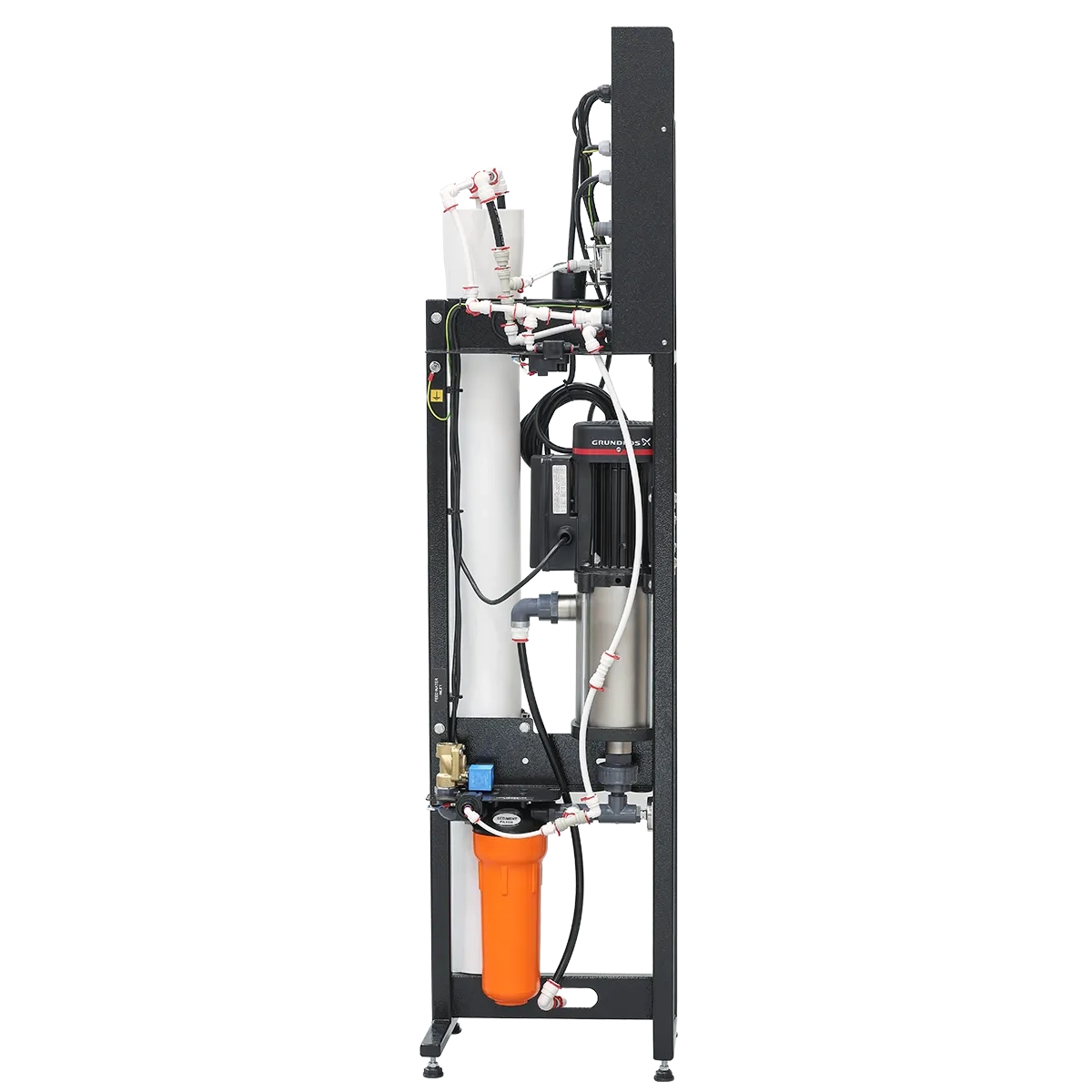

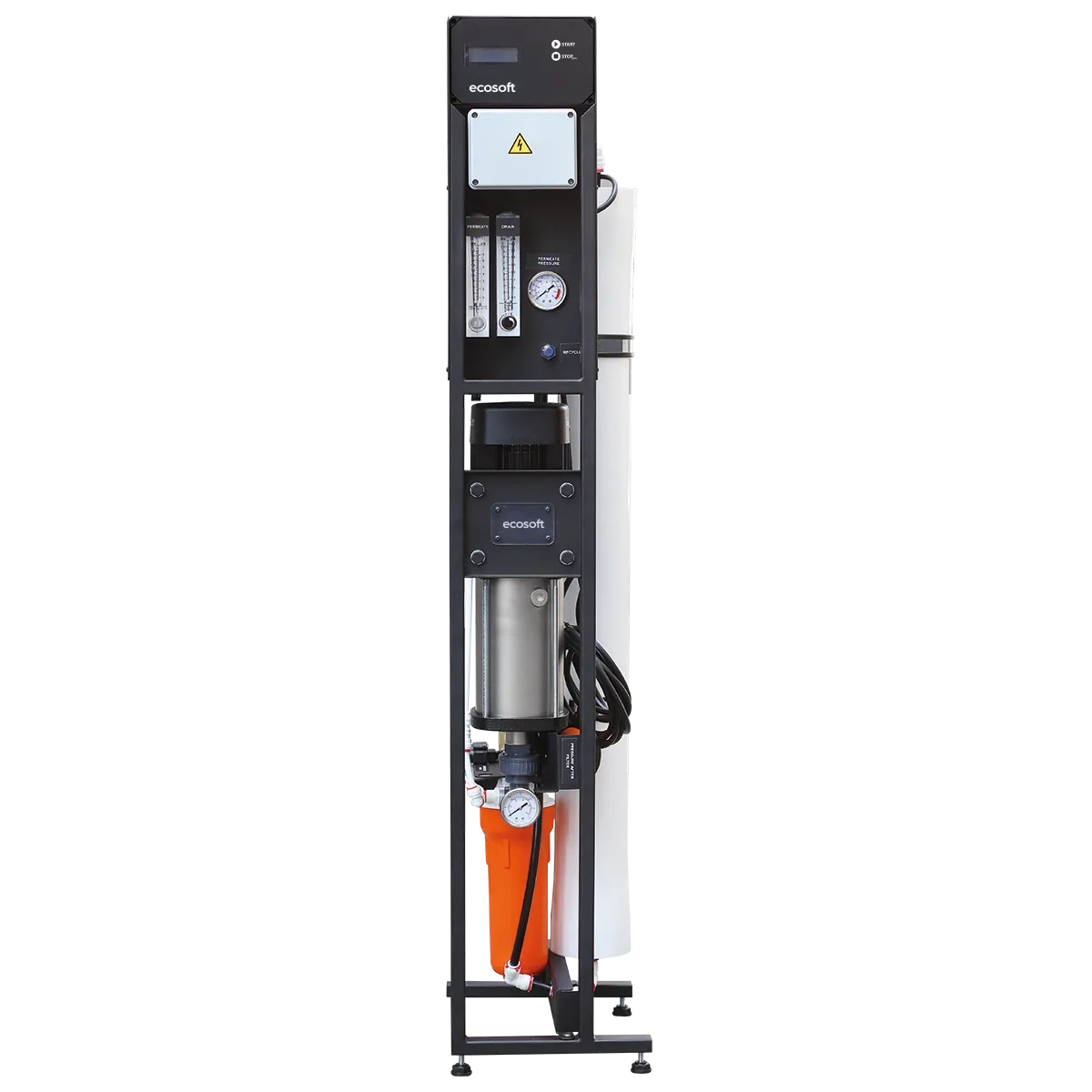

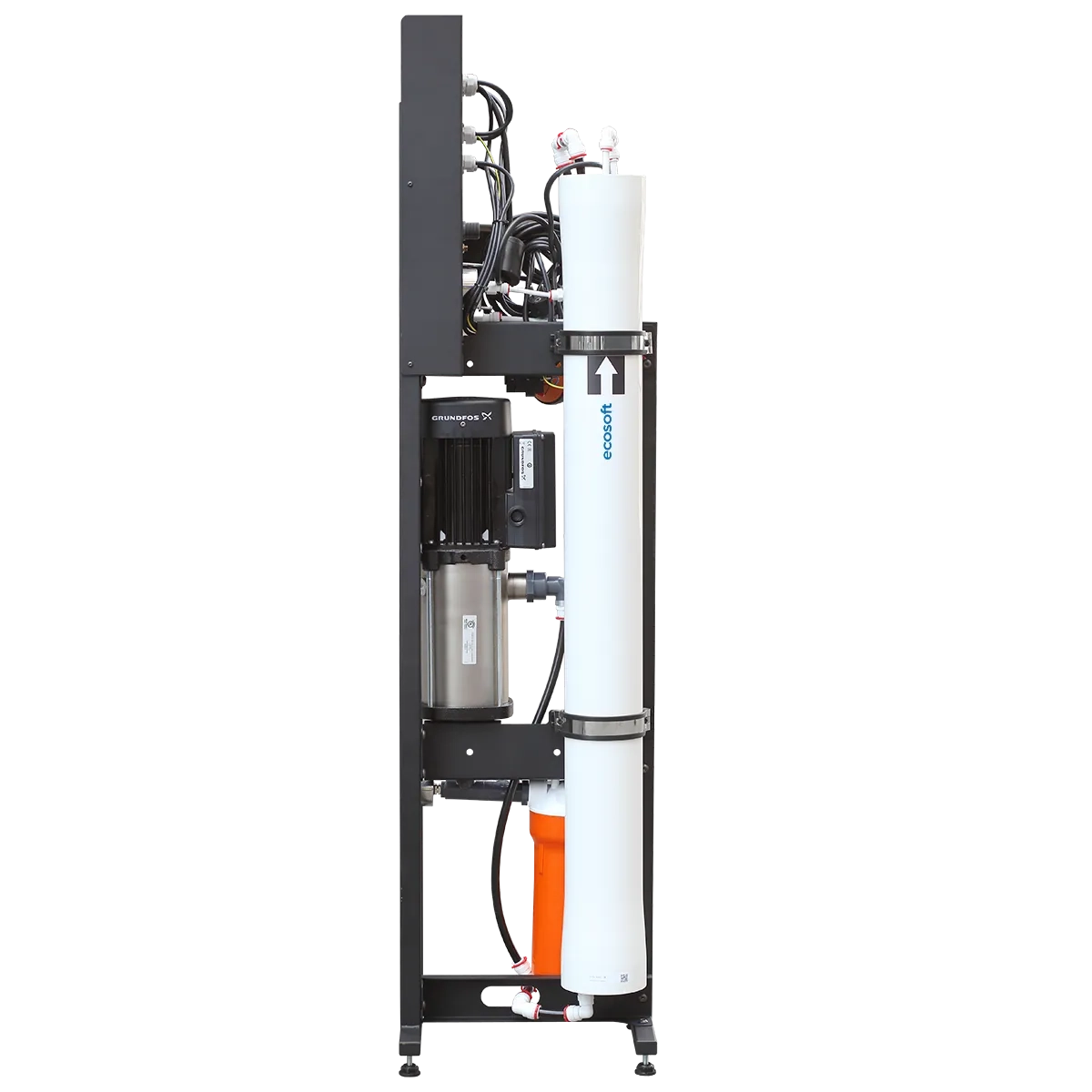

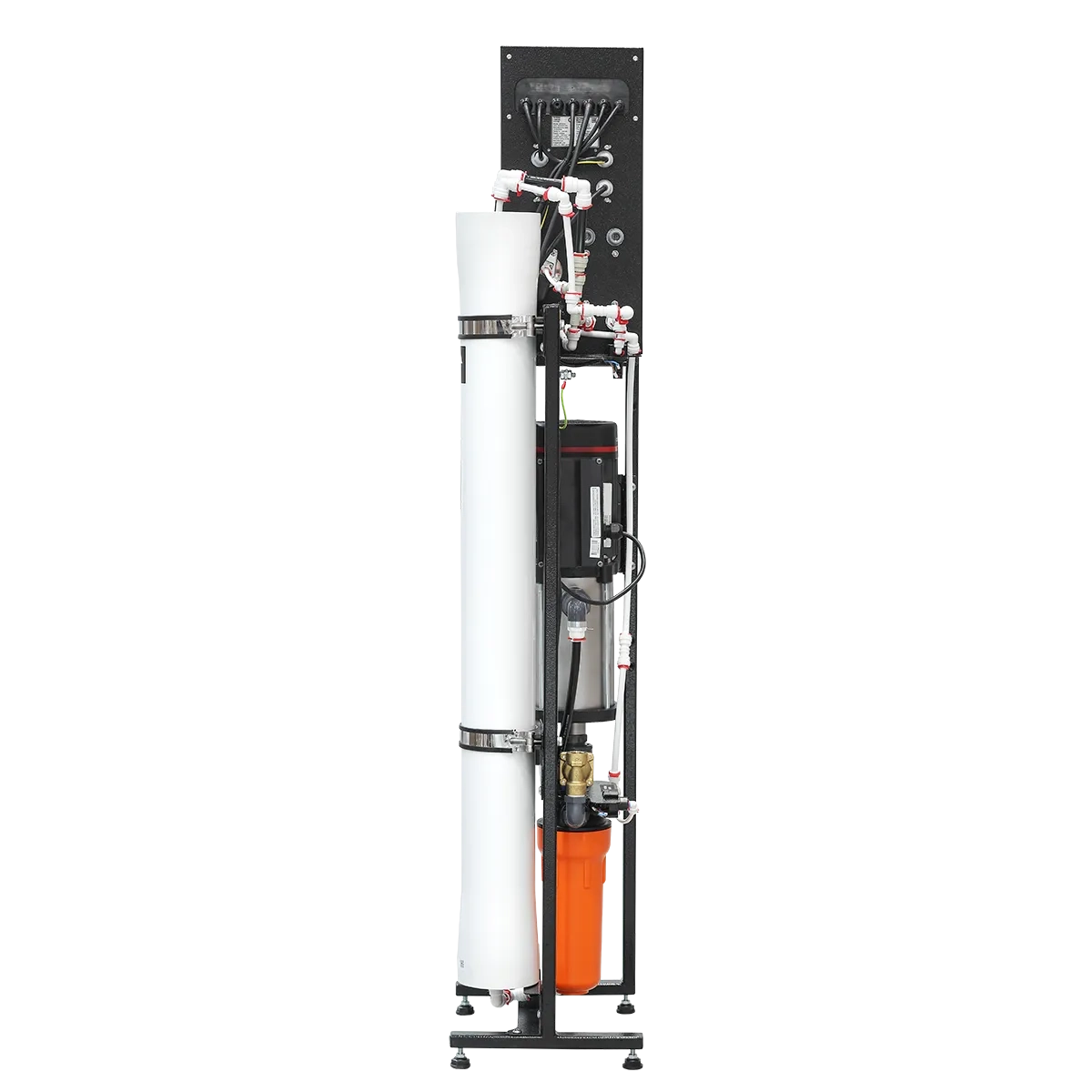

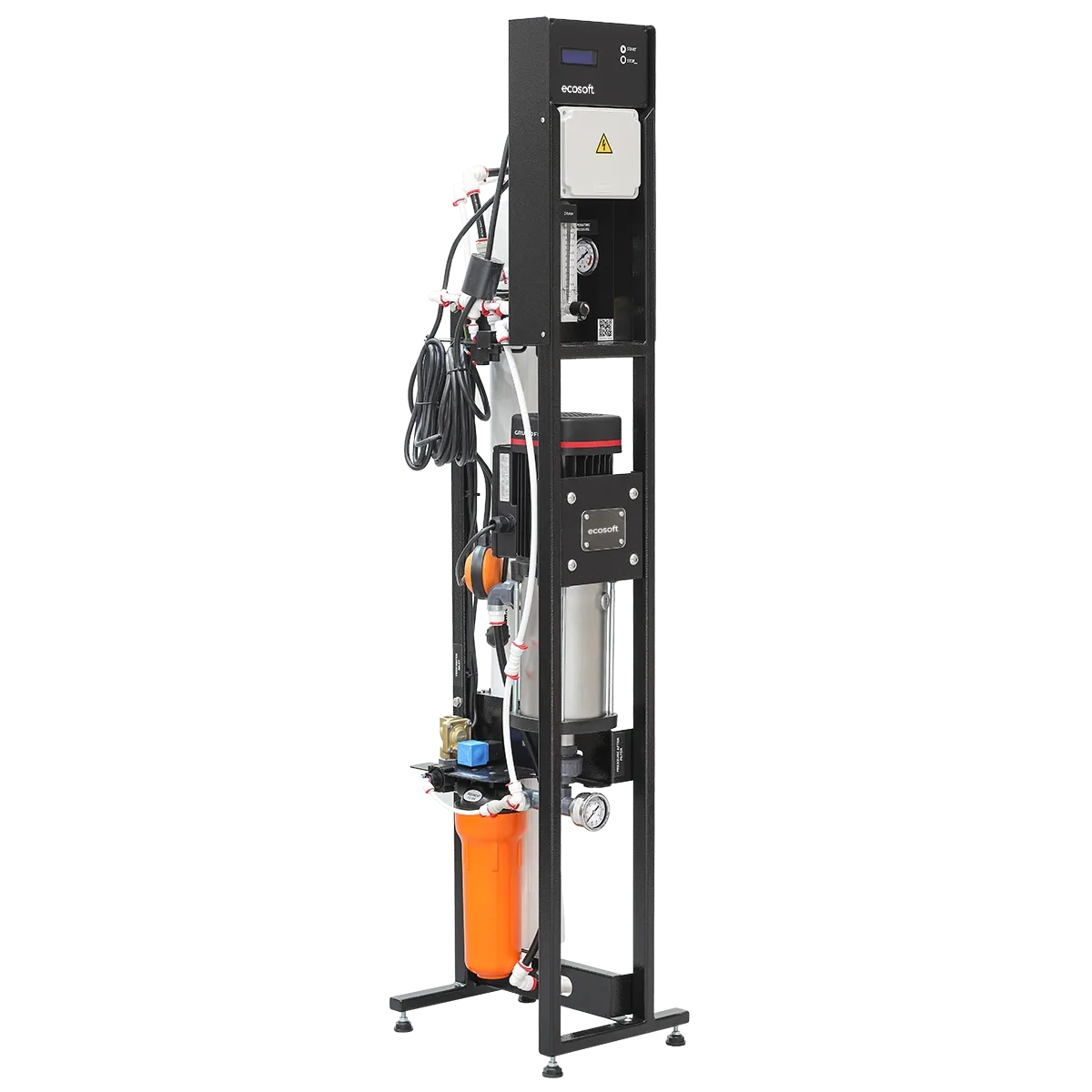

Ecosoft MO5000 4" RO System
Available on order
Delivery time: 2-5 working days
The Ecosoft MO5000TP5 is an ultra-compact commercial reverse osmosis system that delivers up to 6.000 liters of purified water per day. Equipped with the OC5000 controller, it ensures stable performance and is perfect for compact utility rooms, laboratories, or small-scale food services.
- Capacity: 6000 liters per day
- OC5000 controller with LCD interface
- Stainless steel frame and membrane rack
- Compact design for tight installations
- Grundfos pump included for stable flow
Equipment*

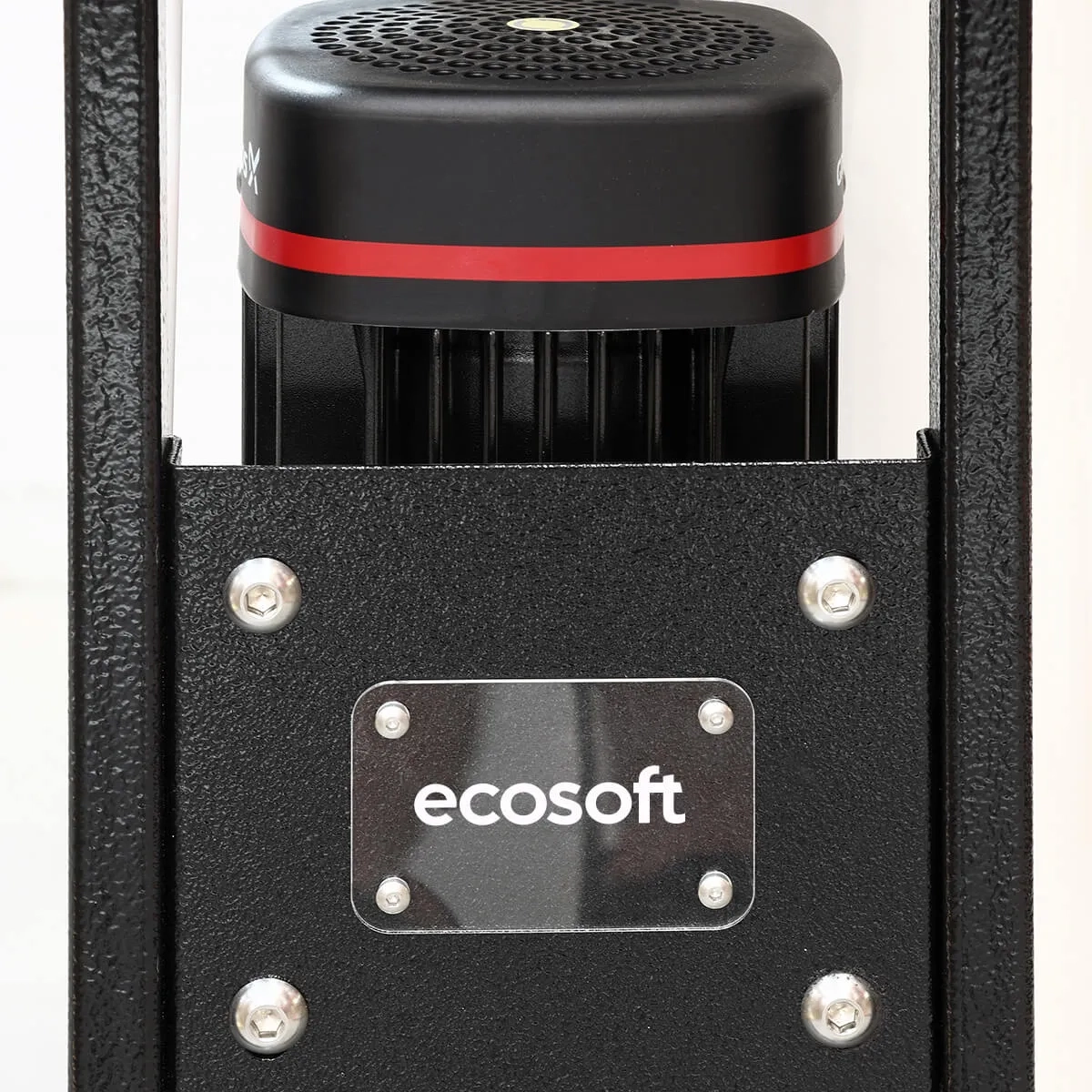

- Grundfos® CM 1-10 pump
- 300 psi membrane vessel

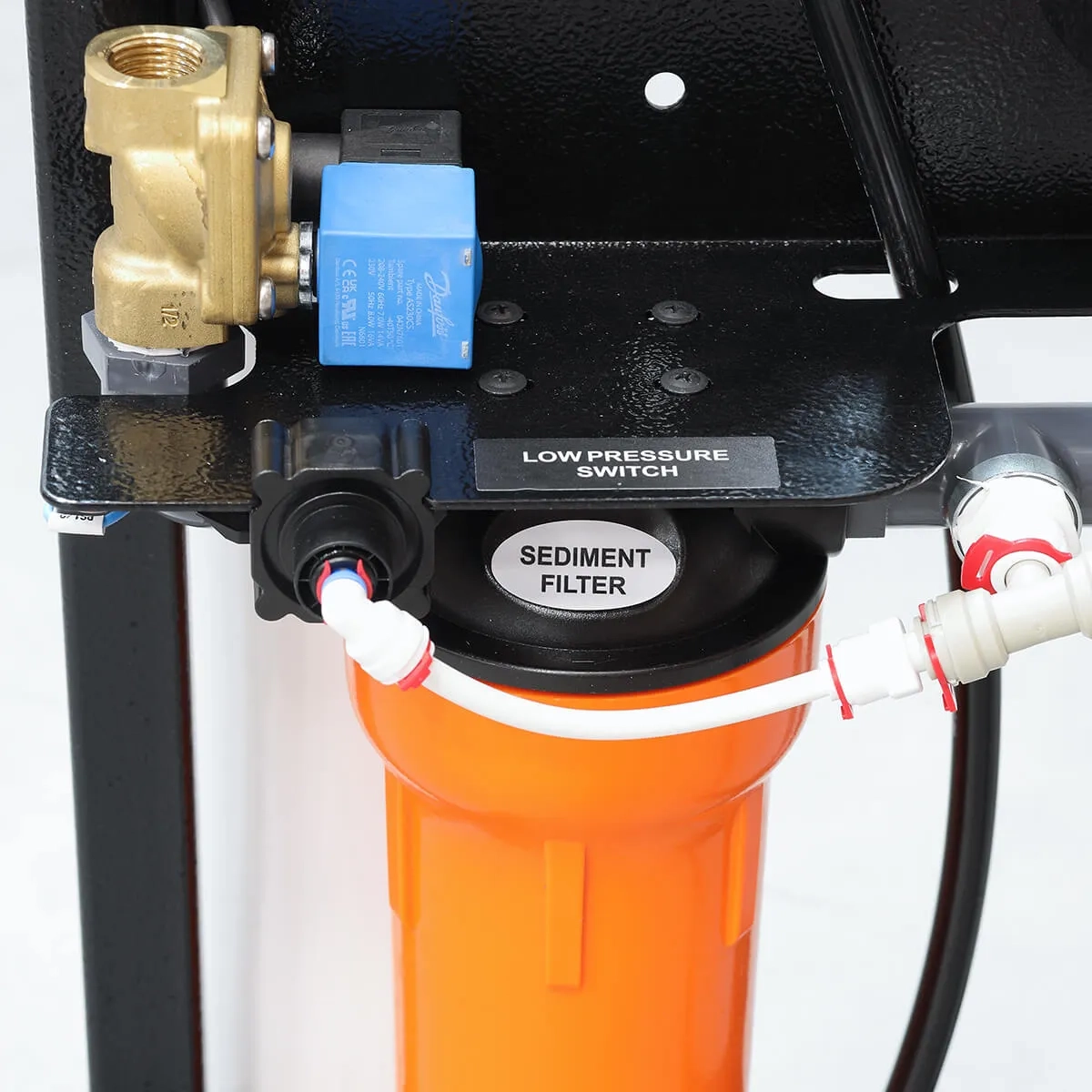

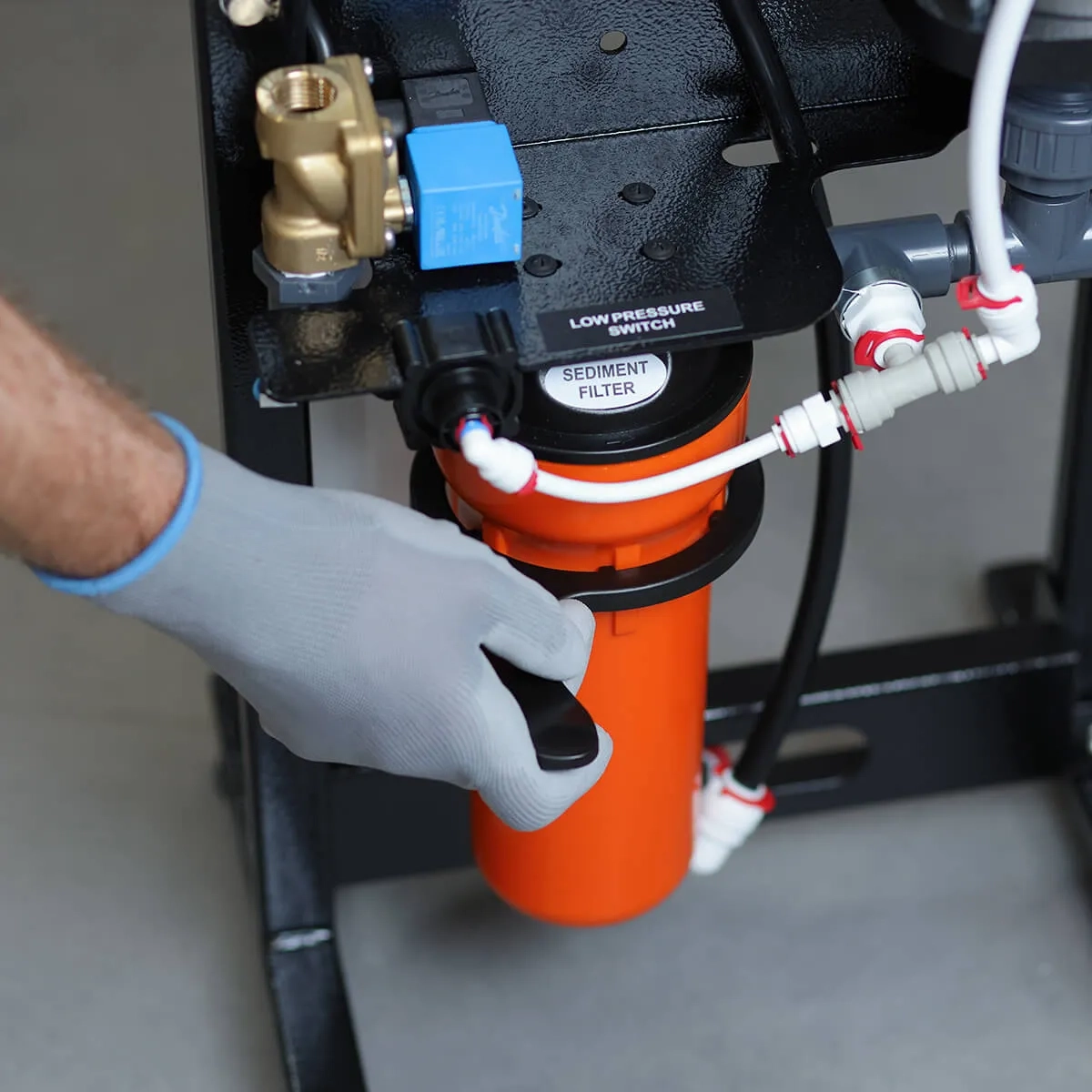

- 2.5 × 10″ sediment prefilter
- Electrical panel with Ecosoft controller

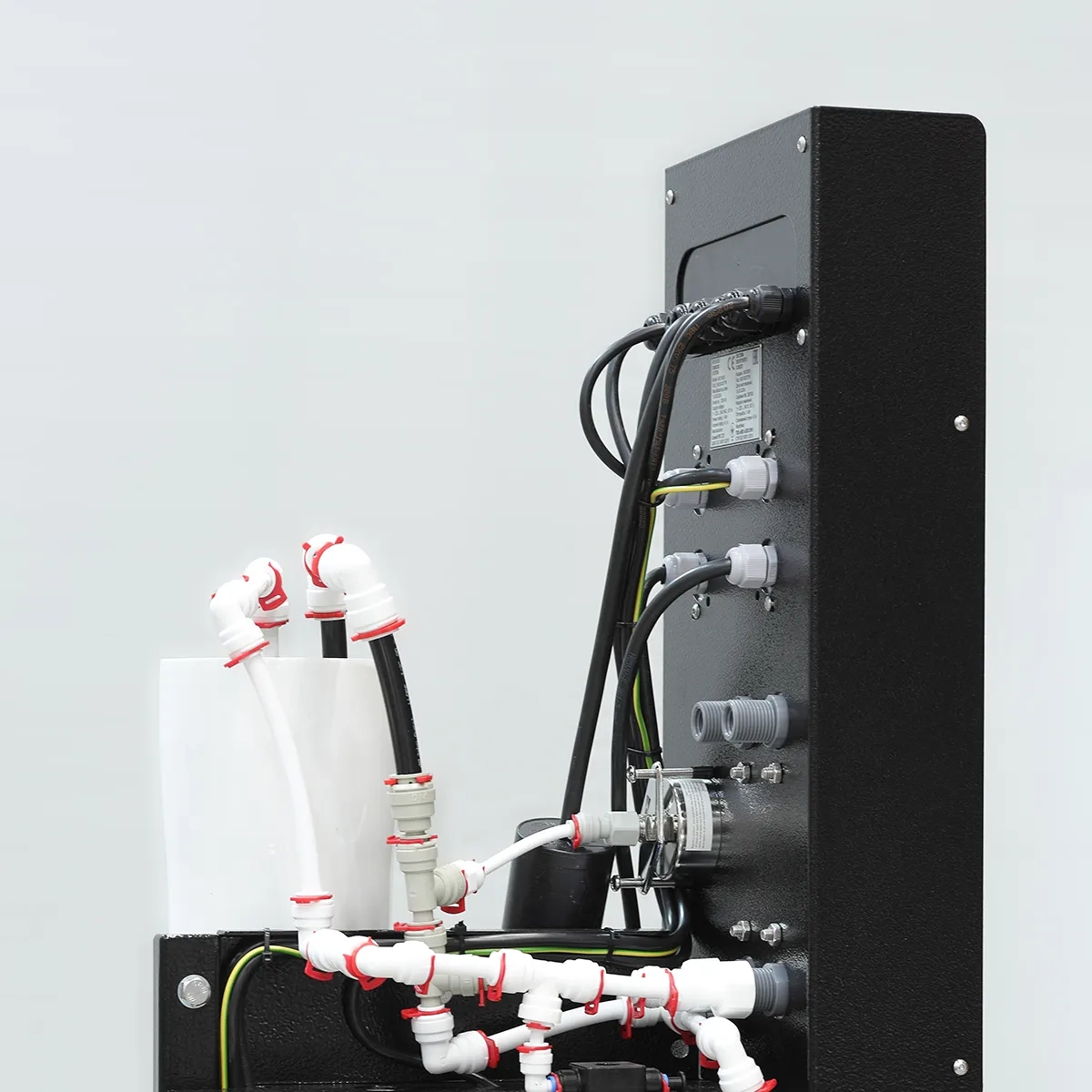

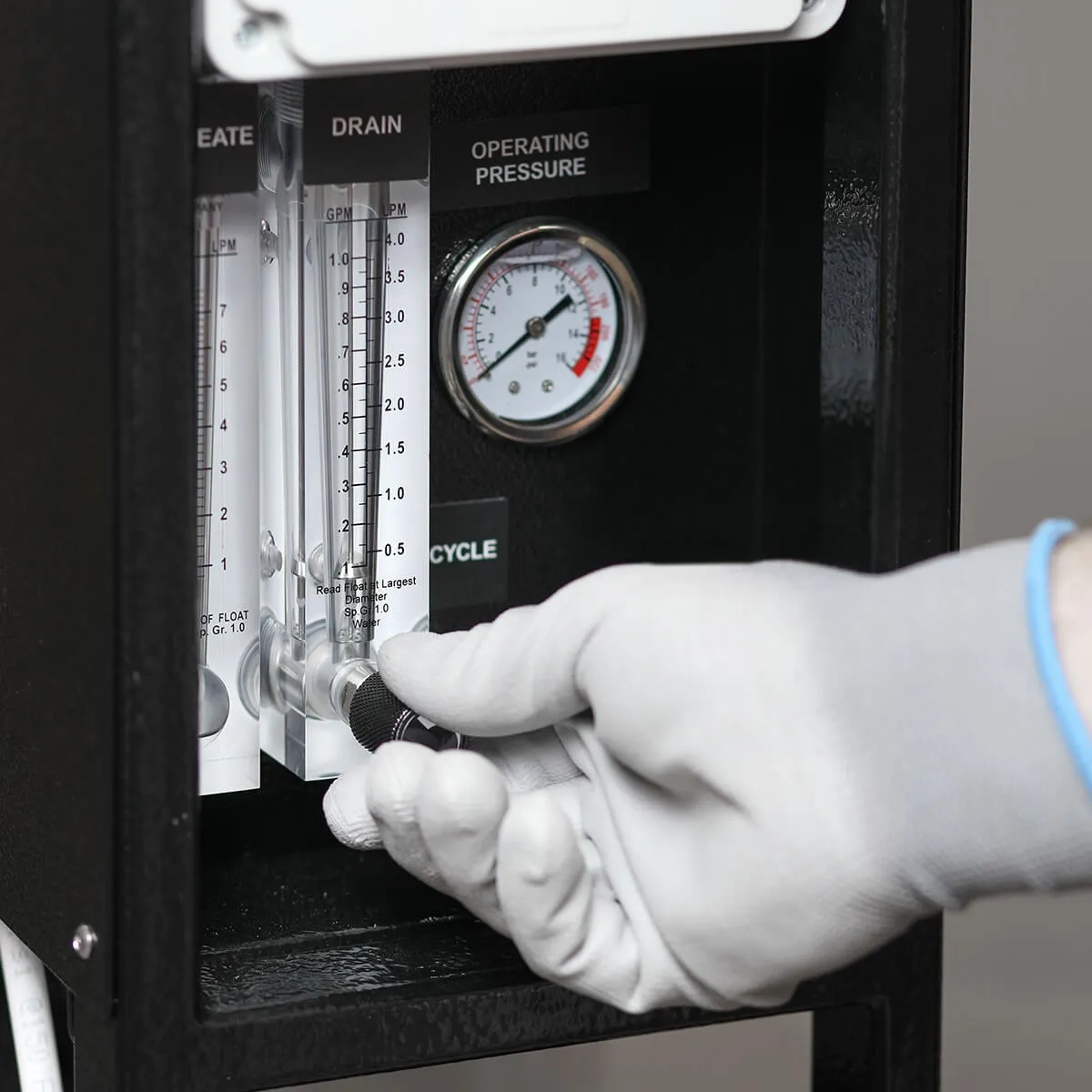

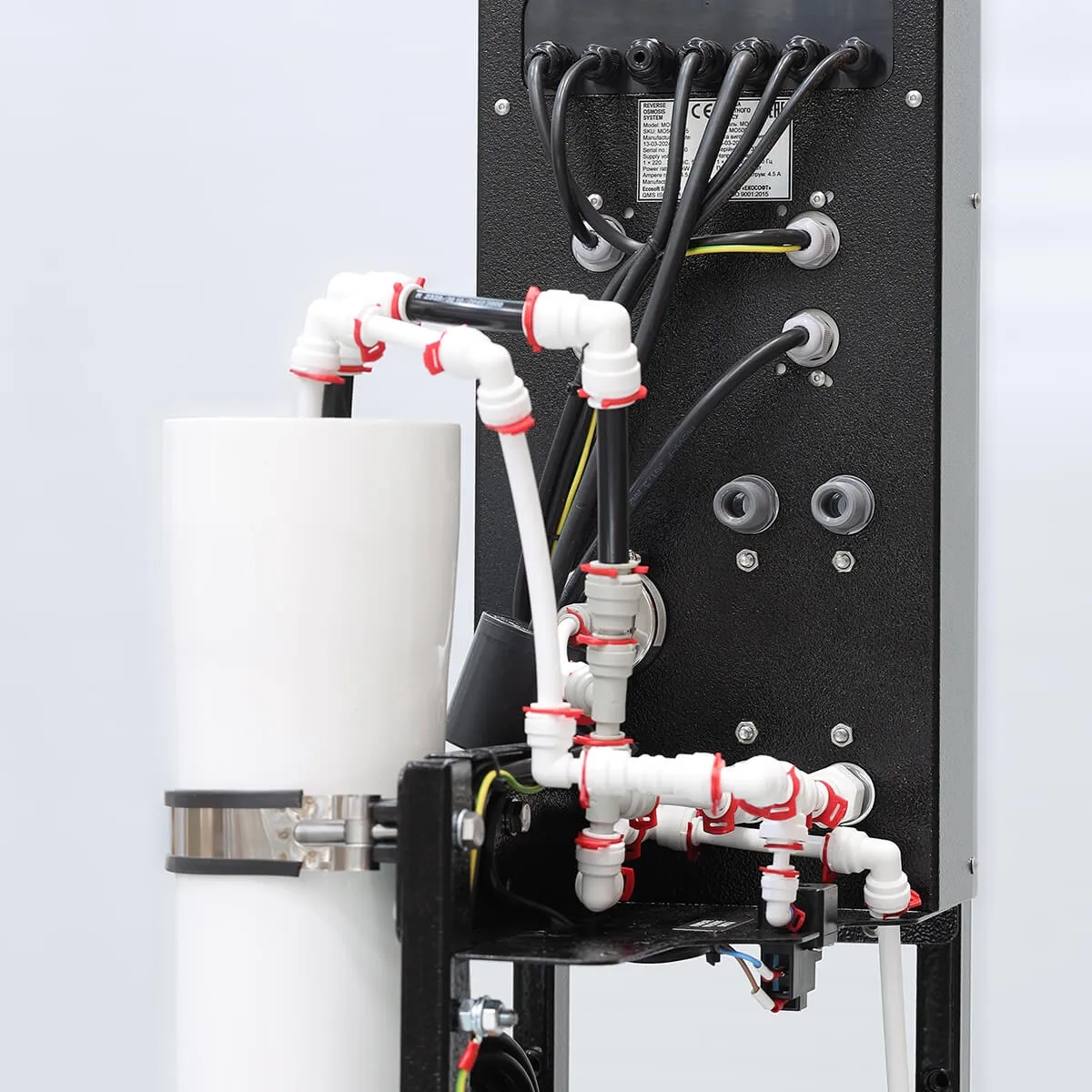

- Piping, instrumentation
- Steel frame

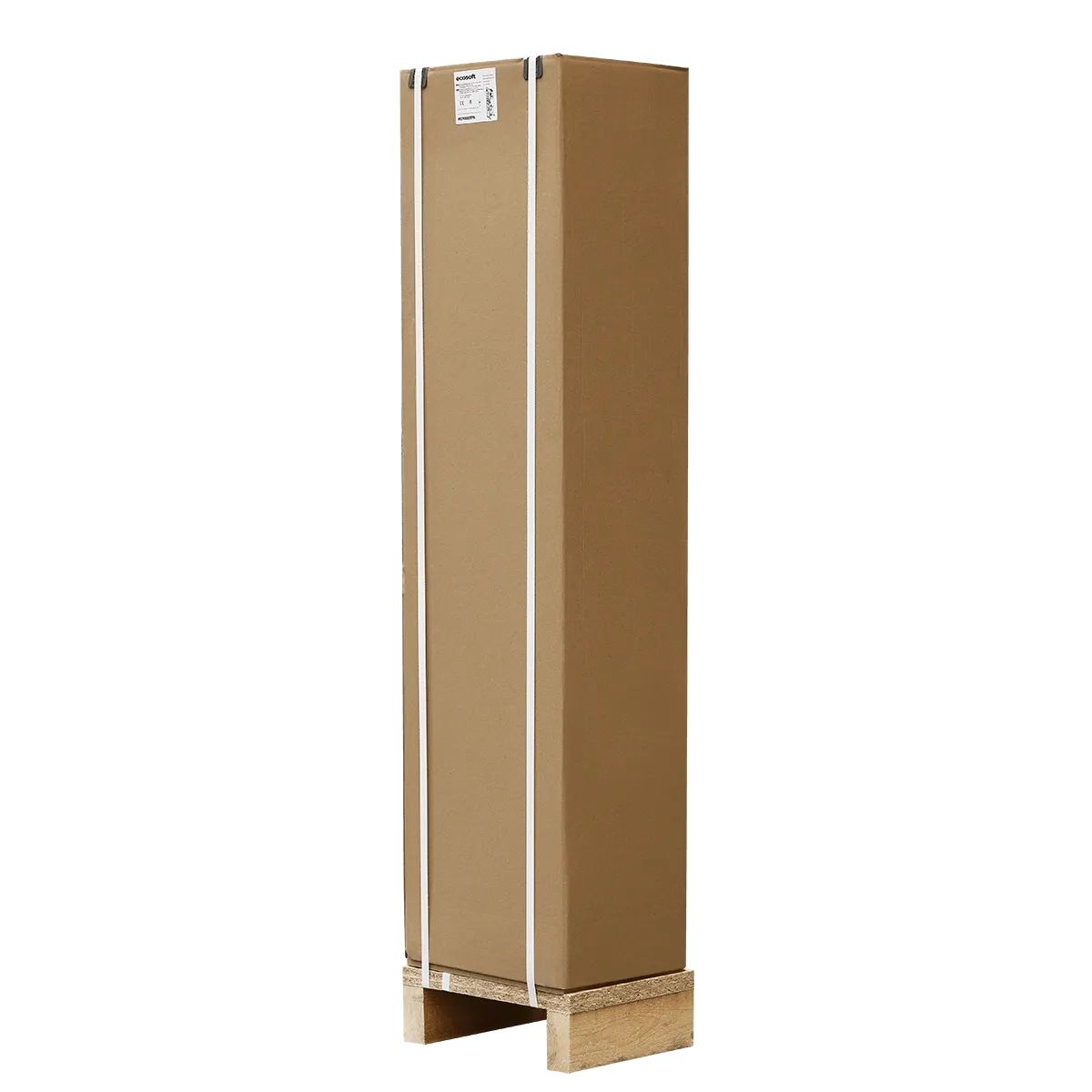

- Wooden crate
* Сonductivity sensor is not included to the system's components.
Options
- Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
Connections:
- influent water: ½"
- permeate: ½"
- concentrate: ½"

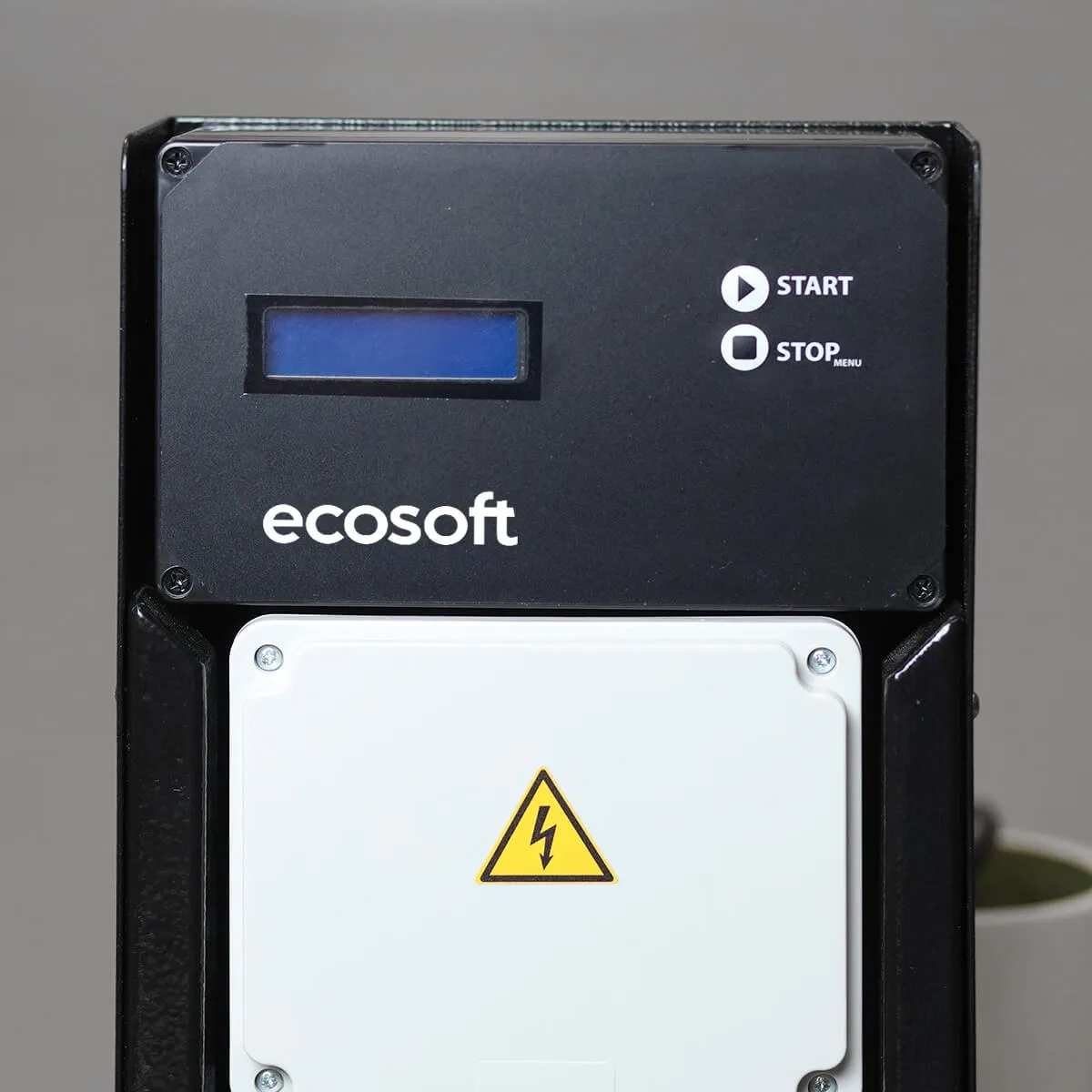

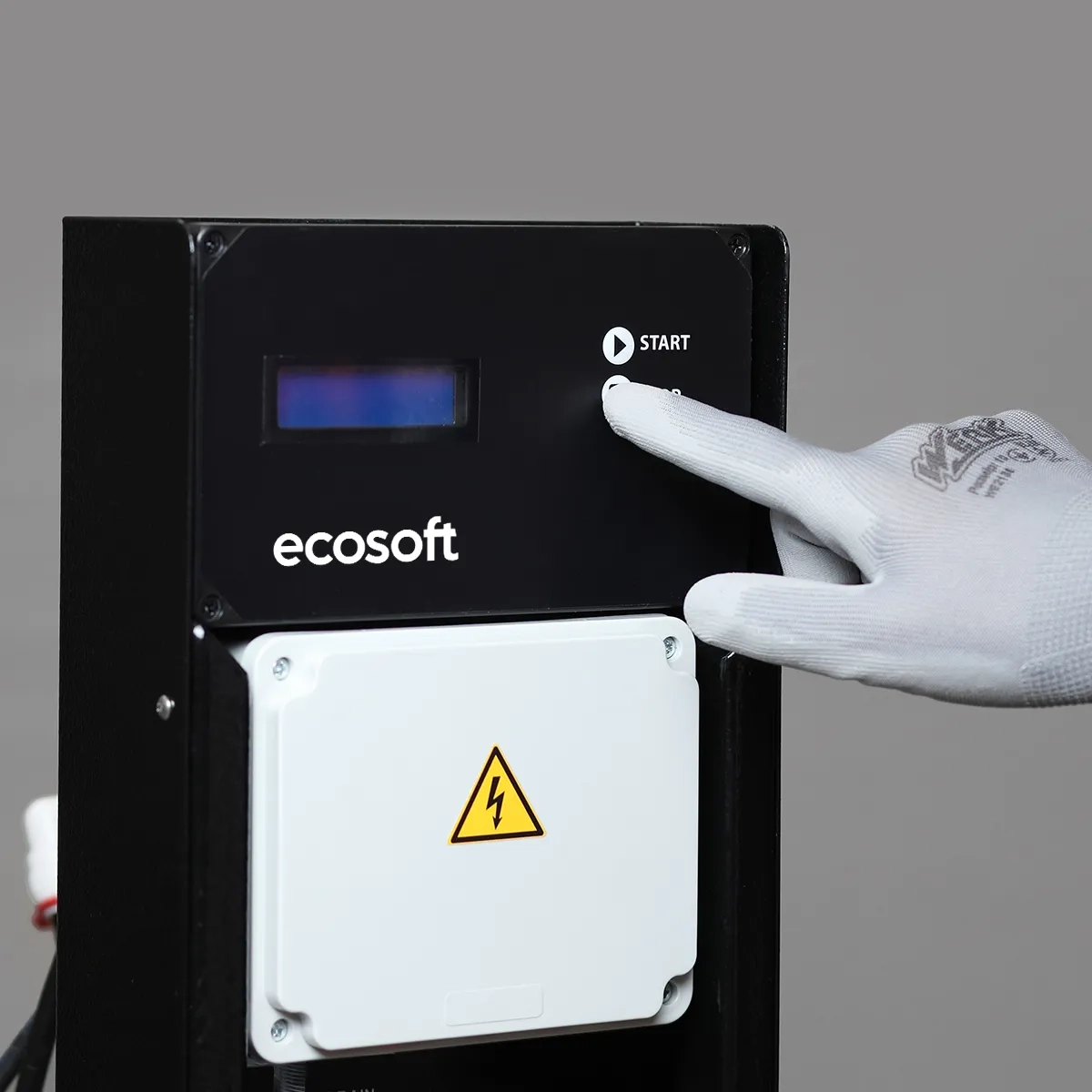

OC5000 controller
The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:
- automatic switching on and off of the equipment upon signal;
- emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
- shutdown of equipment on the external STOP signal.
Applications
- Steam boilers
- Heating and cooling circuits
- Breweries and beverage production
- Livestock and poultry farms
- Glazing factories
- Laundry and car wash
Parameter | Specification |
Permeate capacity** | 250 L/h |
Permeate recovery*** | 75% |
Maximum TDS | 3000 mg/L |
Influent flow demand | 320...400 L/h (service) |
Operation pressure | 8...12 bar |
Maximum pressure | 14 bar |
Electrical requirements | 230 V, 50 Hz (1 ph) |
Electrical power | 0.7 kW |
Prefilter rating | 5 µm |
** depends on feed water TDS, temperature, and permeate recovery
*** for low scaling/fouling water

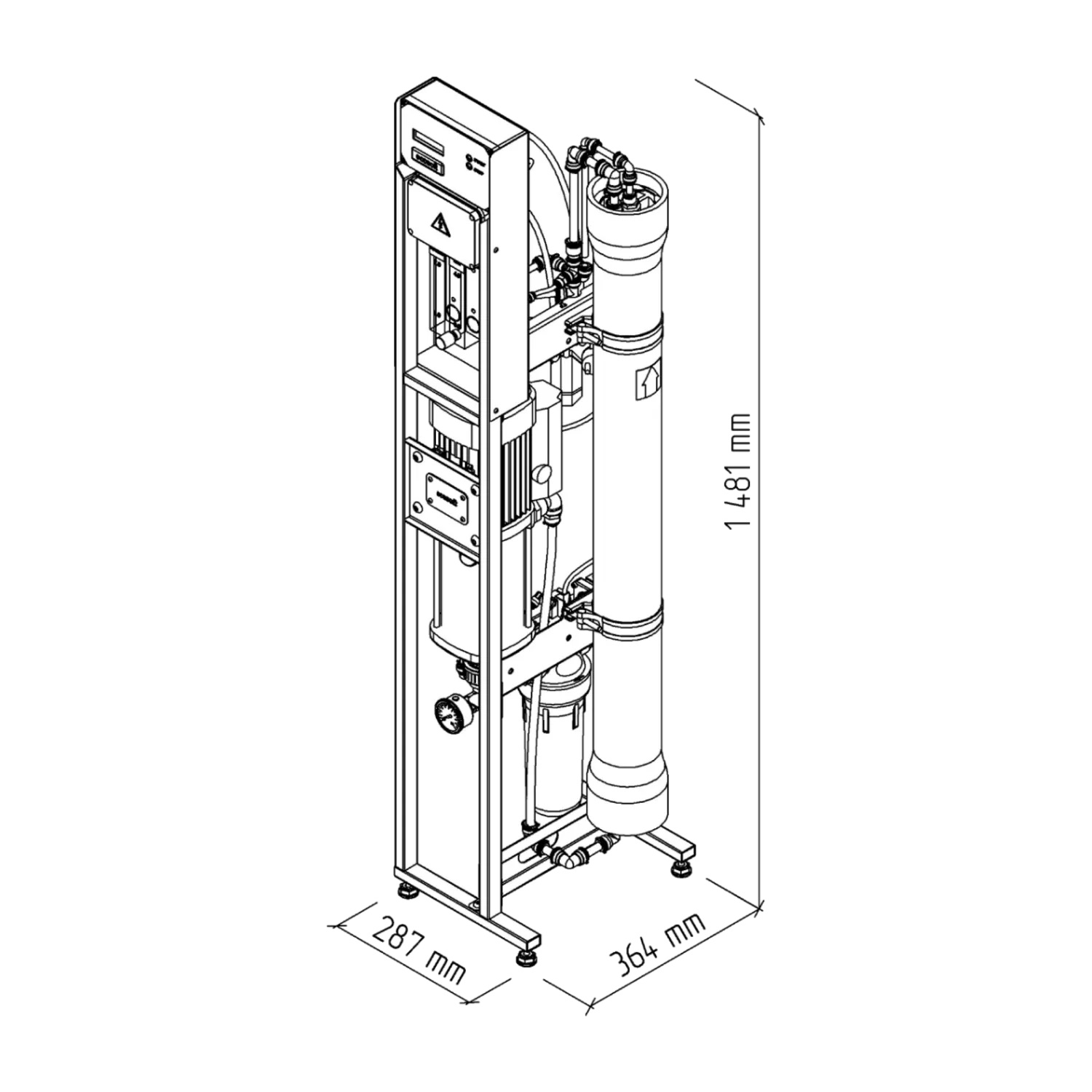

| Width (cm) | Height (cm) | Length (cm) | Weight (kg) |
|---|---|---|---|
| 28.7 | 36.4 | 148.1 | 50 |
By clicking on the following links, you can view and download:
Manual for Ecosoft MO5000 4" RO System
